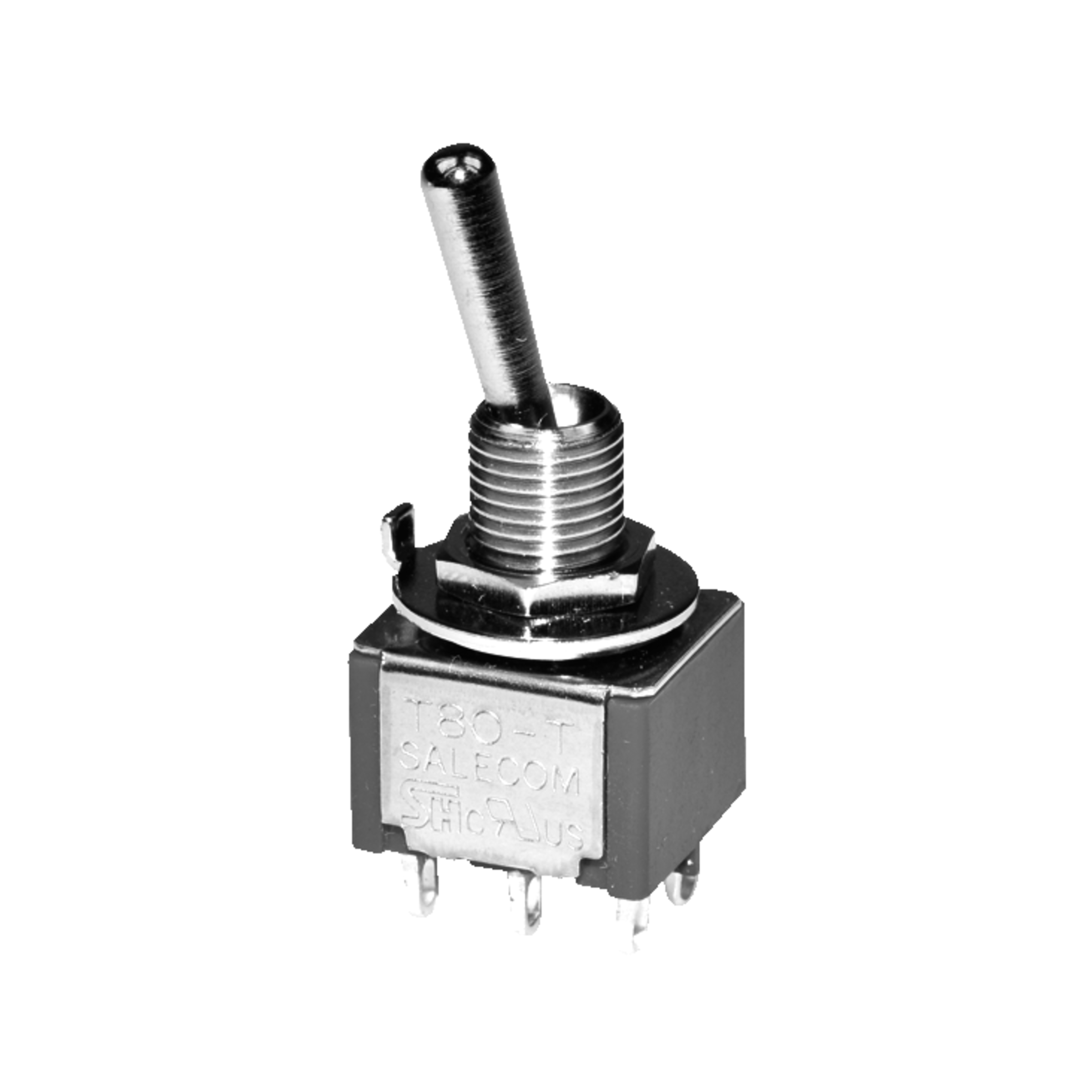

T8011-SECQ-E-H
Salecom T80-T Toggle Switches 2xCO Rocker arm silver 125VAC 5A Ø6,35mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.410 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Toggle Switches
- Series
- T80-T
- Body colour
- black
- contacts
- 2xCO
- Type of actuator
- Rocker arm
- Function
- 2xCO
- Actuator colour
- silver
- Diameter
- 6.86 mm
- illumination
- unlit
- Operating voltage AC
- 125 V AC
- Switching current, max.
- 5 A
- Panel cut out
- Ø6,35mm
- Operating voltage DC
- 28 V DC
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
- Approvals
- UL
- RoHS-Conform
Specifications
Open all

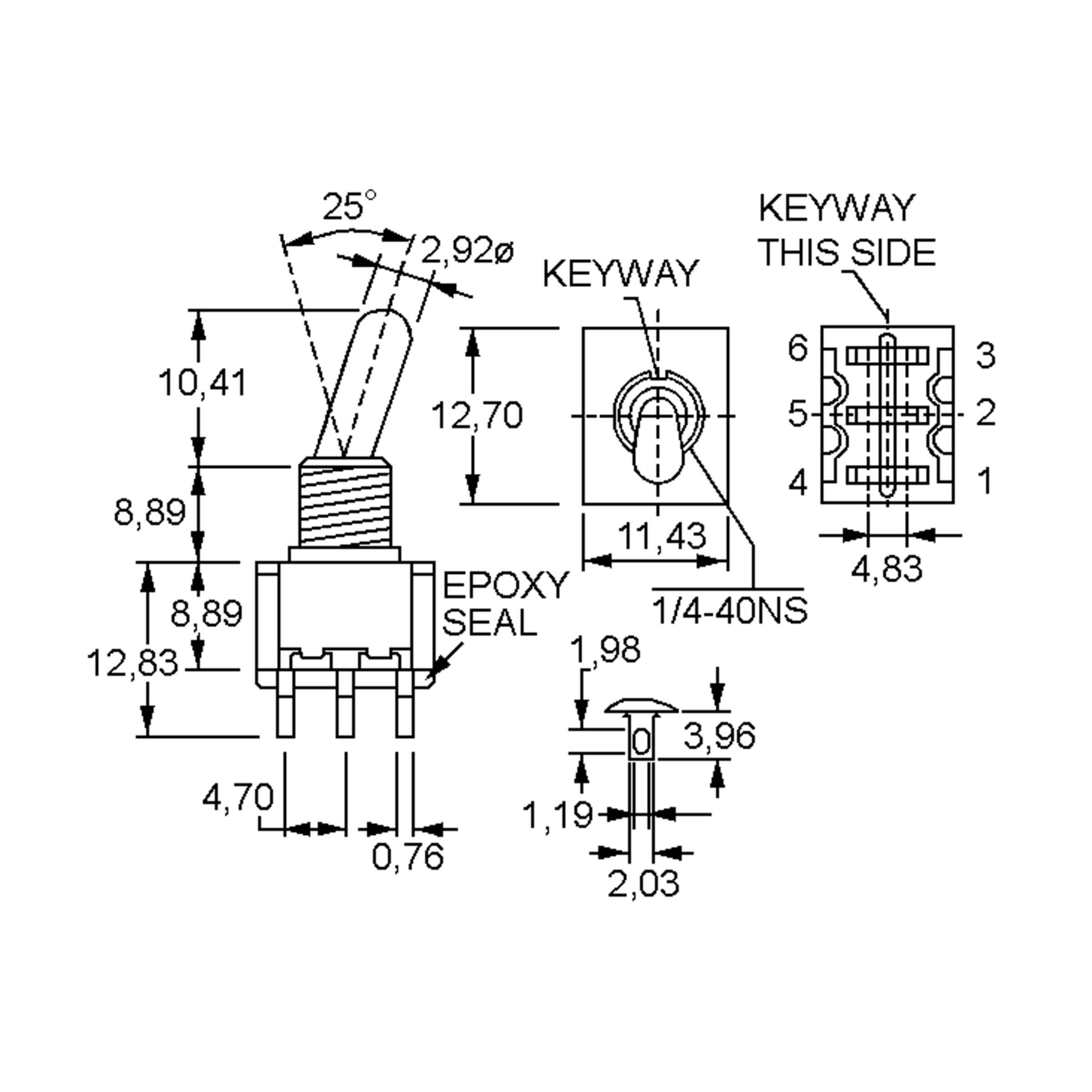

Dimensions and weights
- Dimension: Length
- 12.7 mm
- Dimension: Width
- 11.43 mm
- Diameter
- 6.86 mm
- Panel cut out
- Ø6,35mm
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Operating voltage DC
- 28 V DC
- Operating voltage AC
- 125 V AC
- Dielectric Strength
- 1.500 Veff
- Mechanical service life
- 5 x 10^4 Betätigungen
- Switching current, max.
- 5 A
- Contact resistance
- 10 mOhm
- Insulation resistance, min.
- 1,000 MOhm
- Material: Body
- Diallyl phthalate (DAP)
- Material: Actuator
- Brass, chrome plated
- Material: Terminals
- Brass, silver plated
Mechanical properties
- Connection
- Soldering eye
Safety/Certifications
- Approvals
- UL
