R-18-23A-6-H

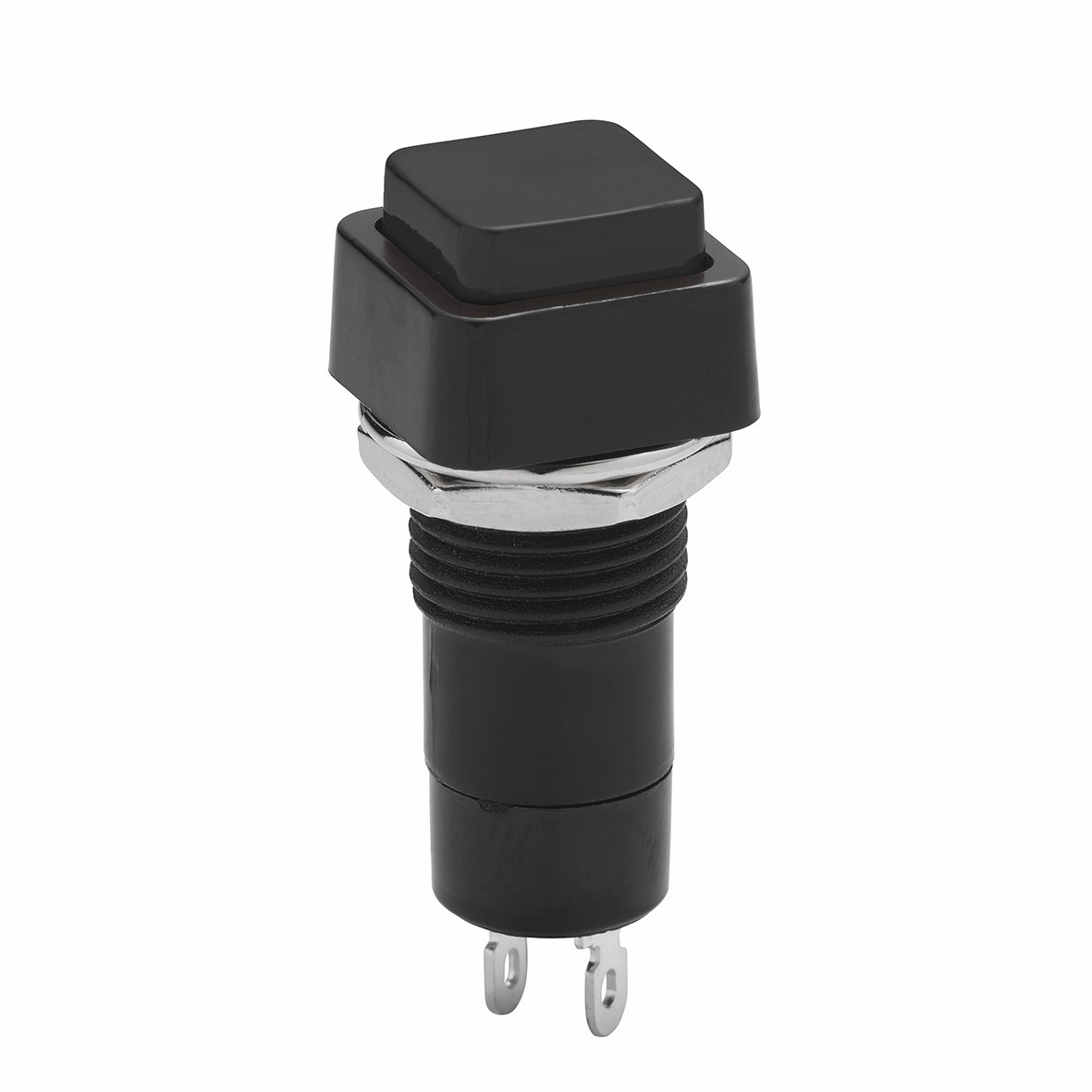

Salecom Pushbutton switch R-18-23A 1x0-E Soldering eye black 125VAC 3A unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.325 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pushbutton switch
- Series
- R-18-23A
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Push button
- Function
- 1x0-E
- Actuator colour
- green
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 3 A
- Panel cut out
- Ø12mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Panel cut out
- Ø12mm
Technical features
- Switching voltage
- 125 V AC
- Test voltage
- 1.500 V AC, 1min.
- Mechanical service life
- 10^5 Betätigungen
- Service life, electrical
- 5 x 10^4 Betätigungen
- Switching current, max.
- 3 A
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 100 MOhm
Mechanical properties
- Connection
- Soldering eye
- Number of poles
- 1
