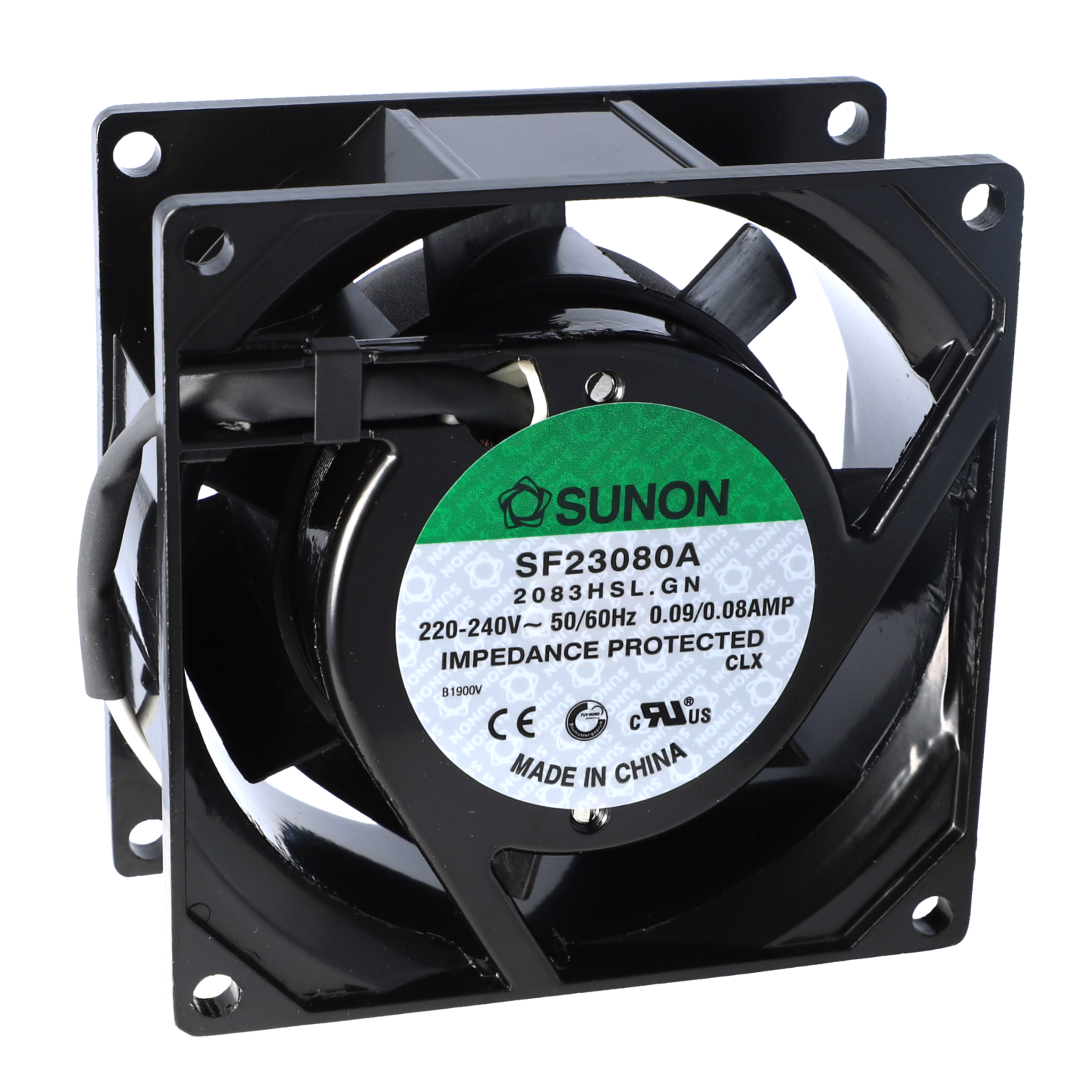

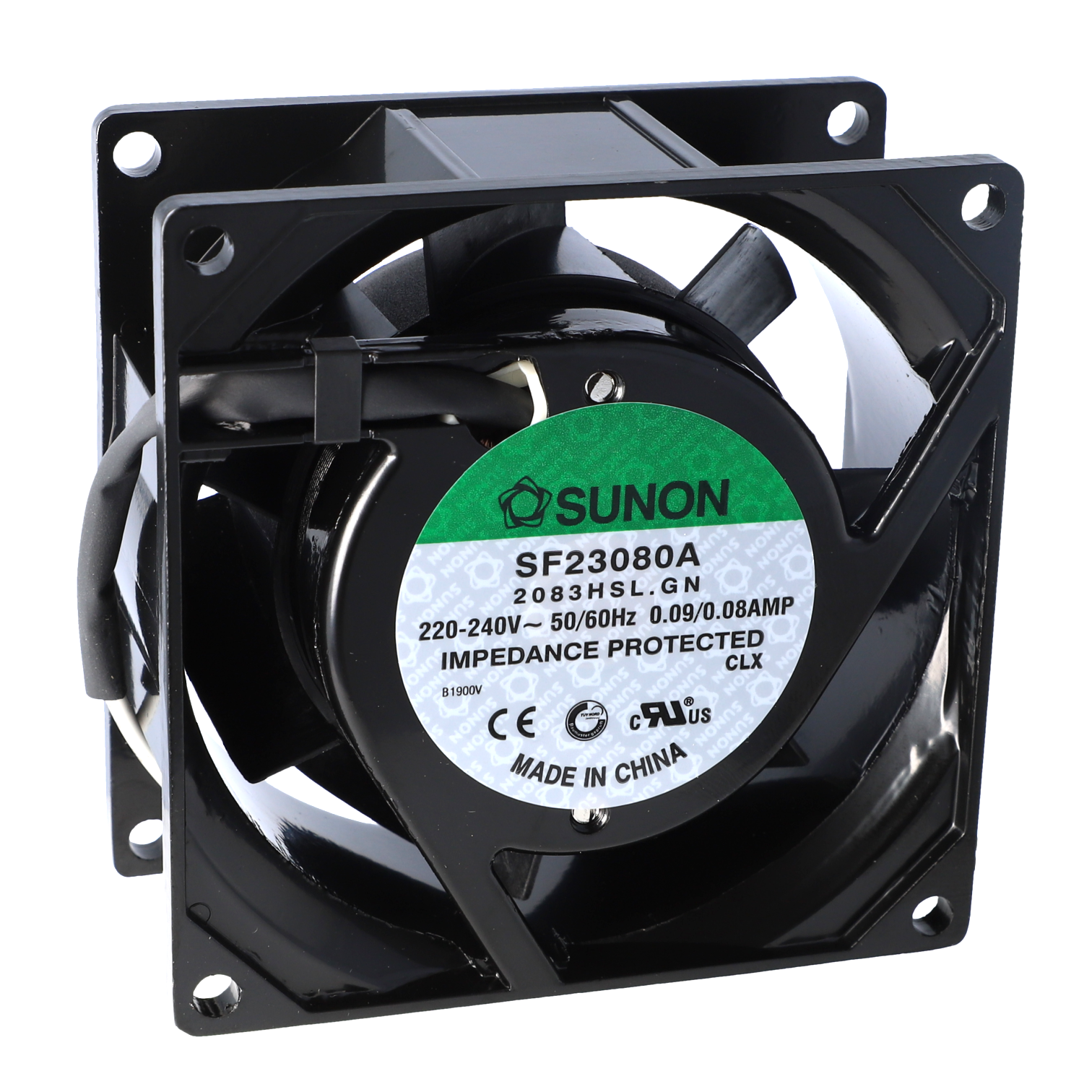

SF23080A-2083HBL.GN
SUNON AC fan 230VAC 80mm 38mm Ball Bearing Strand, AWG24, UL3266, 30cm, stripped, tinned 40,78m³/h
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
409 Pcs. in stock
Next Stock Receipt
Week 49/2024
2.600 Pcs.
2.600 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Axial
- Rated Voltage
- 230 VAC
- Dimension: Height
- 80 mm
- Dimension: Depth
- 38 mm
- Bearing type
- Ball Bearing
- Air Flow (Rate)
- 40.78 m³/h
- Noise
- 32 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -10 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 40.78 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, 65% humidity, 90% CL
- Noise
- 32 dBA
- Speed RPM
- 2,400 U/min
- Static pressure [inch-H₂O]
- 0.13 inch-H₂O
- Static pressure [mm/H₂O]
- 0.33 mm/H₂O
- 0.33 mm/H₂O
- Static pressure [Pa]
- 32.37 Pa
- 32.37 Pa
Electrical properties
- Rated Voltage
- 230 VAC
- Rated current
- 0.07 A
- Operating voltage range from
- 185 VAC
- Operating voltage range up to
- 245 VAC
- Starting voltage
- 185 VAC
- Power consumption
- 14 W
- Dielectric strength
- 1500V AC for 1s
Mechanical properties
- Drive
- Shaded-Pole Motor Impedence Protected
- Housing material
- Aluminium Spray Cast
- Impeller material
- Filled Thermoplastic PBT (UL94V-0)
- Bearing type
- Ball Bearing
- Air flow direction
- Air flow in the direction of the label
- Termination Style
- Strand, AWG24, UL3266, 30cm, stripped, tinned
Safety/Certifications
- Insulation resistance at 500V DC
- 500 MOhm
- Approvals
- CE
- CUR
- TÜV
- UL
