SERIES-10-16FT-MB

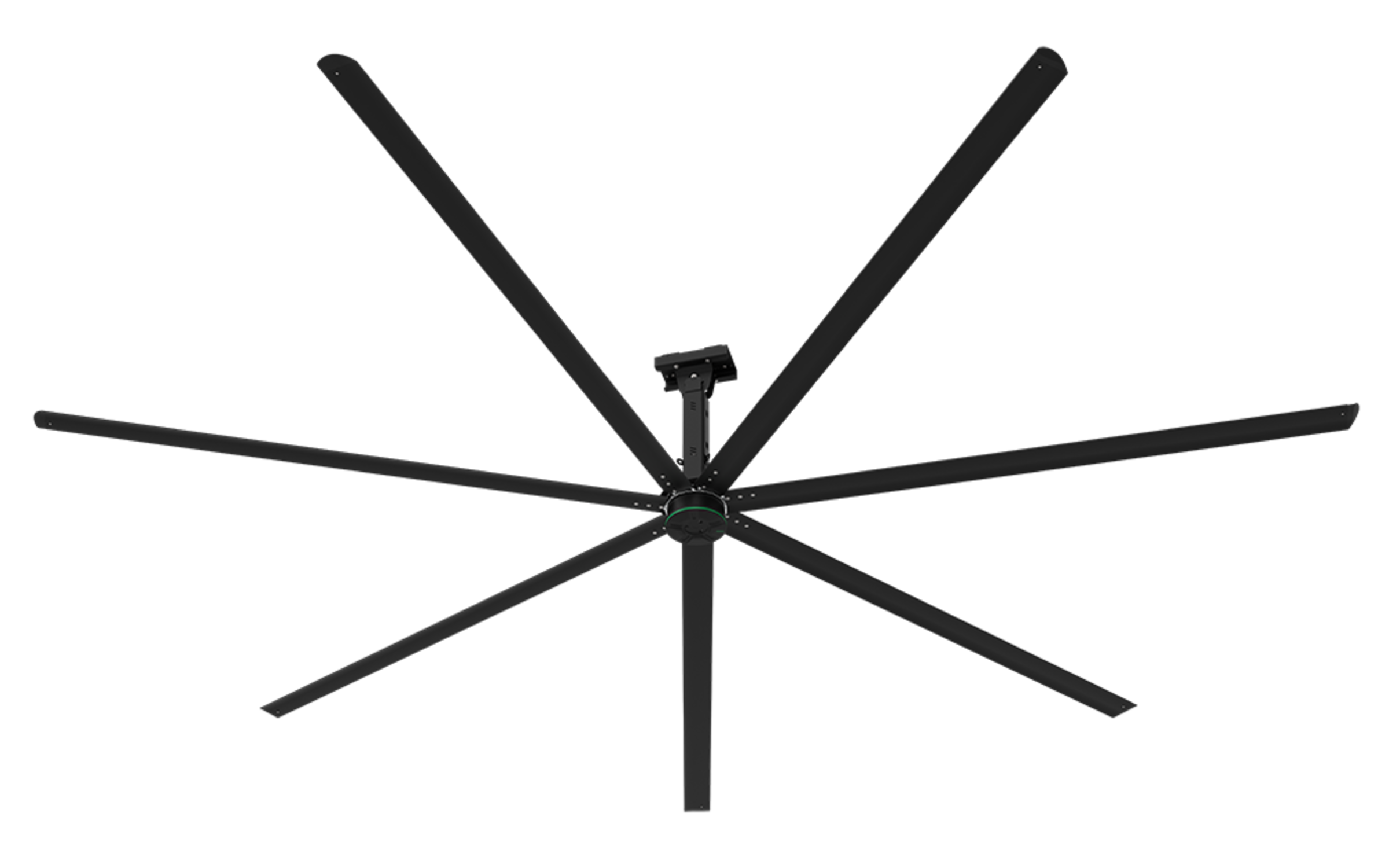

SUNON HVLS Serie 10 Ceiling fan 230VAC 1.100W 5.000 mm 1600m² 50dBA Modbus connection box 99.360g
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- HVLS Serie 10
- Type
- Ceiling fan
- Rated Voltage
- 230VAC
- Power consumption
- 1,100 W
- Steuerung
- Modbus connection box
- Diameter
- 5,000 mm
- Wirkbereich
- 1600 m²
- Noise
- 50 dBA
- Weight
- 99,360 g
- RoHS-Conform
Specifications
Open all
Operating conditions
- Diameter
- 5,000 mm
Performance features
- Noise
- 50 dBA
- Wirkbereich
- 1600 m²
- Speed RPM
- 90 U/min
Electrical properties
- Rated Voltage
- 230VAC
- Rated current
- 8 A
- Operating voltage range from
- 220 VAC
- Maximum Operating Voltage
- 240 VAC
- Starting voltage
- 220 VAC
- Power consumption
- 1,100 W
Mechanical properties
- Abstand Fuß (Sockel) bis Unterkante Flügel
- 1,000 mm
- Maße Befestigungsplatte (AxB)
- 450x250 mm
Documents
2023-10-23 HVLS catalogue A4 version.pdf
