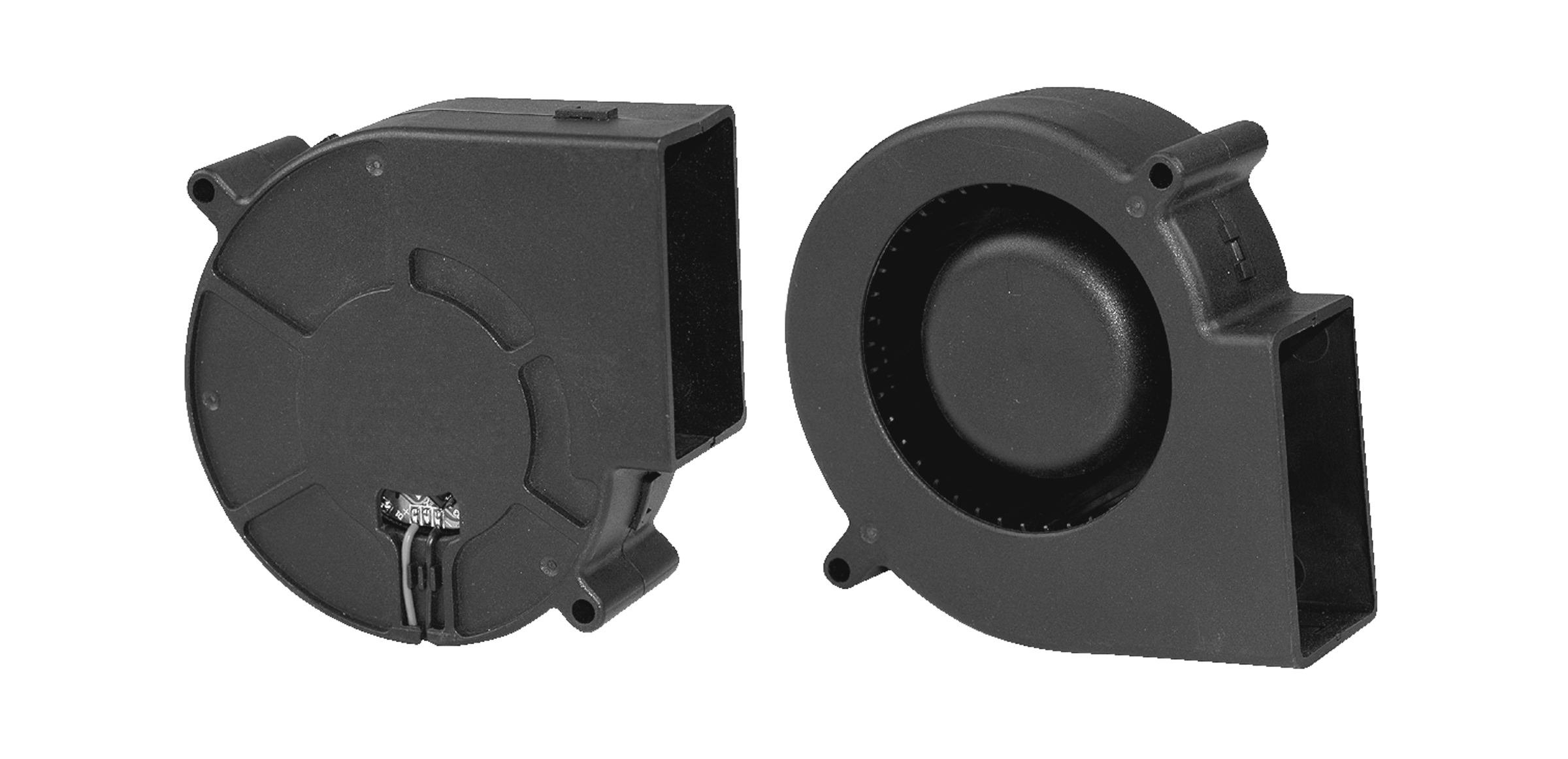

PMB1297PYB2-A(2).GN
SUNON PMB Radial DC fan 12 VDC 94mm x 33mm Ball Bearing 45,18m³/h 53,1dBA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
200 Pcs.
200 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Radial
- Rated Voltage
- 12 VDC
- Dimension: Height
- 94 mm
- Dimension: Depth
- 33 mm
- Bearing type
- Ball Bearing
- Air Flow (Rate)
- 45.18 m³/h
- Noise
- 53.1 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -10 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 45.18 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, 65% humidity, 90% CL
- Noise
- 53.1 dBA
- Speed RPM
- 3,200 U/min
- Static pressure [inch-H₂O]
- 0.65 inch-H₂O
- Static pressure [mm/H₂O]
- 1.65 mm/H₂O
- 1.65 mm/H₂O
- Static pressure [Pa]
- 161.85 Pa
- 161.85 Pa
Electrical properties
- Rated Voltage
- 12 VDC
- Rated current
- 0.56 A
- Operating voltage range from
- 6 VDC
- Maximum Operating Voltage
- 12 VDC
- Starting voltage
- 6 VDC
- Power consumption
- 6.7 W
- Dielectric strength
- 500V AC for 1 Min.
Mechanical properties
- Drive
- DC Brushless Motor Design
- Housing material
- Filled Thermoplastic PBT (UL94V-0)
- Impeller material
- Filled Thermoplastic PBT (UL94V-0)
- Bearing type
- Ball Bearing
- Air flow direction
- Best installation direction: Fan blades facing upwards or shaft aligned horizontally
- Termination Style
- Strand AWG24, Stripped, Tinned
Safety/Certifications
- Insulation resistance at 500V DC
- 10 MOhm
- Approvals
- CE
- CUR
- TÜV
- UL
