MA2062-HVL.GN

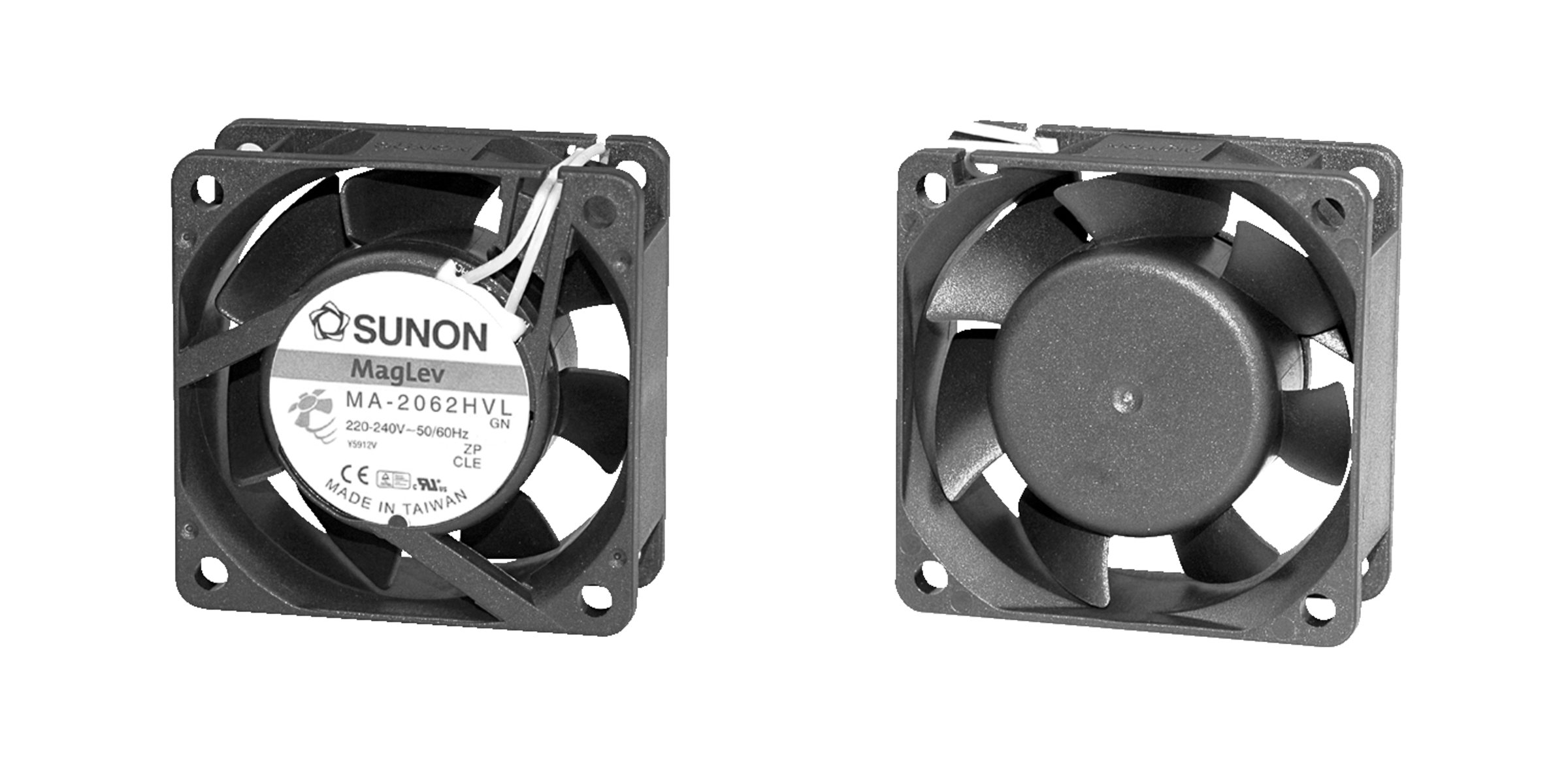

SUNON MagLev-AC Axial Fan EC 230 VAC 60mm x 25mm Vapo Bearing 29,72m³/h 30dBA
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.12.2022
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Axial
- Rated Voltage
- 230 VAC
- Dimension: Height
- 60 mm
- Dimension: Depth
- 25 mm
- Bearing type
- Vapo Bearing
- Air Flow (Rate)
- 29.72 m³/h
- Noise
- 30 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -10 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 29.72 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, 65% humidity, 90% CL
- Air Flow (Rate) Speed Level 2
- 30.57 m³/h
- Noise
- 30 dBA
- Noise Speed Level 2
- 31 dBA
- Speed RPM
- 4,100 U/min
- Speed Level 2 RPM
- 4,200 U/min
- Static pressure [inch-H₂O]
- 0.19 inch-H₂O
- Static pressure [mm/H₂O]
- 0.48 mm/H₂O
- 0.48 mm/H₂O
- Static pressure [Pa]
- 47.31 Pa
- 47.31 Pa
- Static Pressure Speed Level 2 [inch-H₂O]
- 0.20 inch-H₂O
- Static pressure level 2 [mm/H₂O]
- 0.51 mm/H₂O
- 0.51 mm/H₂O
- Static Pressure Speed Level 2 [PA]
- 49.80 Pa
- 49.80 Pa
Electrical properties
- Rated Voltage
- 230 VAC
- Rated current
- 0.198 A
- Rated Current Speed Level 2
- 0.211 A
- Operating voltage range from
- 150 VAC
- Operating voltage range up to
- 250 VAC
- Starting voltage
- 150 VAC
- Power consumption
- 4.1 W
- Power Consumption Speed Level 2
- 4.4 W
Mechanical properties
- Switchable Speed Level
- Number of motor poles
- 4
- Bearing type
- Vapo Bearing
Safety/Certifications
- Insulation resistance at 500V DC
- 10 MOhm
- Approvals
- CE
- CUR
- TÜV
- UL
