E20000020G-00

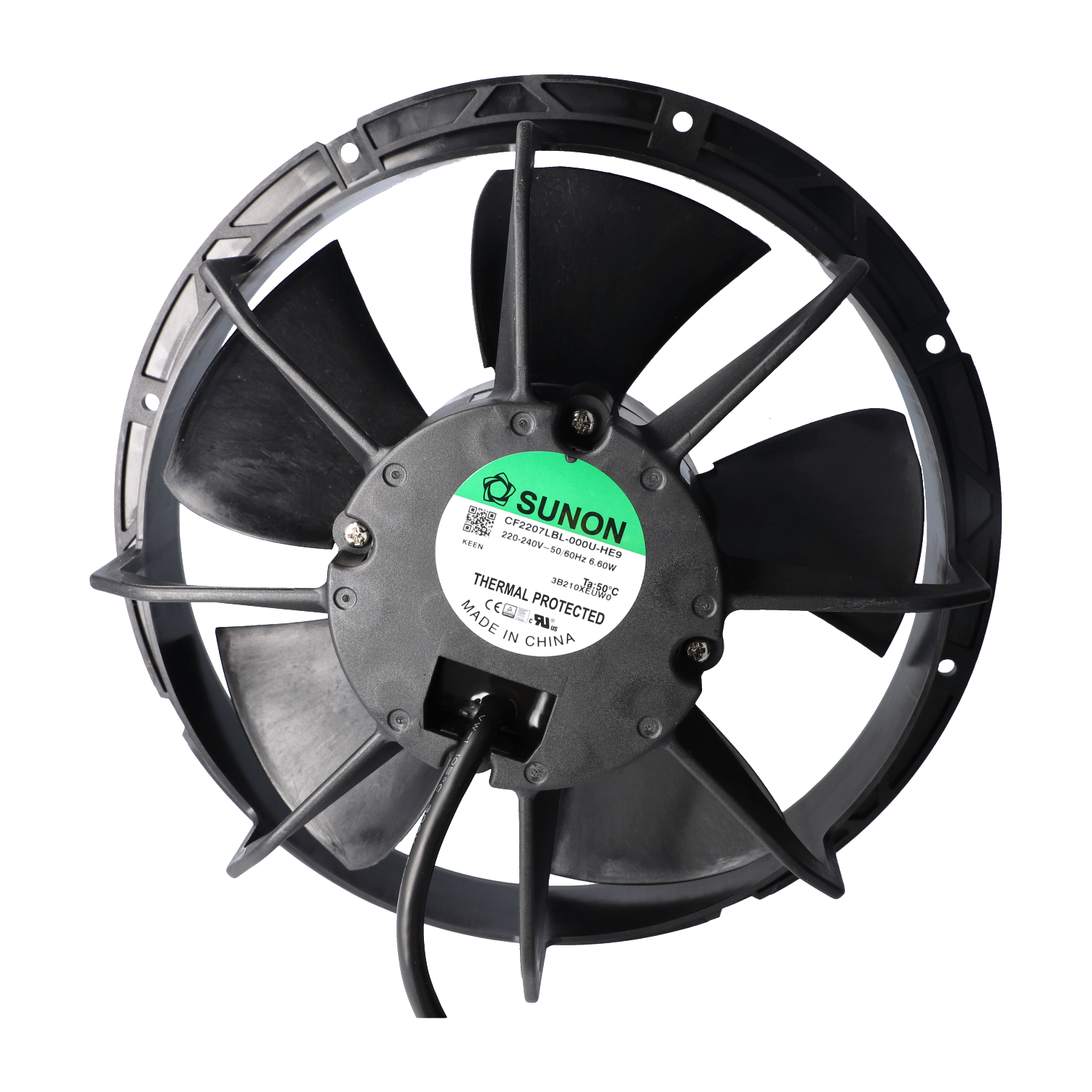

SUNON CF Axial Fan EC 230VAC 250mm x 77,4mm Ball Bearing switchable Strand, UL SVT 18AWGx3C, 105°C, 300V 315,93m³/h 29,9dBA IP68

CF2207LBL-000U-HE9CF2207LBL-000U-HE9CF2207LBL-000U-HE9
Manufacturer Part No.
E20000020G-00
Schukat Part No.
CF2207LBL-000U-HE9
Manufacturer
SUNON
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

130 Pcs. in stock

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 31.12.2025
Discontinued by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 6 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Fan Accessories.
Type
Axial
Rated Voltage
230VAC
Dimension: Height
250 mm
Dimension: Depth
77.4 mm
Bearing type
Ball Bearing
Air Flow (Rate)
315.93 m³/h
Noise
29.9 dBA
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • SUNON
Series
  • CF
Product group
  • K7114
Dimension: Width
  • 250 mm
Dimension: Height
  • 250 mm
Dimension: Depth
  • 77.4 mm
Type
  • Axial
Weight
  • 1,100 g
Notice

Operating conditions

Minimum Operating Temperature
  • -40 °C
Maximum Operating Temperature
  • 50 °C
Minimum Storage Temperature
  • -40 °C
Maximum Storage Temperature
  • 70 °C

Performance features

Air Flow (Rate)
  • 315.93 m³/h
Life Expectancy MTTF
  • 70,000 h bei 40°C, for test conditions, see datasheet
Air Flow (Rate) Speed Level 2
  • 473.56 m³/h
Noise
  • 29.9 dBA
Noise Speed Level 2
  • 41.2 dBA
Speed RPM
  • 950 U/min
Speed Level 2 RPM
  • 1,400 U/min
Static pressure [inch-H₂O]
  • 0.16 inch-H₂O
Static pressure [mm/H₂O]
  • 0.41 mm/H₂O
Static pressure [Pa]
  • 39.84 Pa
Static Pressure Speed Level 2 [inch-H₂O]
  • 0.30 inch-H₂O
Static pressure level 2 [mm/H₂O]
  • 0.76 mm/H₂O
Static Pressure Speed Level 2 [PA]
  • 74.70 Pa

Electrical properties

Rated Voltage
  • 230VAC
Rated current
  • 0.038 A
Rated Current Speed Level 2
  • 0.07 A
Operating voltage range from
  • 180 VAC
Maximum Operating Voltage
  • 250 VAC
Starting voltage
  • 180 VAC
Power consumption
  • 3.2 W
Power Consumption Speed Level 2
  • 6.6 W
Dielectric strength
  • 1800V AC for 1s

Mechanical properties

Drive
  • Brushless full-shaft DC motor with single-coil technology
Switchable Speed Level
Number of motor poles
  • 4
Housing material
  • Thermoplastic PBT (UL94V-0)
Impeller material
  • Thermoplastic PBT (UL94V-0)
Bearing type
  • Ball Bearing
Air flow direction
  • Air flow direction in the direction of the labelled point If the blue or black cable is connected to the brown cable, the fan switches to low speed.
Termination Style
  • Strand, UL SVT 18AWGx3C, 105°C, 300V

Safety/Certifications

Protection Class IP
  • IP68
Insulation resistance at 500V DC
  • 10 MOhm
Approvals
  • CE
  • CUR
  • TÜV
  • UL
