D04145310G-00

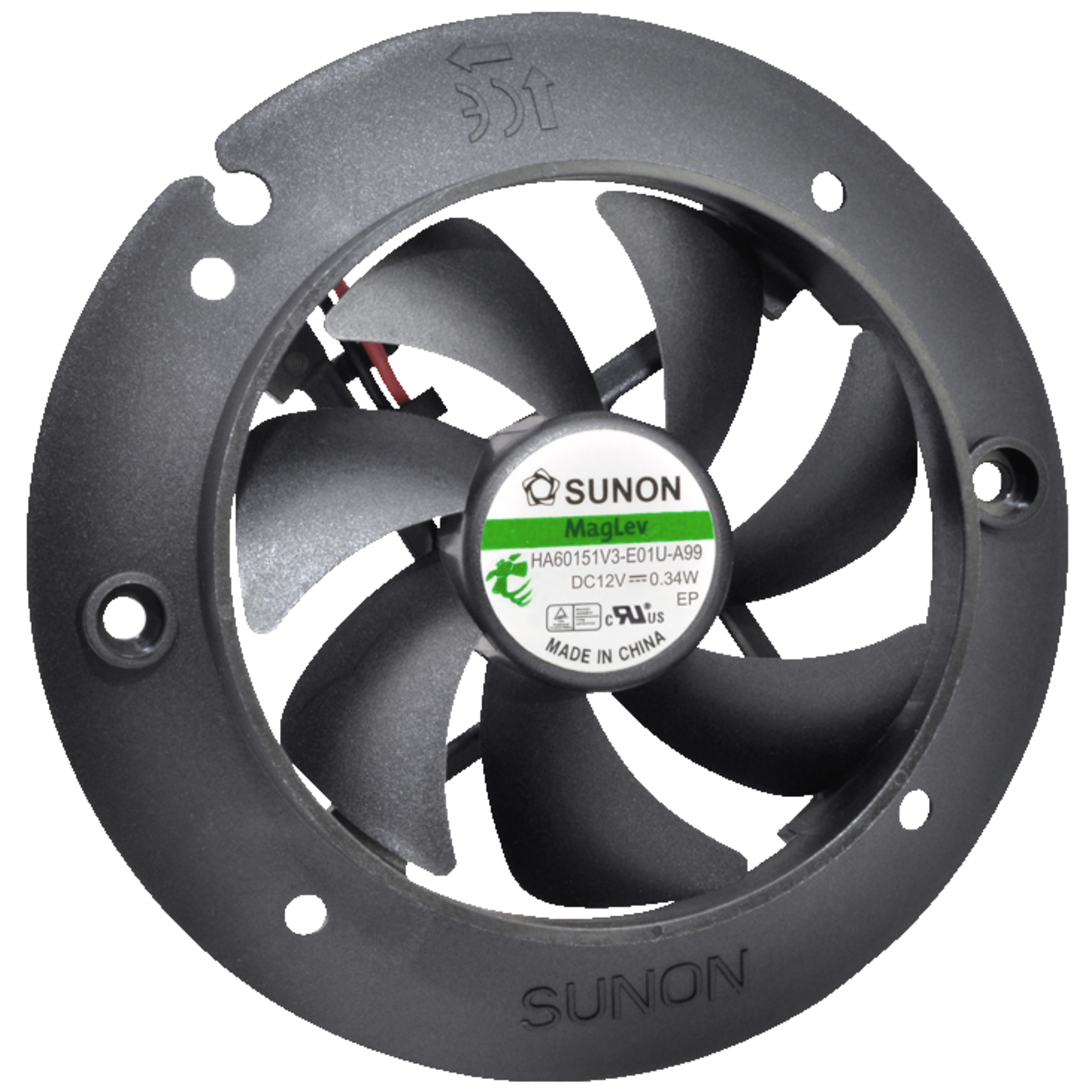

SUNON HA Axial DC fan 12 VDC 48,9mm x 10,6mm Vapo Bearing 7,64m³/h 13,1dBA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.12.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Axial
- Rated Voltage
- 12 VDC
- Dimension: Height
- 48.9 mm
- Dimension: Depth
- 10.6 mm
- Bearing type
- Vapo Bearing
- Air Flow (Rate)
- 7.64 m³/h
- Noise
- 13.1 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -10 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 7.64 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, 65% humidity, 90% CL
- Noise
- 13.1 dBA
- Speed RPM
- 3,900 U/min
- Static pressure [inch-H₂O]
- 0.05 inch-H₂O
- Static pressure [mm/H₂O]
- 0.13 mm/H₂O
- 0.13 mm/H₂O
- Static pressure [Pa]
- 12.45 Pa
- 12.45 Pa
Electrical properties
- Rated Voltage
- 12 VDC
- Rated current
- 0.027 A
- Operating voltage range from
- 6 VDC
- Maximum Operating Voltage
- 13.8 VDC
- Starting voltage
- 6 VDC
- Power consumption
- 0.32 W
Mechanical properties
- Bearing type
- Vapo Bearing
Safety/Certifications
- Insulation class
- A
- Insulation resistance at 500V DC
- 10 MOhm
- Approvals
- TÜV
