D01000841F-00

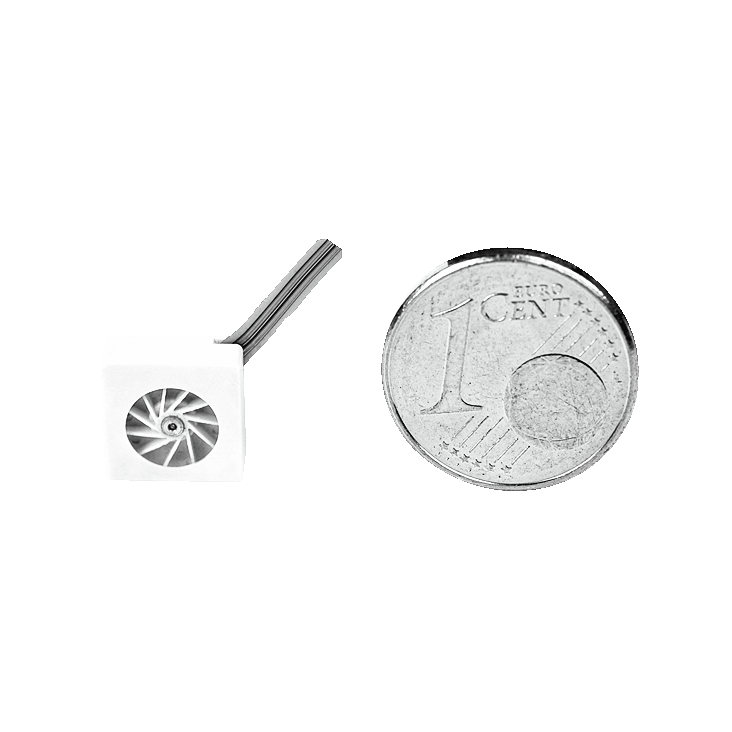

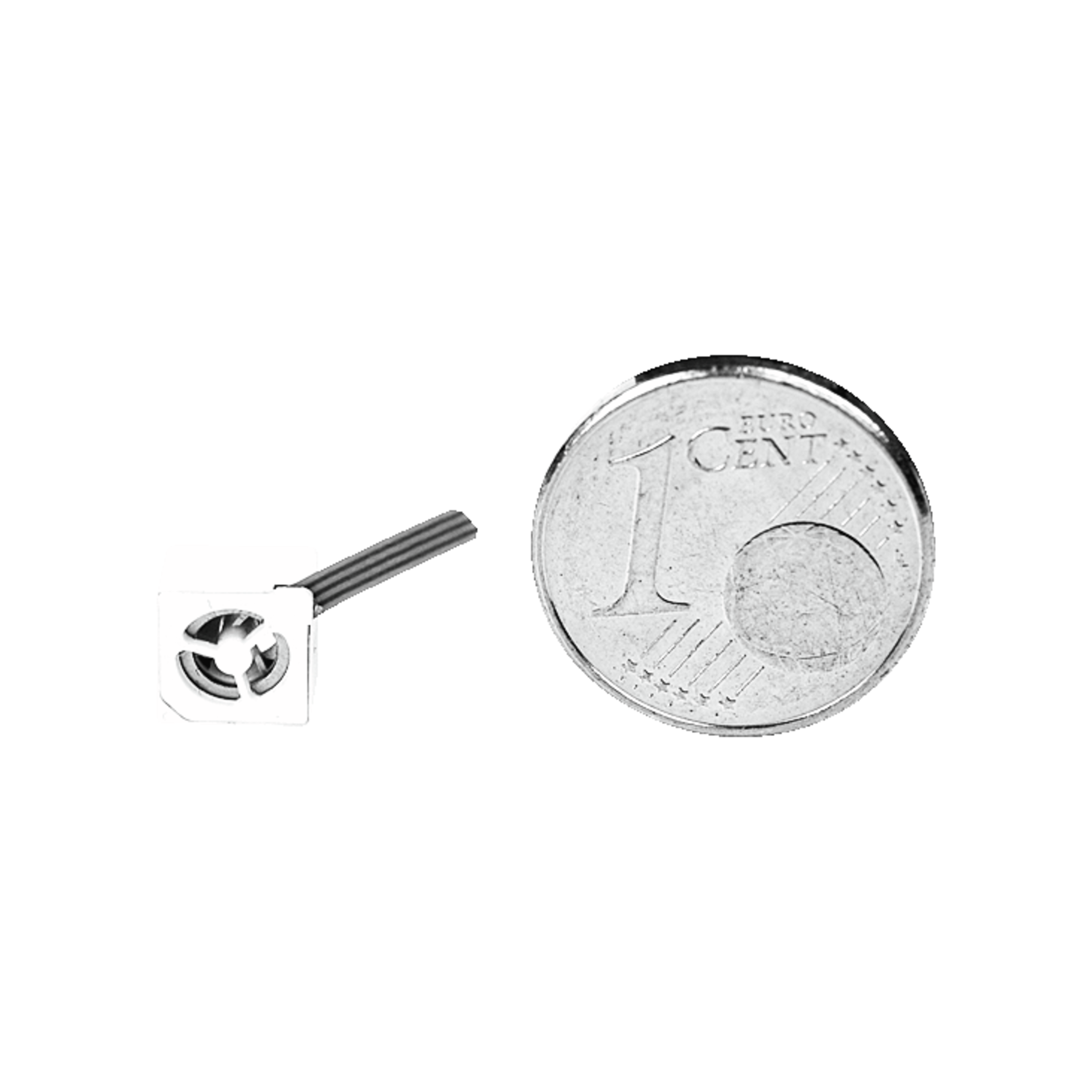

SUNON Mighty Mini Fan Axial DC fan 3 VDC 15mm x 3mm Vapo Bearing 8,75m³/h 20,2dBA Speedometer signal
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
200 Pcs.
200 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Axial
- Rated Voltage
- 3 VDC
- Dimension: Height
- 15 mm
- Dimension: Depth
- 3 mm
- Bearing type
- Vapo Bearing
- Air Flow (Rate)
- 8.75 m³/h
- Noise
- 20.2 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -10 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 8.75 m³/h
- Life Expectancy MTTF
- 60,000 h bei 40°C, 65% humidity, 90% CL
- Noise
- 20.2 dBA
- Speed RPM
- 14,500 U/min
Electrical properties
- Rated Voltage
- 3 VDC
- Rated current
- 0.036 A
- Operating voltage range from
- 2 VDC
- Maximum Operating Voltage
- 3.5 VDC
- Starting voltage
- 2 VDC
- Power consumption
- 0.1 W
- Dielectric strength
- 500V AC for 1 Min.
Mechanical properties
- Drive
- DC Brushless Motor Design
- Housing material
- Thermoplast PBT (LCP A130
- Impeller material
- Thermoplast PBT (LCP A130
- Bearing type
- Vapo Bearing
- Air flow direction
- Best mounting direction : any direction
- Termination Style
- Strand, UL10064 AWG32, Stripped, Tinned
Safety/Certifications
- Insulation resistance at 500V DC
- 20 MOhm
- Approvals
- CE
