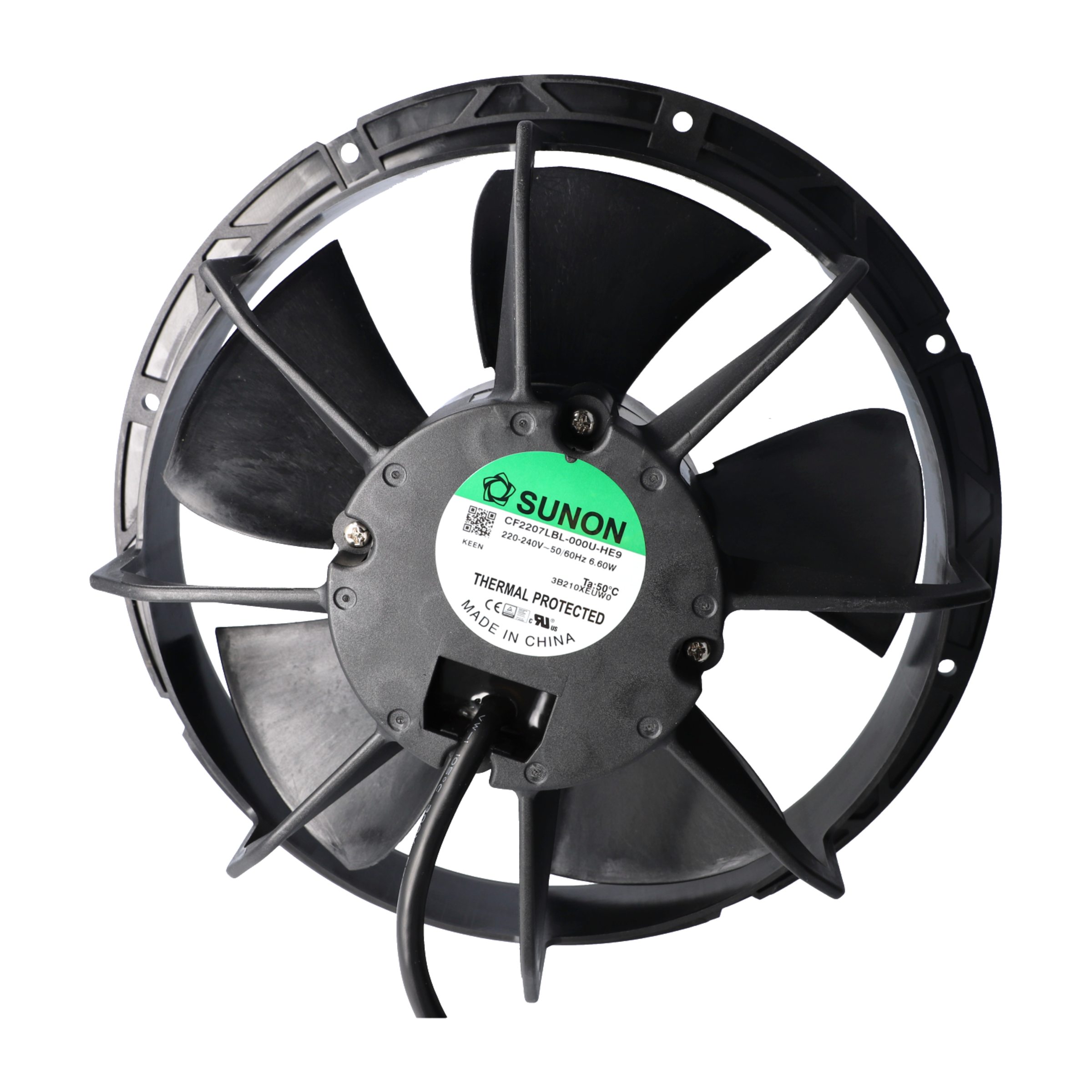

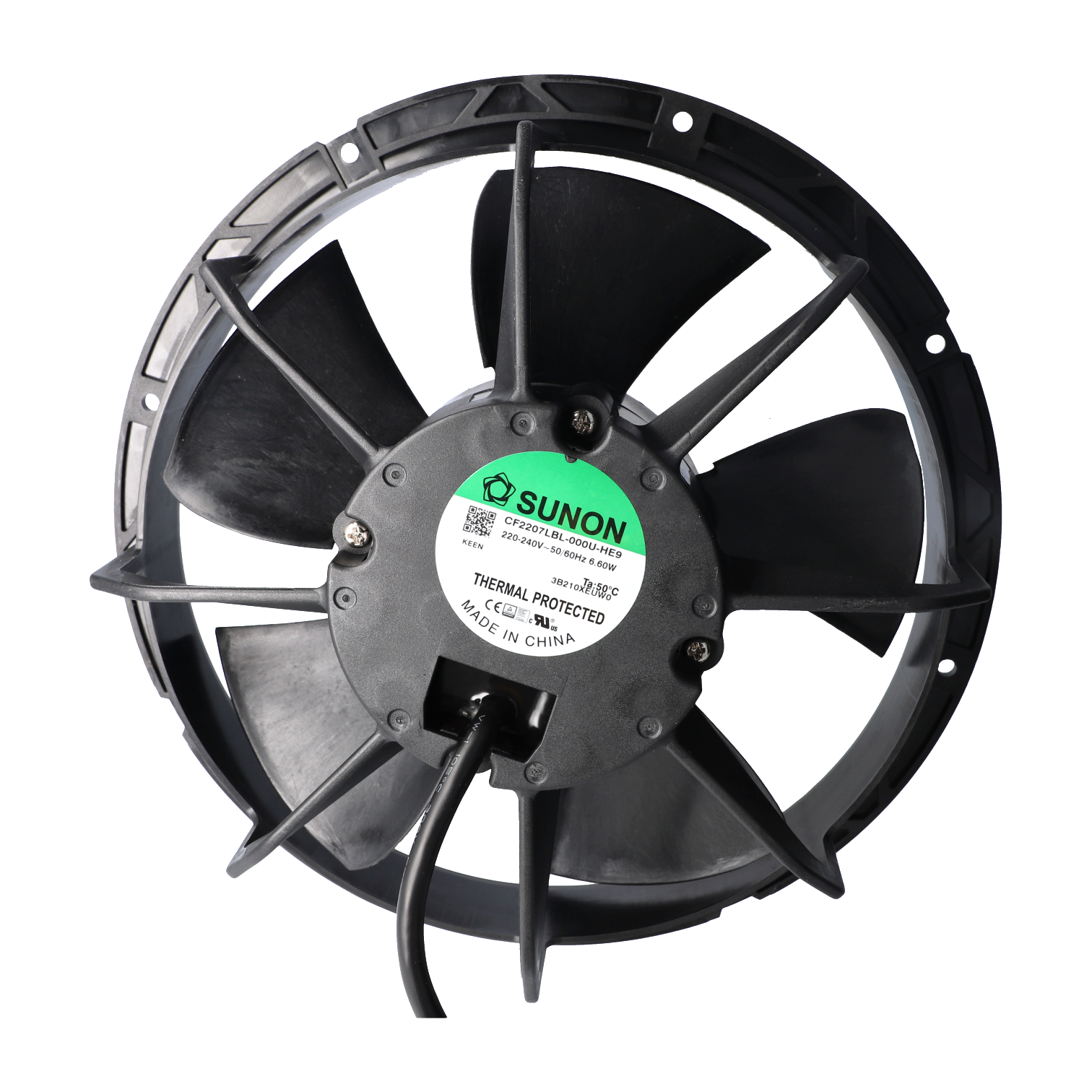

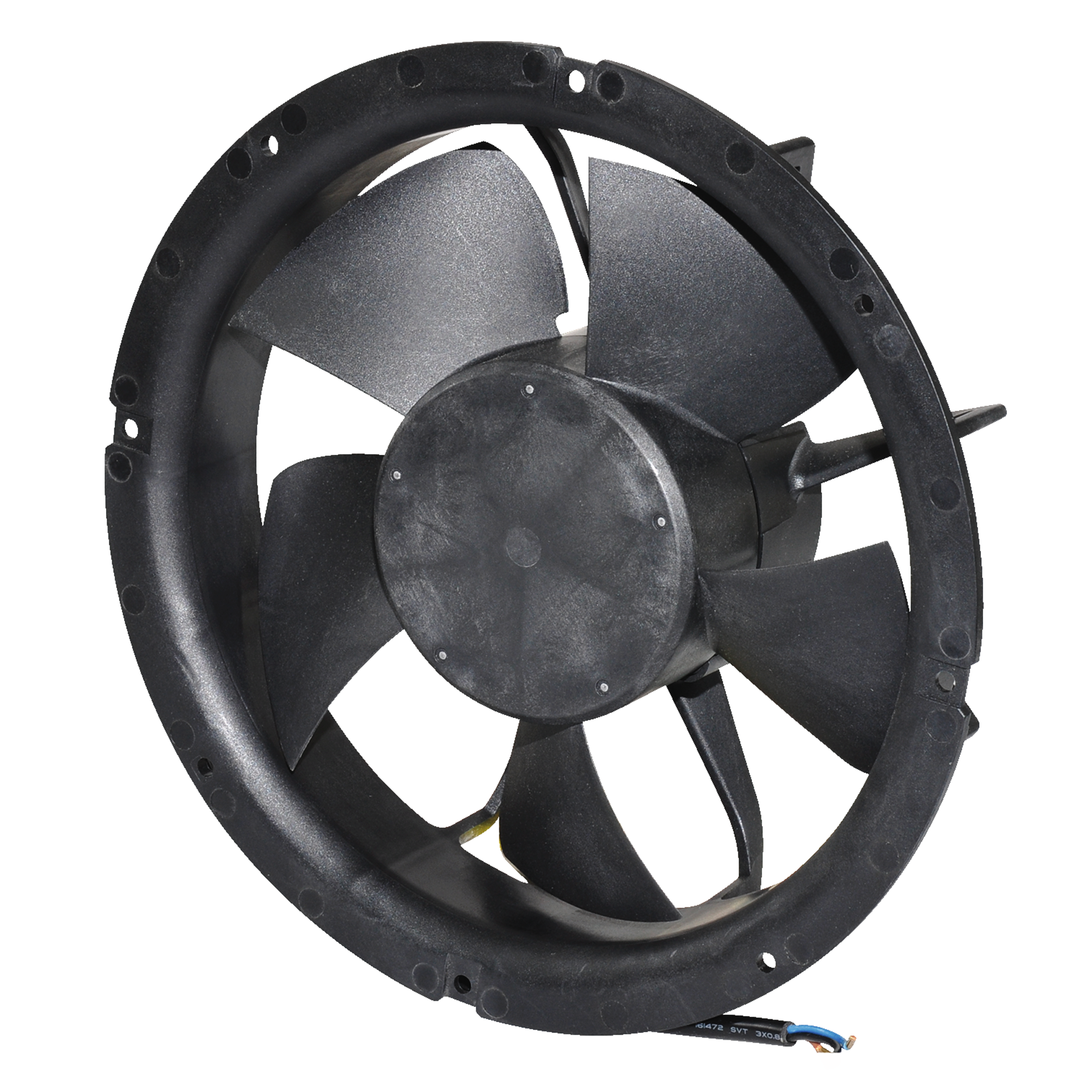

CF2207LBL-000U-HB9
SUNON CF Axial Fan EC 230VAC 250mm x 77,4mm Ball Bearing switchable Strand, UL SVT 18AWGx3C, 105°C, 300V 315,93m³/h 29,9dBA IP55
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
62 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.12.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 6 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
Here you will find suitable Fan Accessories. - Type
- Axial
- Rated Voltage
- 230VAC
- Dimension: Height
- 250 mm
- Dimension: Depth
- 77.4 mm
- Bearing type
- Ball Bearing
- Air Flow (Rate)
- 315.93 m³/h
- Noise
- 29.9 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -40 °C
- Maximum Operating Temperature
- 50 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 315.93 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, for test conditions, see datasheet
- Air Flow (Rate) Speed Level 2
- 473.56 m³/h
- Noise
- 29.9 dBA
- Noise Speed Level 2
- 41.2 dBA
- Speed RPM
- 950 U/min
- Speed Level 2 RPM
- 1,400 U/min
- Static pressure [inch-H₂O]
- 0.16 inch-H₂O
- Static pressure [mm/H₂O]
- 0.41 mm/H₂O
- Static pressure [Pa]
- 39.84 Pa
- Static Pressure Speed Level 2 [inch-H₂O]
- 0.30 inch-H₂O
- Static pressure level 2 [mm/H₂O]
- 0.76 mm/H₂O
- Static Pressure Speed Level 2 [PA]
- 74.70 Pa
Electrical properties
- Rated Voltage
- 230VAC
- Rated current
- 0.038 A
- Rated Current Speed Level 2
- 0.07 A
- Operating voltage range from
- 180 VAC
- Maximum Operating Voltage
- 250 VAC
- Starting voltage
- 180 VAC
- Power consumption
- 3.2 W
- Power Consumption Speed Level 2
- 6.6 W
- Dielectric strength
- 1800V AC for 1s
Mechanical properties
- Drive
- Brushless full-shaft DC motor with single-coil technology
- Switchable Speed Level
- Number of motor poles
- 4
- Housing material
- Thermoplastic PBT (UL94V-0)
- Impeller material
- Thermoplastic PBT (UL94V-0)
- Bearing type
- Ball Bearing
- Air flow direction
- Air flow direction in the direction of the labelled point If the blue or black cable is connected to the brown cable, the fan switches to low speed.
- Termination Style
- Strand, UL SVT 18AWGx3C, 105°C, 300V
Safety/Certifications
- Protection Class IP
- IP55
- Insulation resistance at 500V DC
- 10 MOhm
- Approvals
- CE
- CUR
- TÜV
- UL
