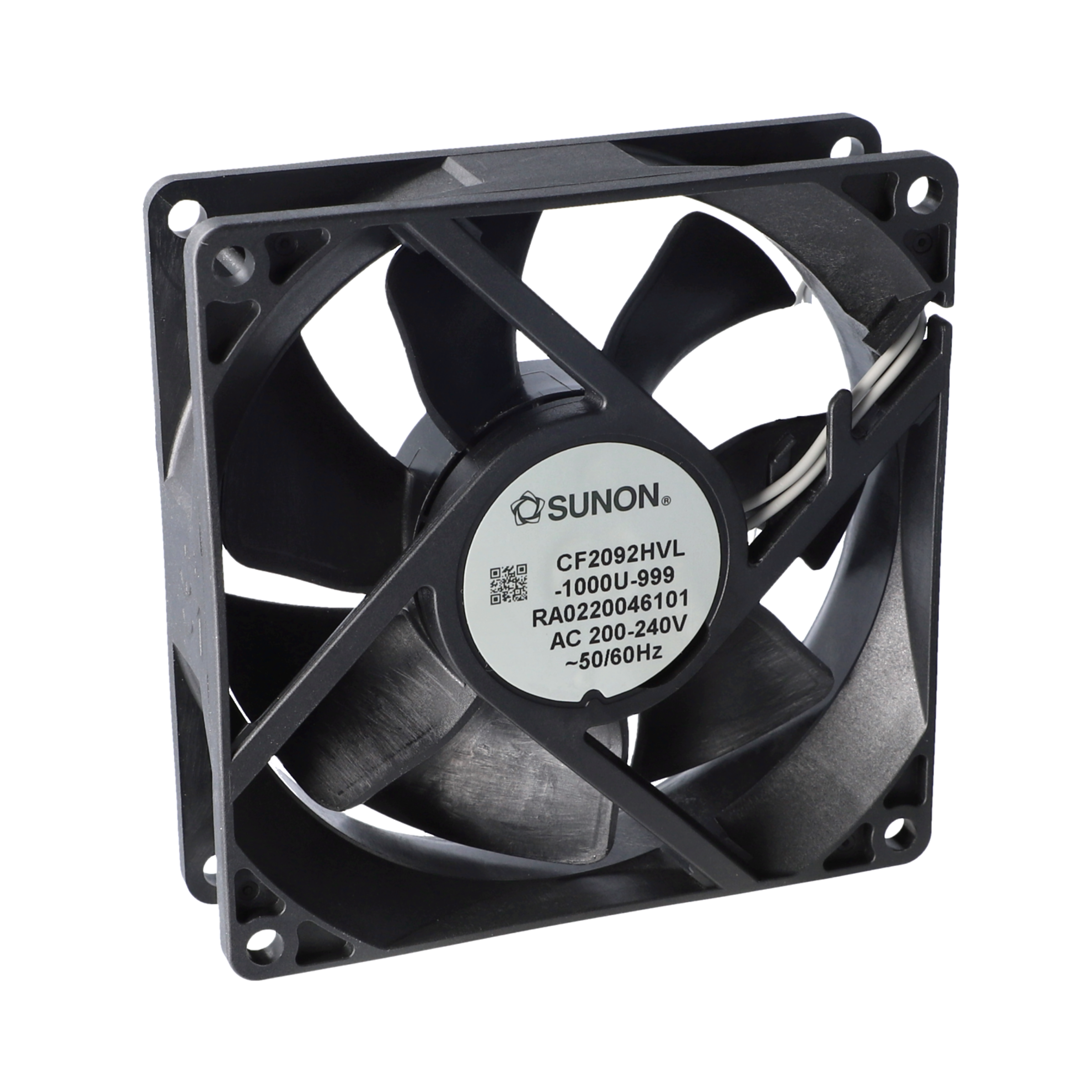

CF2092HVL-1000U-999
SUNON CF Axial Fan EC 230 VAC 92mm x 25mm Vapo Bearing Strand, AWG24, UL3266, 30cm, Stripped, Tinned 88,32m³/h 31dBA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.551 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 56 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Axial
- Rated Voltage
- 230 VAC
- Dimension: Height
- 92 mm
- Dimension: Depth
- 25 mm
- Bearing type
- Vapo Bearing
- Air Flow (Rate)
- 88.32 m³/h
- Noise
- 31 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -20 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 70 °C
Performance features
- Air Flow (Rate)
- 88.32 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, 65% humidity, 90% CL
- Air Flow (Rate) Speed Level 2
- 91.72 m³/h
- Noise
- 31 dBA
- Noise Speed Level 2
- 32 dBA
- Speed RPM
- 2,900 U/min
- Speed Level 2 RPM
- 3,000 U/min
- Static pressure [inch-H₂O]
- 0.12 inch-H₂O
- Static pressure [mm/H₂O]
- 0.30 mm/H₂O
- 0.30 mm/H₂O
- Static pressure [Pa]
- 29.88 Pa
- 29.88 Pa
- Static Pressure Speed Level 2 [inch-H₂O]
- 0.14 inch-H₂O
- Static pressure level 2 [mm/H₂O]
- 0.36 mm/H₂O
- 0.36 mm/H₂O
- Static Pressure Speed Level 2 [PA]
- 34.86 Pa
- 34.86 Pa
Electrical properties
- Rated Voltage
- 230 VAC
- Rated current
- 0.2 A
- Rated Current Speed Level 2
- 0.21 A
- Operating voltage range from
- 200 VAC
- Operating voltage range up to
- 240 VAC
- Starting voltage
- 200 VAC
- Power consumption
- 3.9 W
- Power Consumption Speed Level 2
- 4 W
- Dielectric strength
- 1500V AC for 1s
Mechanical properties
- Drive
- Brushless 4 Pole Motor, Impedance Protected
- Switchable Speed Level
- Number of motor poles
- 4
- Housing material
- Thermoplastic PBT (UL94V-0)
- Impeller material
- Thermoplastic PBT (UL94V-0)
- Bearing type
- Vapo Bearing
- Air flow direction
- Air flow in the direction of the label Best mounting direction: any orientation
- Termination Style
- Strand, AWG24, UL3266, 30cm, Stripped, Tinned
Safety/Certifications
- Insulation class
- A
- Insulation resistance at 500V DC
- 10 MOhm
- Approvals
- CUR
- TÜV
- UL
