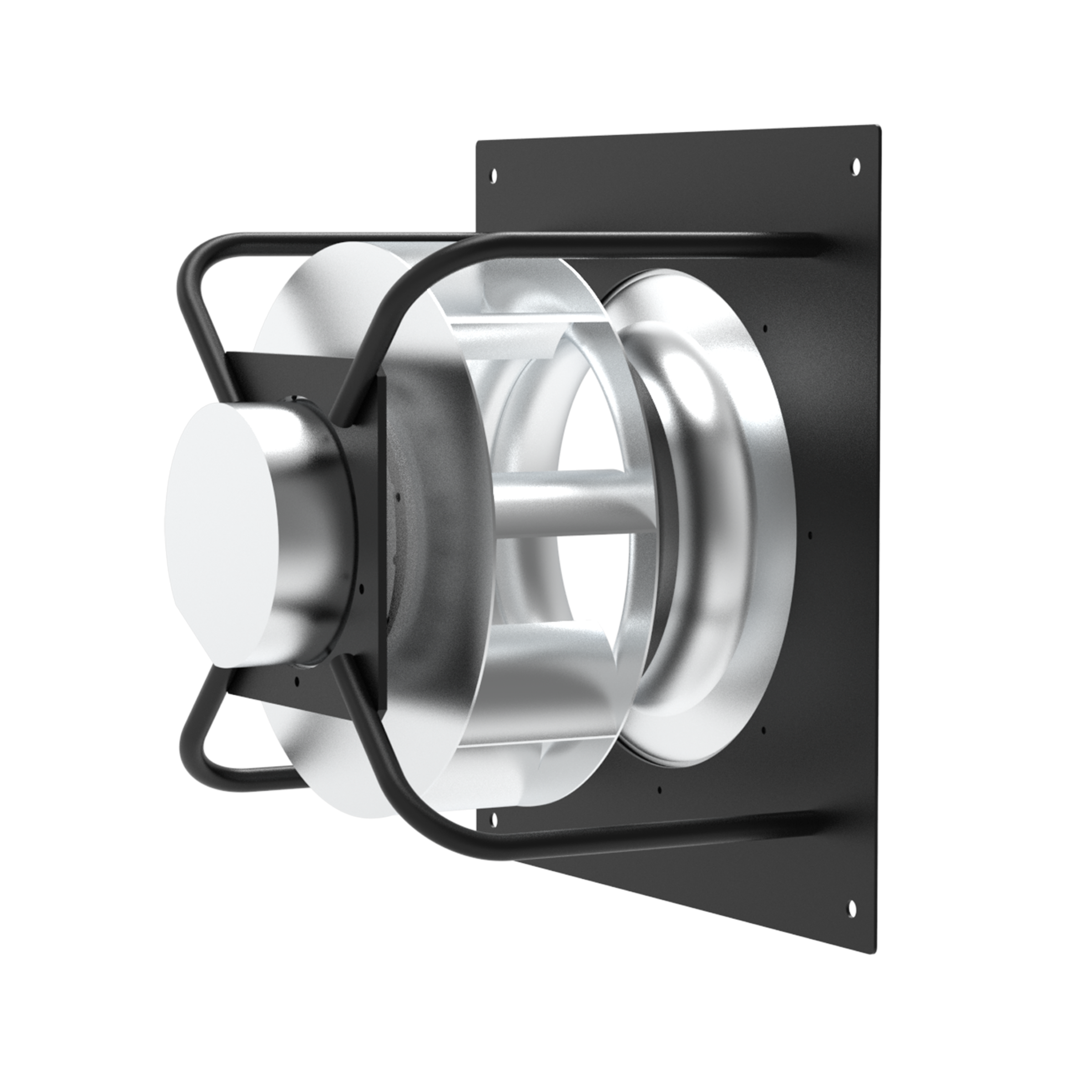

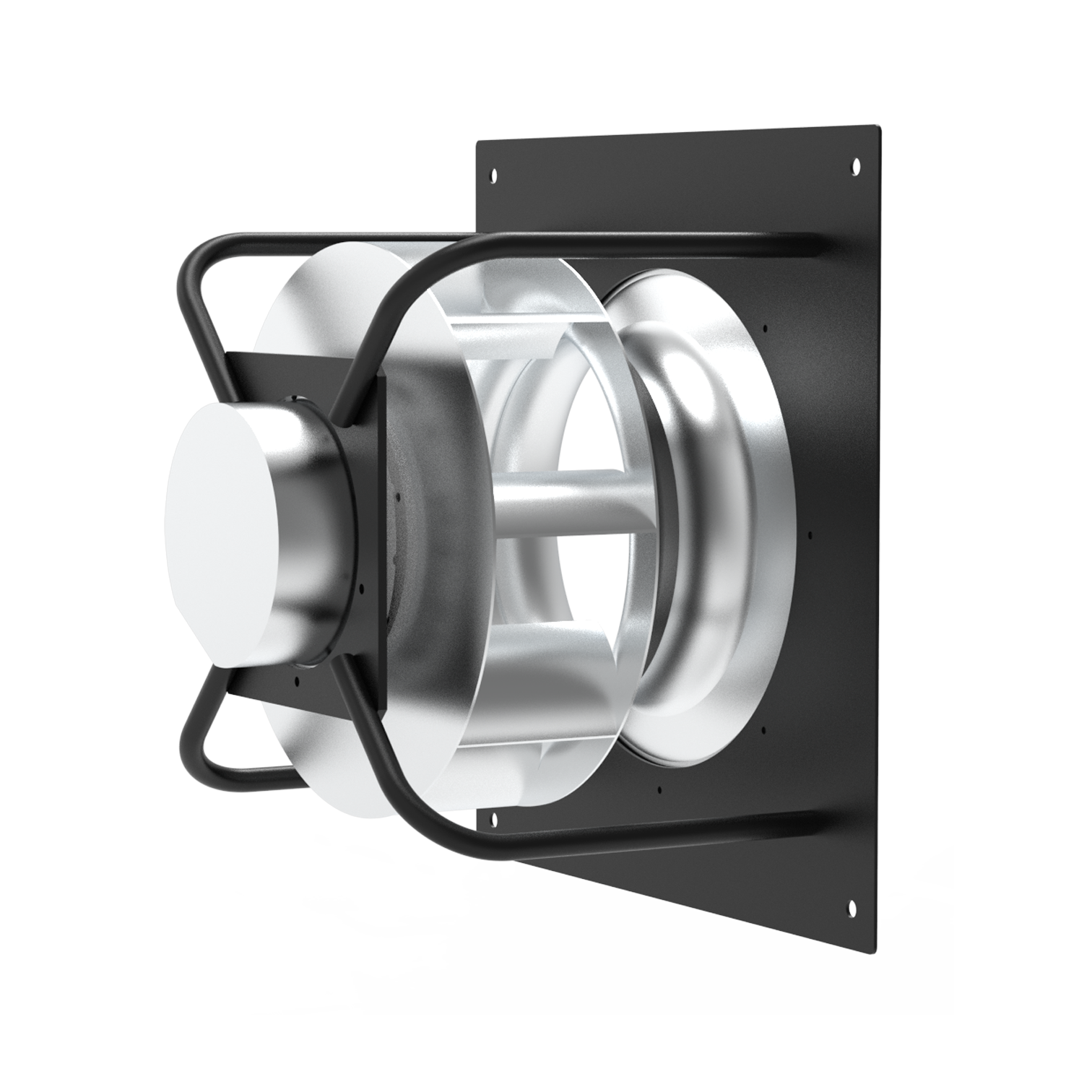

CBAP335NE-1000U-IJ9
SUNON CB Centrifugal Fan EC 230VAC 500mm x 320mm Ball Bearing Terminal 4.273m³/h 78dBA IP55 PWM
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
Here you will find suitable Fan Accessories.
General:
- Exclusive at Schukat
- Currently, only samples available
- Availability, lead times, and prices upon request
- Mass production scheduled to start in October 2025 - Request a quote
- By email: sunon@schukat.com
By phone: +49 2173 950-780 - Type
- Centrifugal
- Rated Voltage
- 230VAC
- Dimension: Height
- 500 mm
- Dimension: Depth
- 320 mm
- Bearing type
- Ball Bearing
- Air Flow (Rate)
- 4,273 m³/h
- Noise
- 78 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -25 °C
- Maximum Operating Temperature
- 60 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 80 °C
Performance features
- Air Flow (Rate)
- 4,273 m³/h
- Life Expectancy MTTF
- 60,000 h bei 40°C, for test conditions, see datasheet
- Noise
- 78 dBA
- Speed RPM
- 2,000 U/min
- Static pressure [inch-H₂O]
- 1.82 inch-H₂O
- Static pressure [mm/H₂O]
- 4.62 mm/H₂O
- Static pressure [Pa]
- 453.18 Pa
Electrical properties
- Rated Voltage
- 230VAC
- Rated current
- 1.25 A
- Operating voltage range from
- 200 VAC
- Maximum Operating Voltage
- 277 VAC
- Power consumption
- 280 W
Mechanical properties
- Drive
- Single Phase
- Switchable Speed Level
- Housing material
- Aluminium
- Impeller material
- Aluminium
- Bearing type
- Ball Bearing
- Termination Style
- Terminal
Safety/Certifications
- Protection Class IP
- IP55
- Insulation class
- F
- Approvals
- CE
- TÜV
- UL
