A12010180G-00

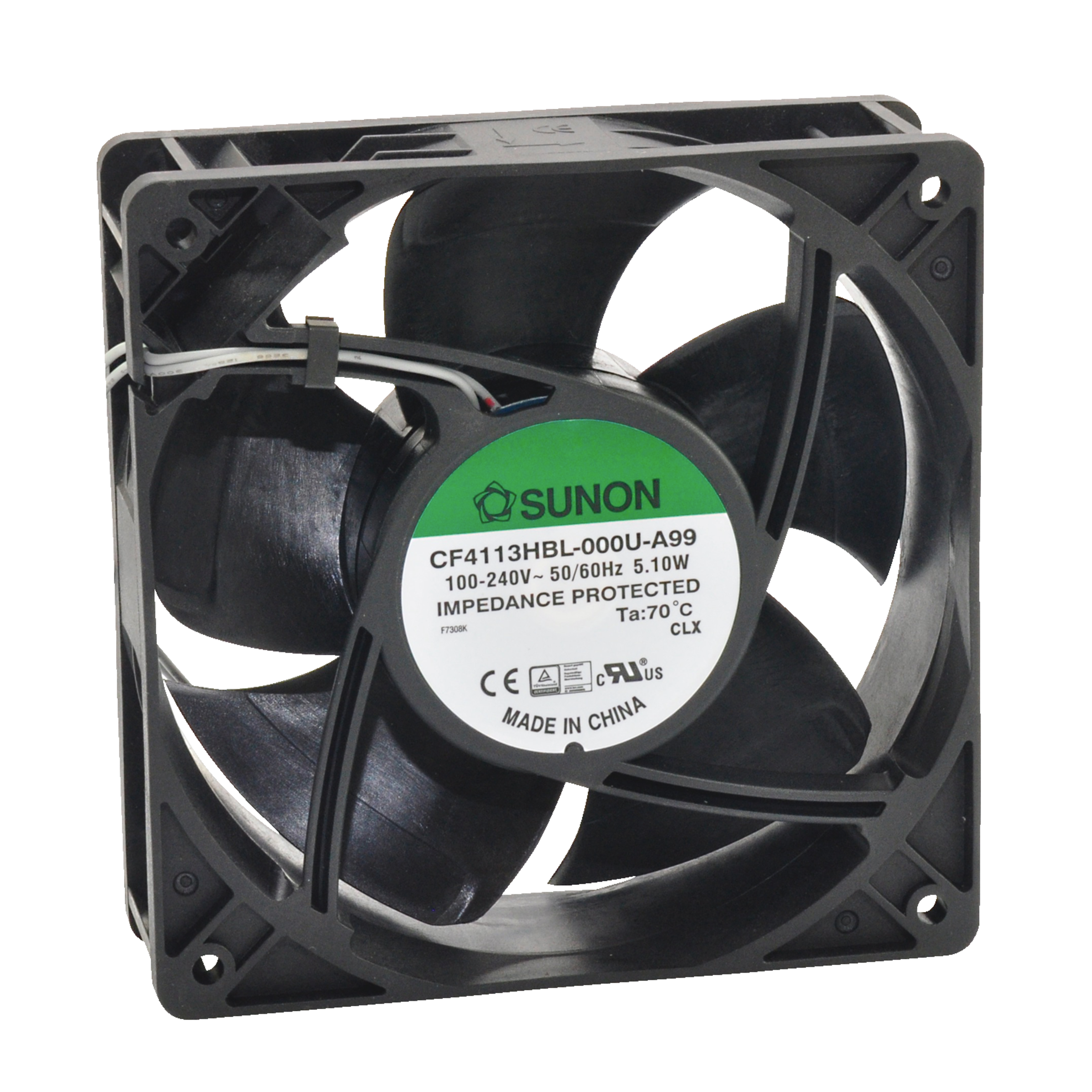

SUNON CF Axial Fan EC 115 VAC 230 VAC 120mm x 38mm Ball Bearing Strand, UL 3266, 24AWG 109,22m³/h 31,4dBA IP21
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
33 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.05.2022
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Axial
- Rated Voltage
- 115 VAC
230 VAC - Dimension: Height
- 120 mm
- Dimension: Depth
- 38 mm
- Bearing type
- Ball Bearing
- Air Flow (Rate)
- 109.22 m³/h
- Noise
- 31.4 dBA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Minimum Operating Temperature
- -25 °C
- Maximum Operating Temperature
- 70 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 80 °C
Performance features
- Air Flow (Rate)
- 109.22 m³/h
- Life Expectancy MTTF
- 70,000 h bei 40°C, 65% humidity, 90% CL
- Noise
- 31.4 dBA
- Speed RPM
- 2,000 U/min
- Static pressure [inch-H₂O]
- 0.17 inch-H₂O
- Static pressure [mm/H₂O]
- 0.43 mm/H₂O
- 0.43 mm/H₂O
- Static pressure [Pa]
- 42.33 Pa
- 42.33 Pa
Electrical properties
- Rated Voltage
- 115 VAC
- 230 VAC
- Rated current
- 0.037 A
- Rated Current Speed Level 2
- 0.022 A
- Operating voltage range from
- 90 VAC
- Operating voltage range up to
- 265 VAC
- Starting voltage
- 85 VAC
- Power consumption
- 1.8 W
- Dielectric strength
- 1800V AC for 1s
Mechanical properties
- Drive
- Patented One-phase Single Coil DC Brushless Motor Design
- Switchable Speed Level
- Number of motor poles
- 4
- Housing material
- Thermoplastic PBT (UL94V-0)
- Impeller material
- Thermoplastic PBT (UL94V-0)
- Bearing type
- Ball Bearing
- Assembly specifications
- 0.294 Nm to 0.392 Nm
- Air flow direction
- Best installation direction: any orientation
- Termination Style
- Strand, UL 3266, 24AWG
Safety/Certifications
- Protection Class IP
- IP21
- Insulation resistance at 500V DC
- 10 MOhm
- Approvals
- CE
- CUR
- TÜV
- UL
