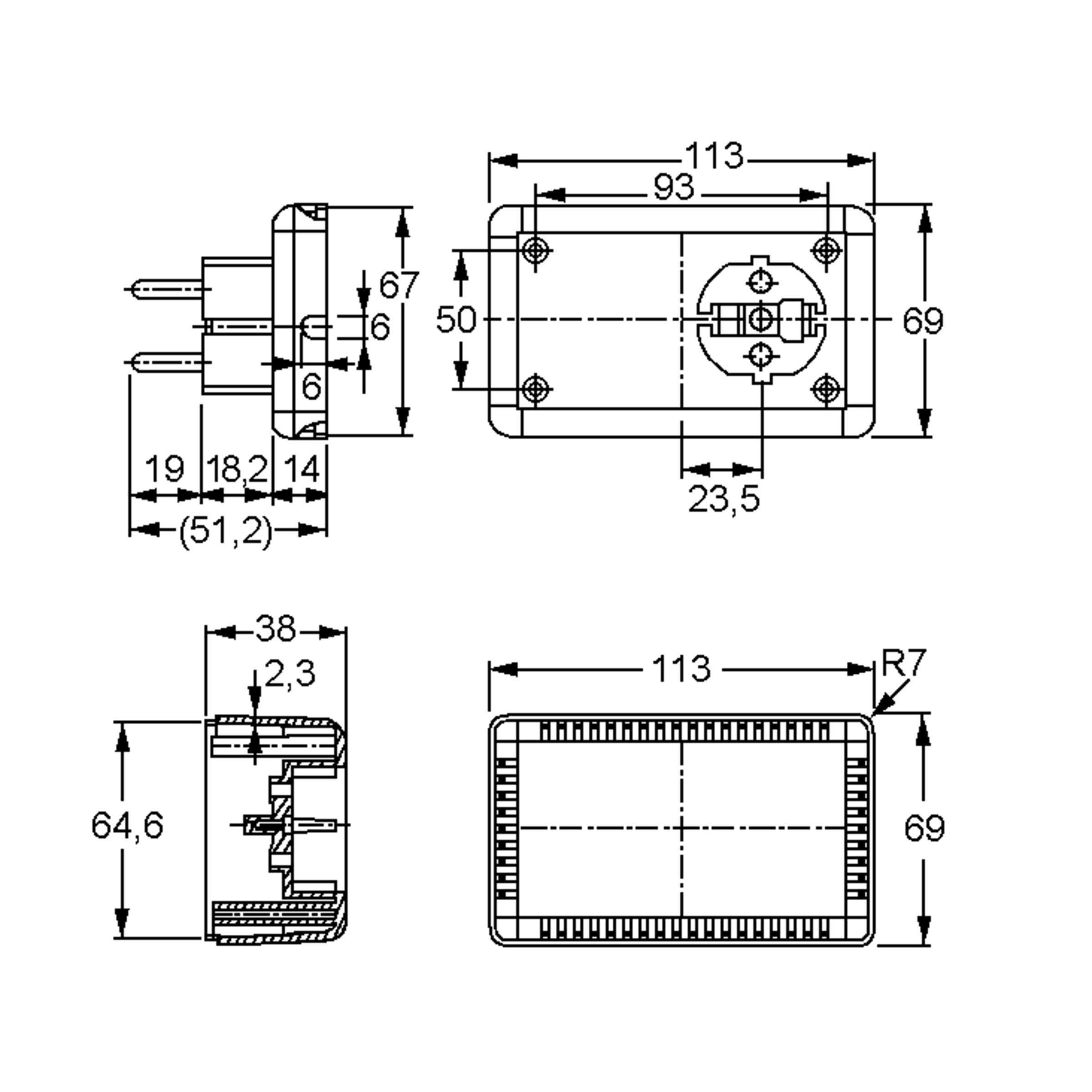

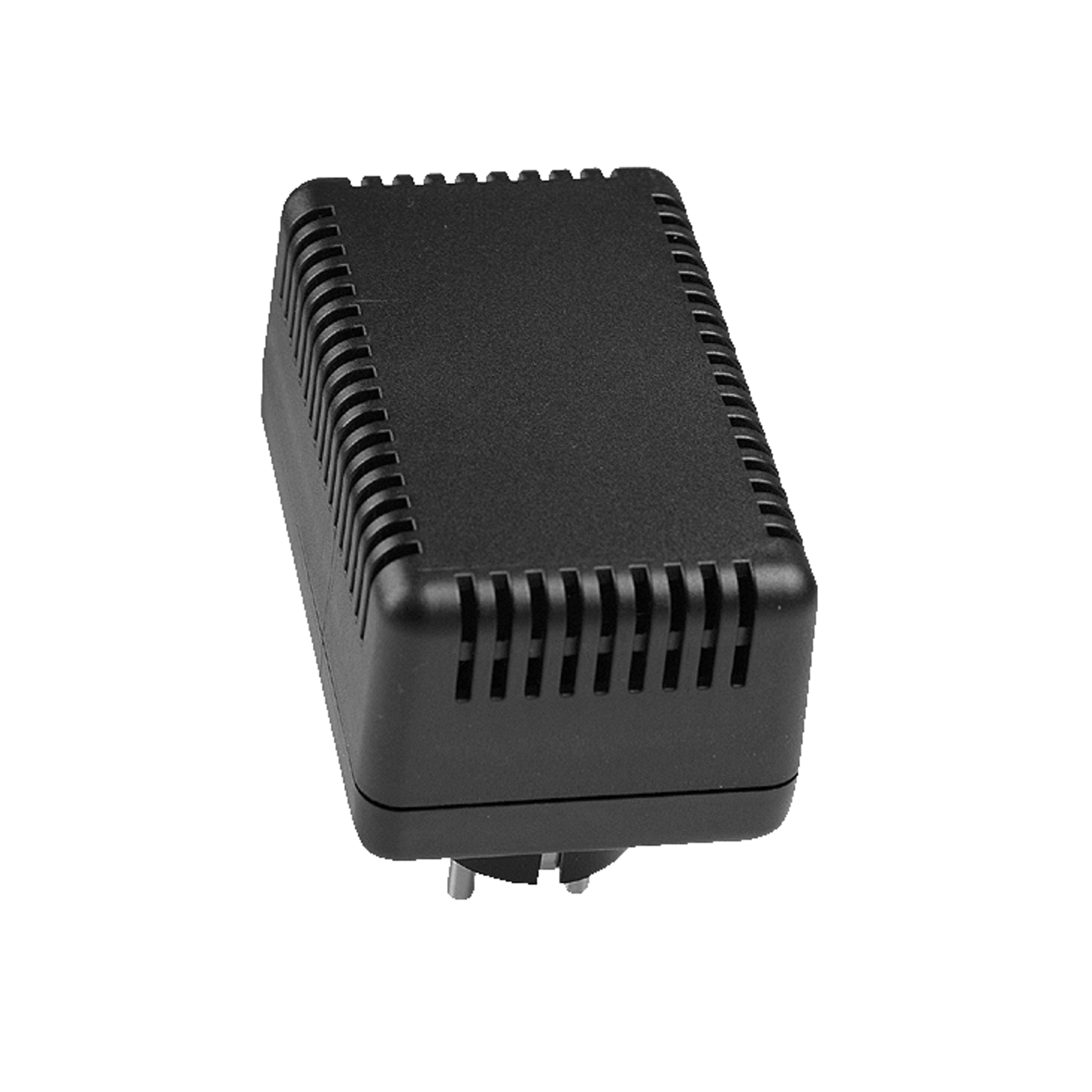

STRAPUBOX SG Connector housing 113mm x 69mm x 52mm black

Manufacturer Part No.
SG 421
Schukat Part No.
SG421
Manufacturer
STRAPUBOX
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

35 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Connector housing
Assembly Type
Screw mounting
Dimension: Length
113 mm
Dimension: Width
69 mm
Dimension: Height
52 mm
Type ( axial, radial )
Air vents
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • STRAPUBOX
Series
  • SG
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Connector housing
Assembly Type
  • Screw mounting
Type ( axial, radial )
  • Air vents
Features

  • - Lower part with molded on Schuko plug, center earthing contact and grounding clamp, plug contacts made of brass, nickel-plated, soldered connection
    - Suitable for protection class 1 (CEE7) devices
    - Upper part with louvred cover
    - Cams available for attaching a PCB
    - Opening for cable (Ø 6mm max.), with cams for screwing a strain relief clip with 16mm screw distance (You will find suitable cable clamps for strain relief, part KZ0441 in product group G8485. Suitable screws are available in product group G8191.)
    - Screw connection to both enclosure halves in lower part using four self-tapping screws

Dimensions and weights

Dimension: Length
  • 113 mm
Dimension: Width
  • 69 mm
Dimension: Height
  • 52 mm
