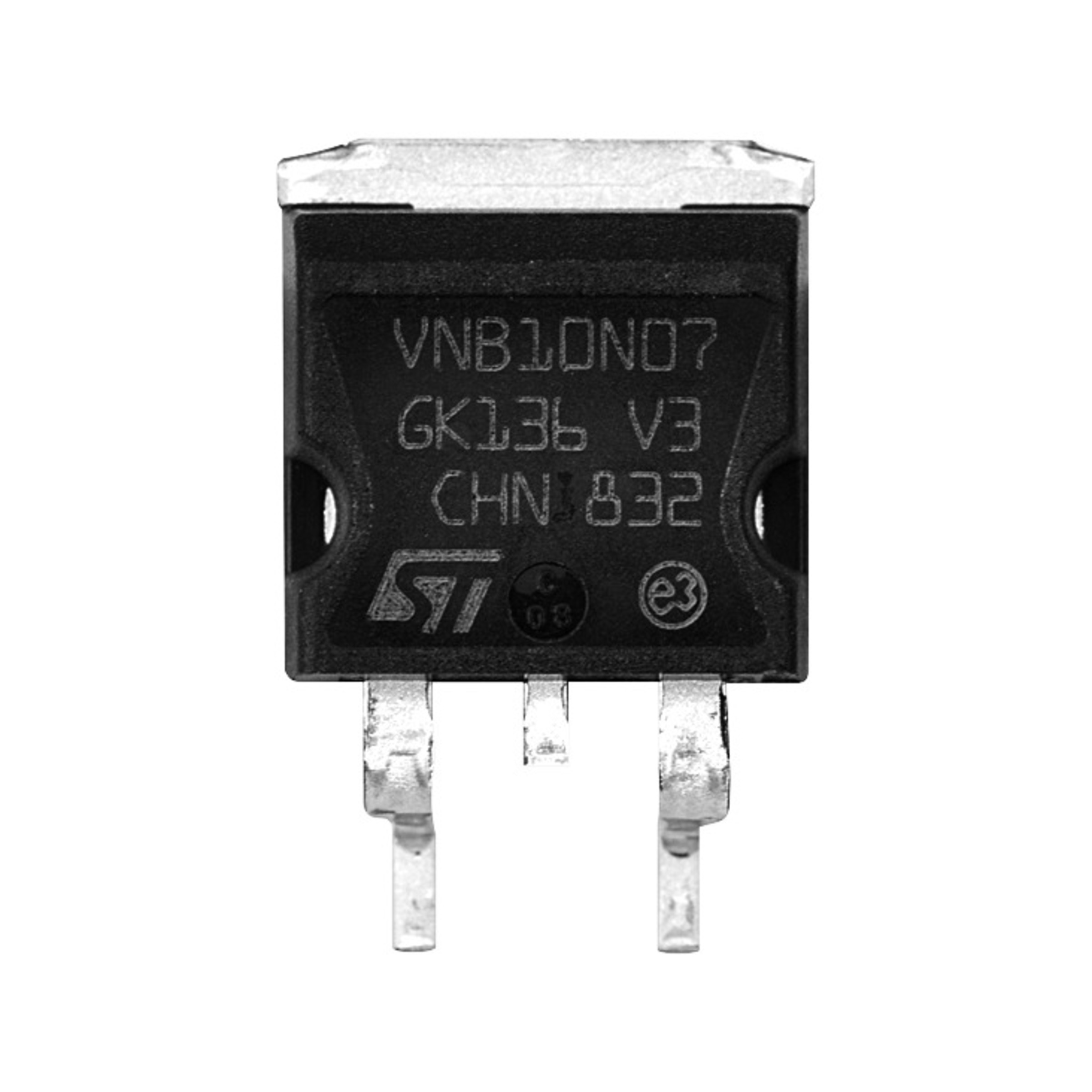

VNB10N07-E
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Number of Channels
- 1
- (Id) Continuous Drain Current
- 10 A
- (Pd) Power Dissipation
- 50 W
- (RDS(on)) Drain-Source Widerstand max.
- 0.14 mOhm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
Electrical properties
- (Uds) Max. Drain-Source Voltage Q1
- 70 V
- (Uds) Max. Drain-Source Voltage
- 70 V
- (Id) Continuous Drain Current Q1
- 10 A
- (Id) Continuous Drain Current
- 10 A
- (Ugs) Gate-Source Voltage
- (Ugs th) Gate-Source Threshold Voltage
- Number of Channels
- 1
- (Pd) Power Dissipation
- 50 W
- (RDS(on)) Drain-Source Widerstand max.
- 0.14 mOhm
- (Qg) Gate Charge
