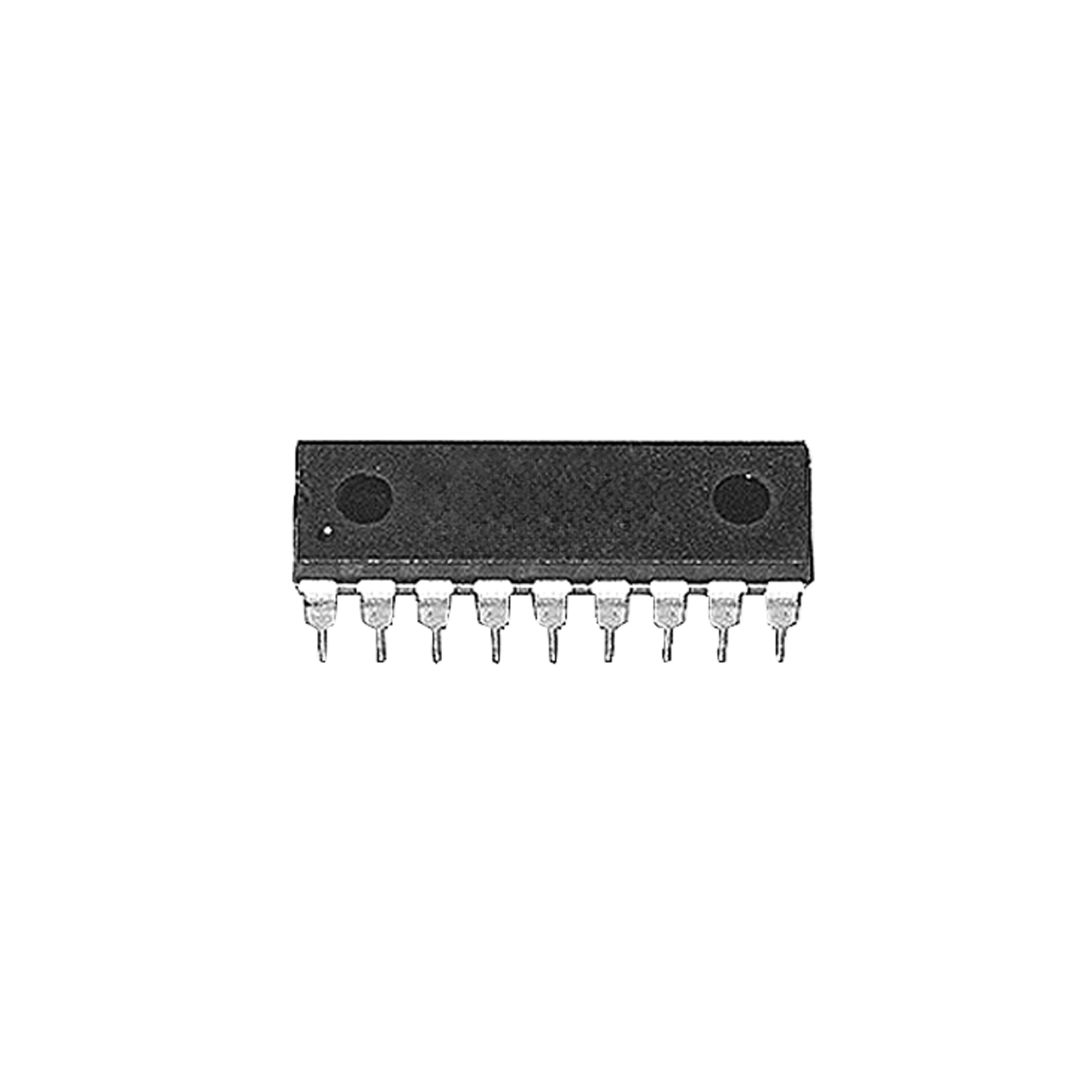

ULN2803A
STMicroelectronics Darlington Array Transistor 50V 0,5A 8 2,25W DIP-18
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90.540 Pcs. in stock
Planned delivery time
Ø 52 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (UCEO) Collector Emitter Voltage
- 50 V
- (IC) Collector Current
- 0.5 A
- Number of Channels
- 8
- (Pd) Power Dissipation
- 2.25 W
- Manufacturer Package
- DIP-18
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (UCEO) Collector Emitter Voltage
- 50 V
- (IC) Collector Current
- 0.5 A
- Number of Channels
- 8
- (Pd) Power Dissipation
- 2.25 W
