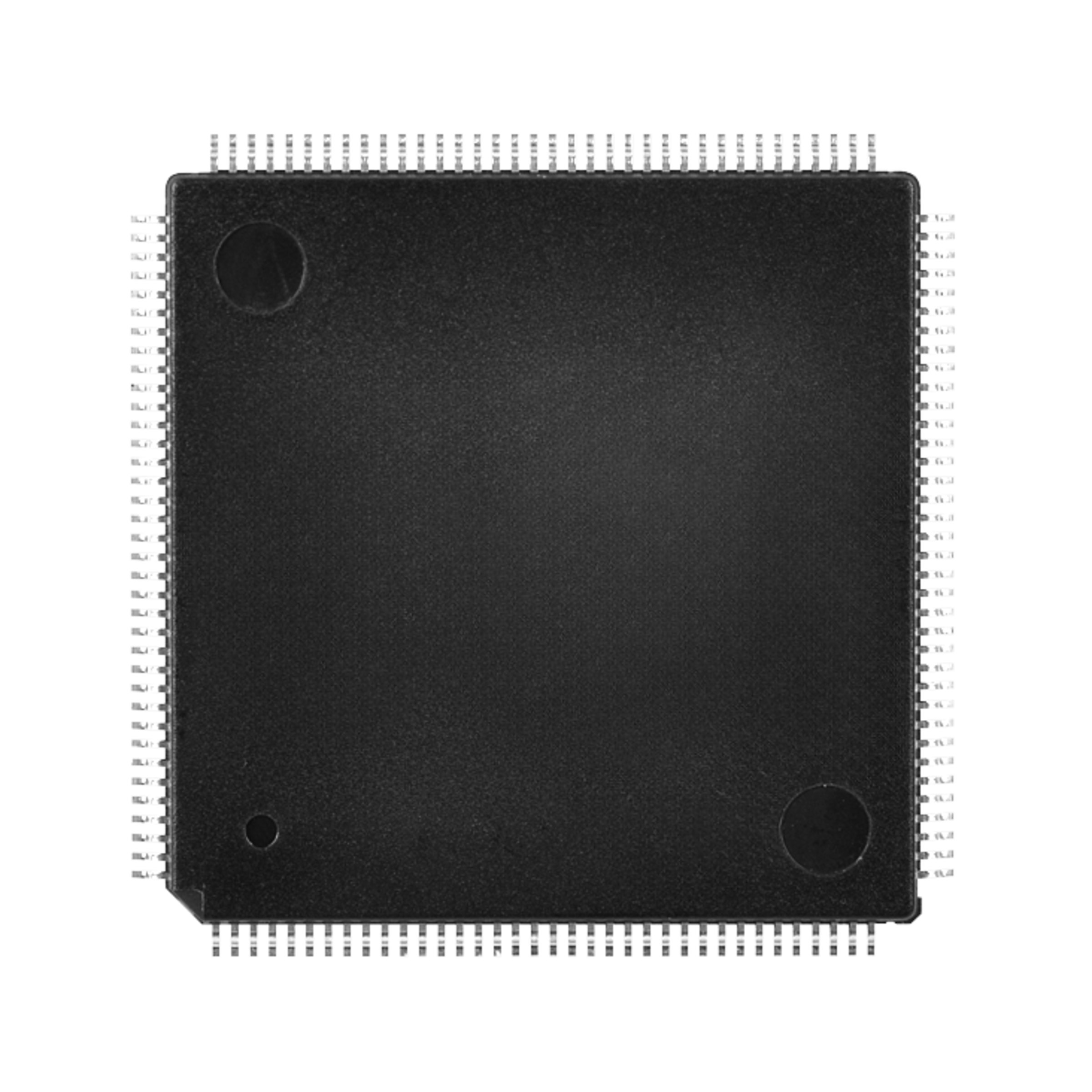

STM32H7A3ZGT6
STMicroelectronics 32-Bit Microcontroller 1.024KB 138I/O 280MHz 1.184KB ARM Cortex M7 LQFP-144
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 90 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 90 or multiple of 90)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- 32-Bit Microcontroller
- Supply Voltage Min.
- 1.62 V
- Supply Voltage Max.
- 3.6 V
- CPU clock frequency Max.
- 280 MHz
- CPU Core
- ARM Cortex M7
- Program Memory Size
- 1,024 KB
- Memory Size
- 1,184 KB
- Number of I/O Pins
- 138 I/O
- Manufacturer Package
- LQFP-144
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 85 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- CPU Core
- ARM Cortex M7
- CPU clock frequency Max.
- 280 MHz
- Databus Width
- 32 bit
- Supply Voltage Min.
- 1.62 V
- Supply Voltage Max.
- 3.6 V
- Real-Time Clock
- Number of ADC Channels
- 20
- ADC Resolution
- 2x16 bit
- Crypto Engine
- USB OTG
- Program Memory Size
- 1,024 KB
- Memory Size
- 1,184 KB
- Number of I/O Pins
- 138 I/O
- Graphics Accelerator
- Chrom-ART
- JPEG Codec
Documents
es0478-stm32h7a3xig-stm32h7b0xb-and-stm32h7b3xi-device-errata-stmicroelectronics.pdf
PCN_25 15813_EN.pdf
