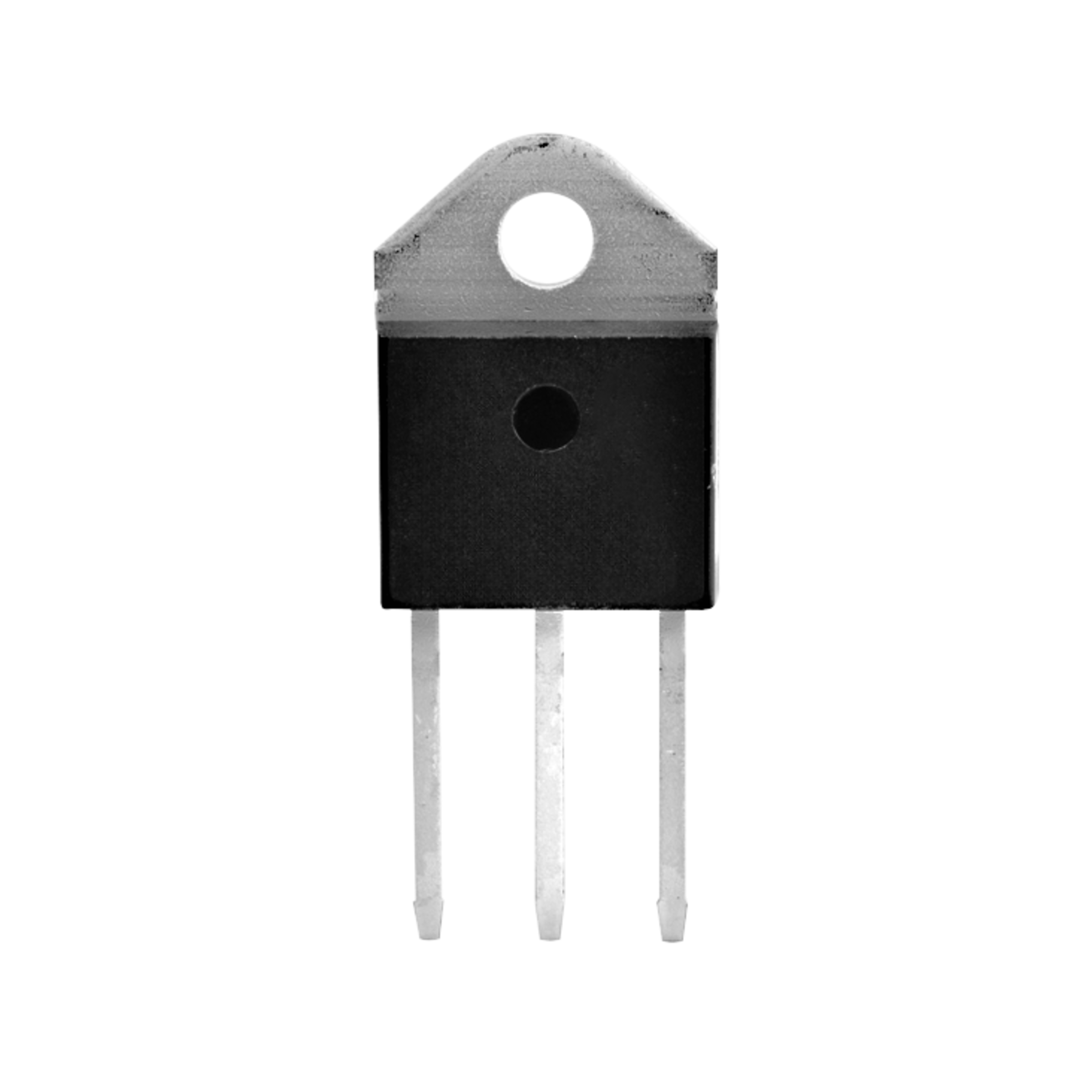

BTB26-600BRG
STMicroelectronics THT Triac 600V 25A 50mA 250A TOP-3
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
600 Pcs.
600 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 600 or multiple of 600)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 600 V
- (IT(RMS)) RMS Forward Current Max.
- 25 A
- (I(GT)) Gate Trigger Current
- 50 mA
- (IT(SM)) Non-Repetitive Peak On-State Current
- 250 A
- Manufacturer Package
- TOP-3
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (IT(RMS)) RMS Forward Current Max.
- 25 A
- (IT(SM)) Non-Repetitive Peak On-State Current
- 250 A
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 600 V
- (I(GT)) Gate Trigger Current
- 50 mA
