BTA41-700BRG

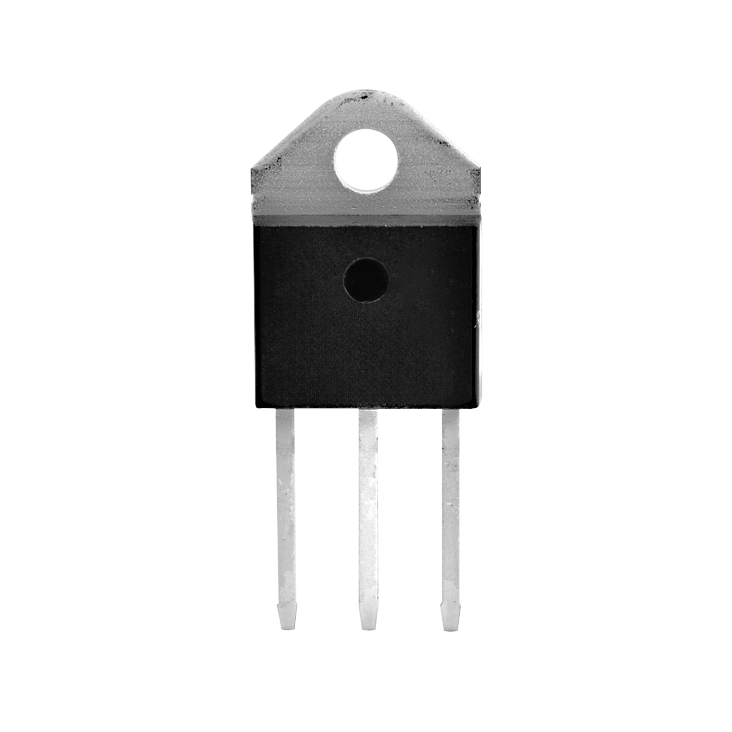

STMicroelectronics THT Triac 700V 40A 50mA 400A TOP-3
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
145 Pcs. in stock
Planned delivery time
Ø 27 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 700 V
- (IT(RMS)) RMS Forward Current Max.
- 40 A
- (I(GT)) Gate Trigger Current
- 50 mA
- (IT(SM)) Non-Repetitive Peak On-State Current
- 400 A
- Manufacturer Package
- TOP-3
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (IT(RMS)) RMS Forward Current Max.
- 40 A
- (IT(SM)) Non-Repetitive Peak On-State Current
- 400 A
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 700 V
- (I(GT)) Gate Trigger Current
- 50 mA
