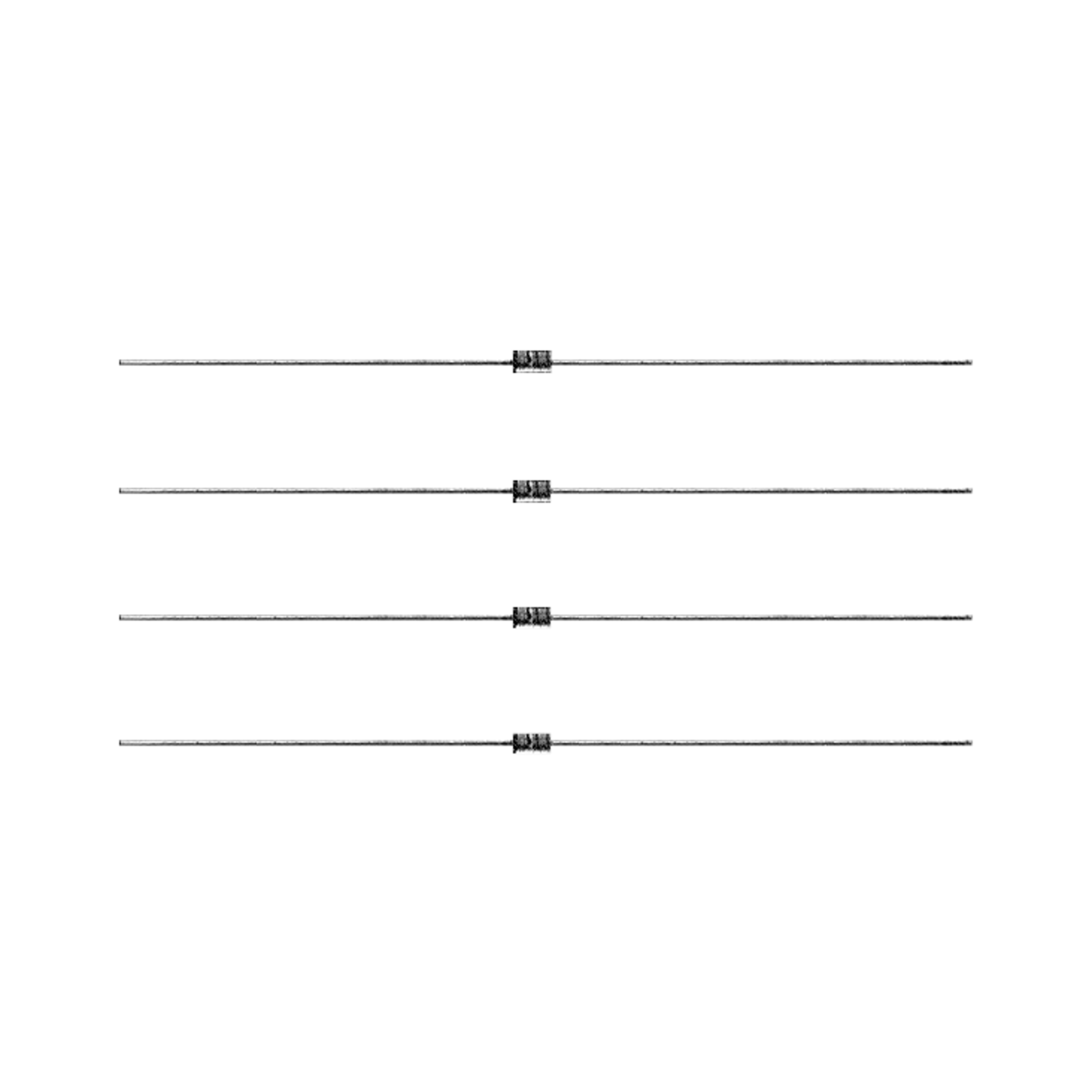

BAT48
STMicroelectronics THT Schottky Diode 0,75V 200mA 7500mA DO-35
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
36.300 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 02.02.2026
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 0.75 V
- (If) Forward Current
- 200 mA
- Peak Let-Through Surrent Max.
- 7,500 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 40 V
- (Ir) Reverse Current
- 25,000 nA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -40 °C
- Barrier Layer Temperature, max. (TJ)
- 125 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (Uf) Forward Voltage
- 0.75 V
- (If) Forward Current
- 200 mA
- Peak Let-Through Surrent Max.
- 7,500 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 40 V
- (Ir) Reverse Current
- 25,000 nA
- (Cd) Diode Capacitance
- 18 pF
Documents
EOL_25 15674_EN.pdf
