SMA-PCBW

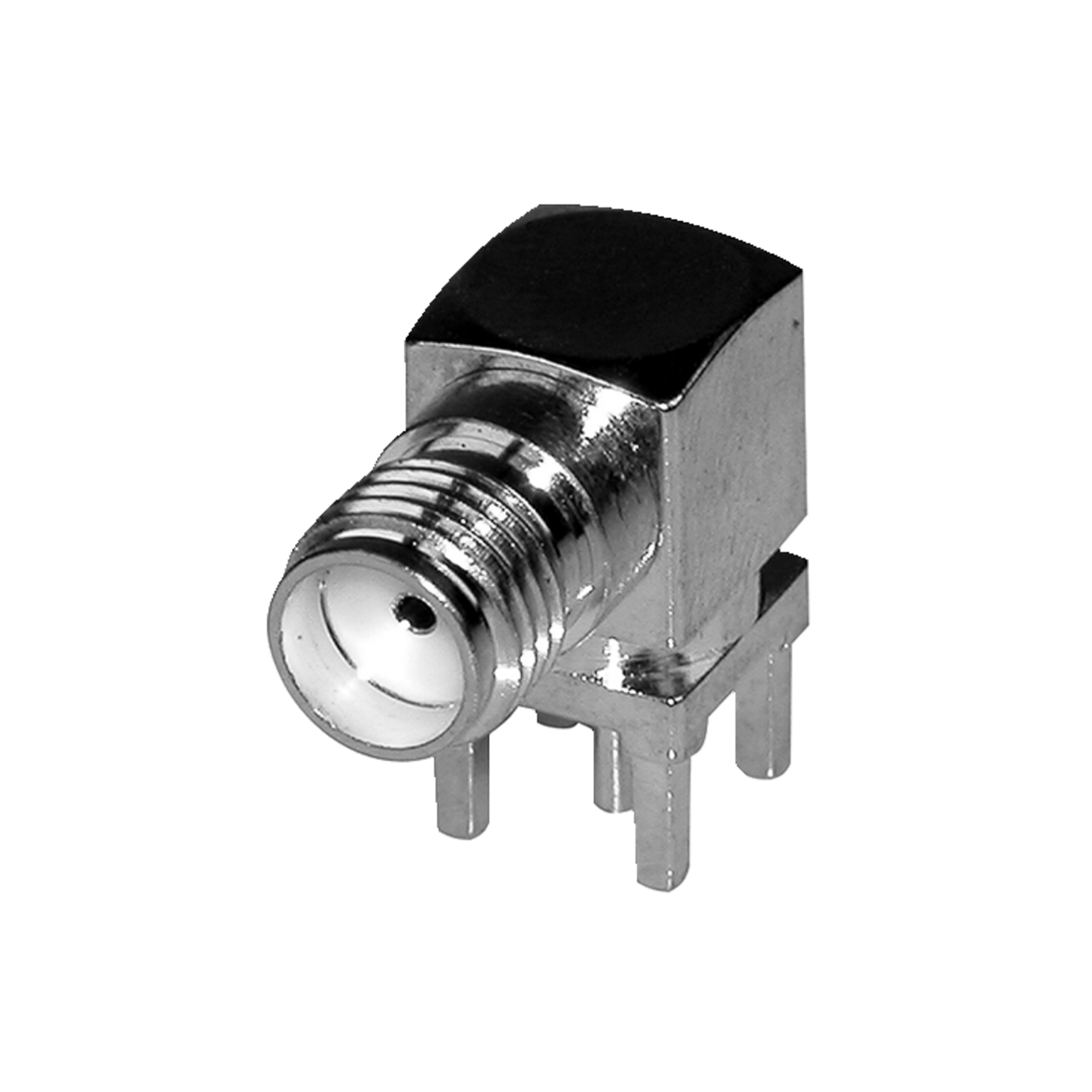

Socket SMA PCBW Plug Screw 90° 1 Pole Solder
Manufacturer Part No.
SMA-PCBW
Schukat Part No.
SMA-PCBW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
185 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Socket
- Connector Contact
- Solder
- Series
- SMA PCBW
- Housing material
- Brass
- Housing
- round
- Design
- PCB
- Characteristic Impedance
- 50 Ohm
- Insulating body
- Teflon (PTFE)
- Number of poles
- 1
- Contact Type
- SMA
- Alignment
- 90°
- Locking Type
- Screw
- RoHS-Conform
Specifications
Open all

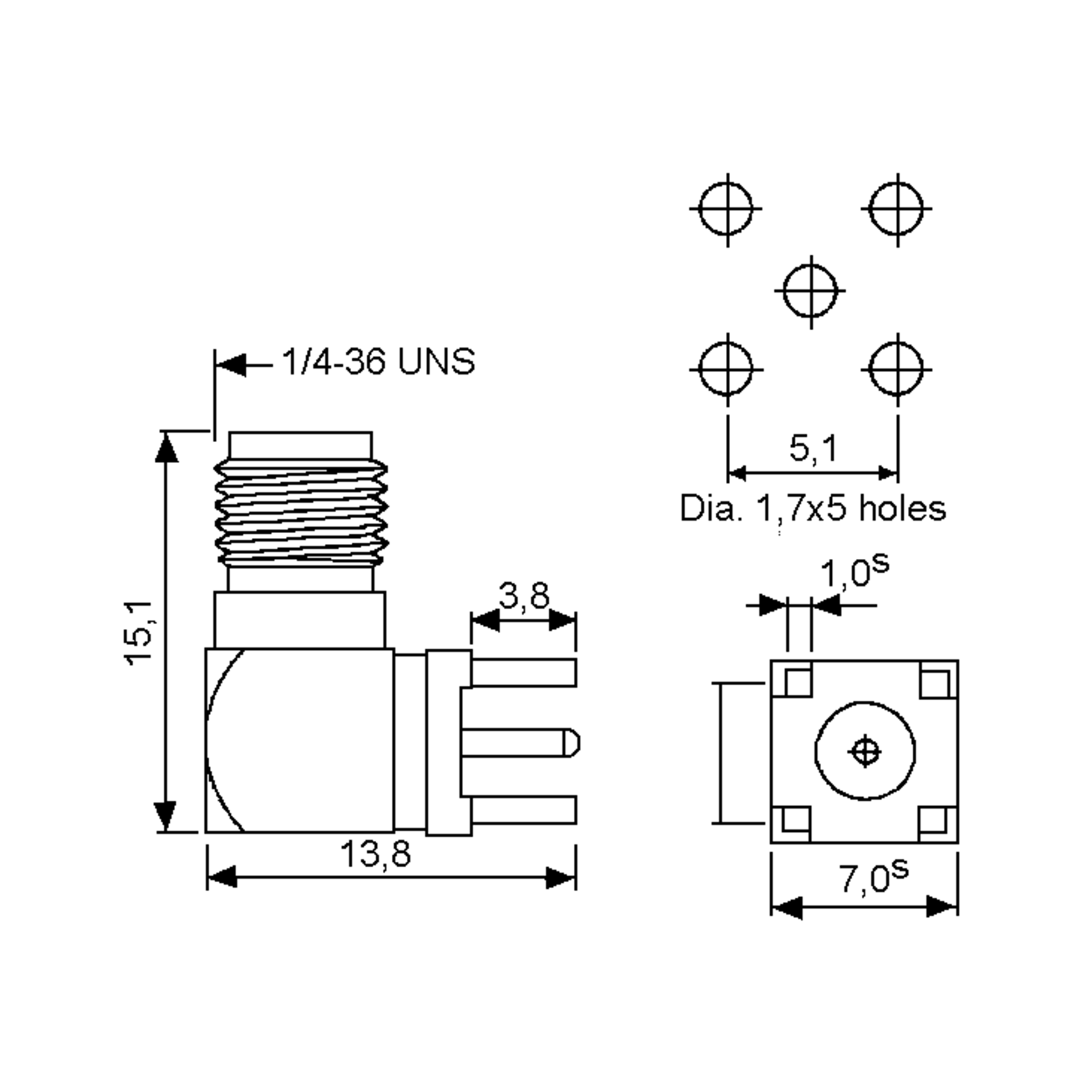

Dimensions and Weights
- Dimension: Length
- 15.1 mm
- Dimension: Width
- 7 mm
- Dimension: Height
- 13.8 mm
Technical Features
- Characteristic Impedance
- 50 Ohm
Mechanical Features
- Housing material
- Brass
- Insulating body
- Teflon (PTFE)
- Contact Surface Input
- vergoldet
