SMA-90
Installation socket SMA 90 Socket Screw straight 1 Pole Solder
Manufacturer Part No.
SMA-90
Schukat Part No.
SMA-90
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
65 Pcs. in stock
Next Stock Receipt
Week 23/2026
100 Pcs.
100 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Installation socket
- Connector Contact
- Solder
- Series
- SMA 90
- Housing material
- Brass, gold-plated
- Housing
- round
- Design
- Panel
- Characteristic Impedance
- 50 Ohm
- Insulating body
- Teflon (PTFE)
- Number of poles
- 1
- Contact Type
- SMA
- Alignment
- straight
- Locking Type
- Screw
- RoHS-Conform
Specifications
Open all

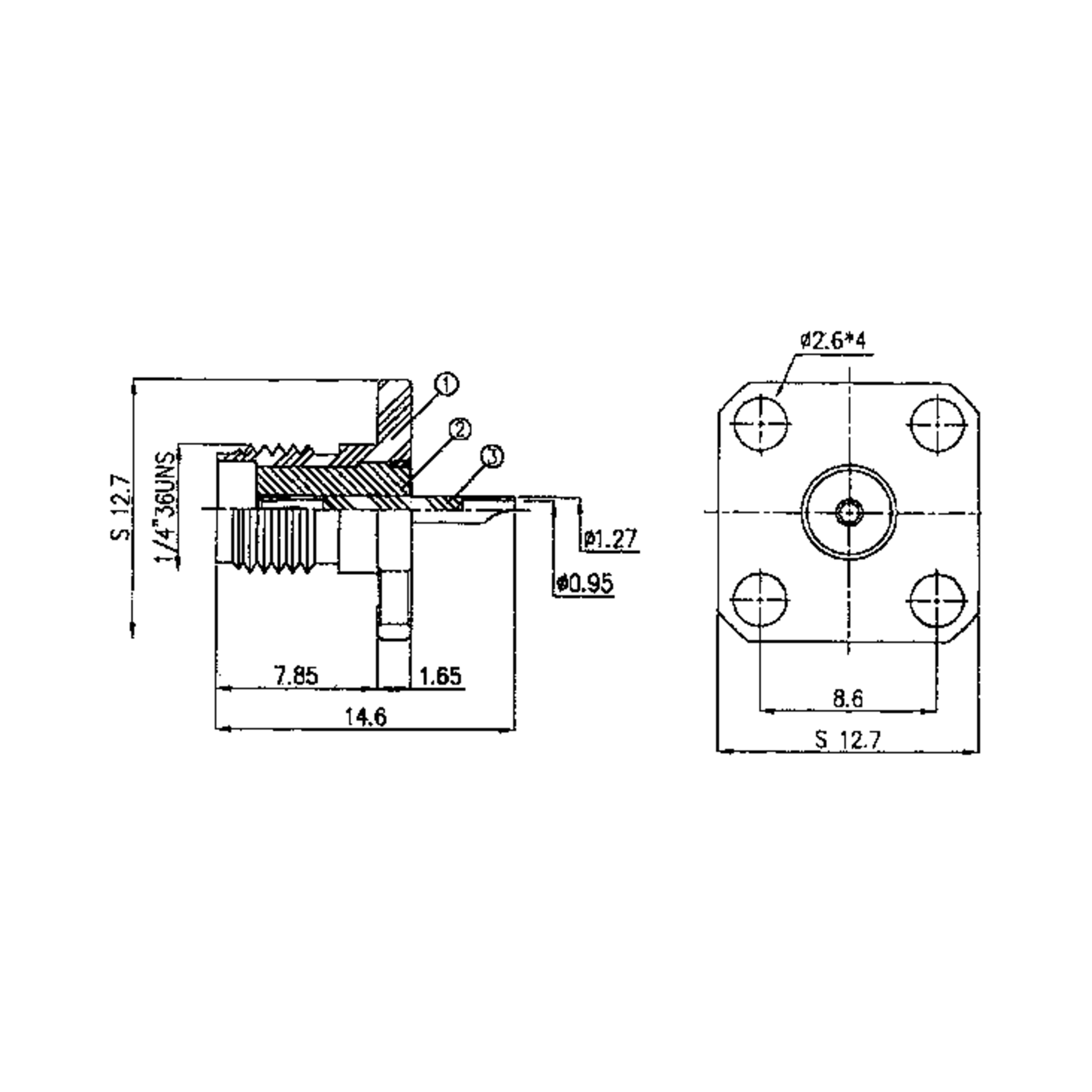

Dimensions and Weights
- Dimension: Length
- 14.6 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 12.7 mm
Technical Features
- Characteristic Impedance
- 50 Ohm
Mechanical Features
- Housing material
- Brass, gold-plated
- Insulating body
- Teflon (PTFE)
- Contact Surface Input
- vergoldet
