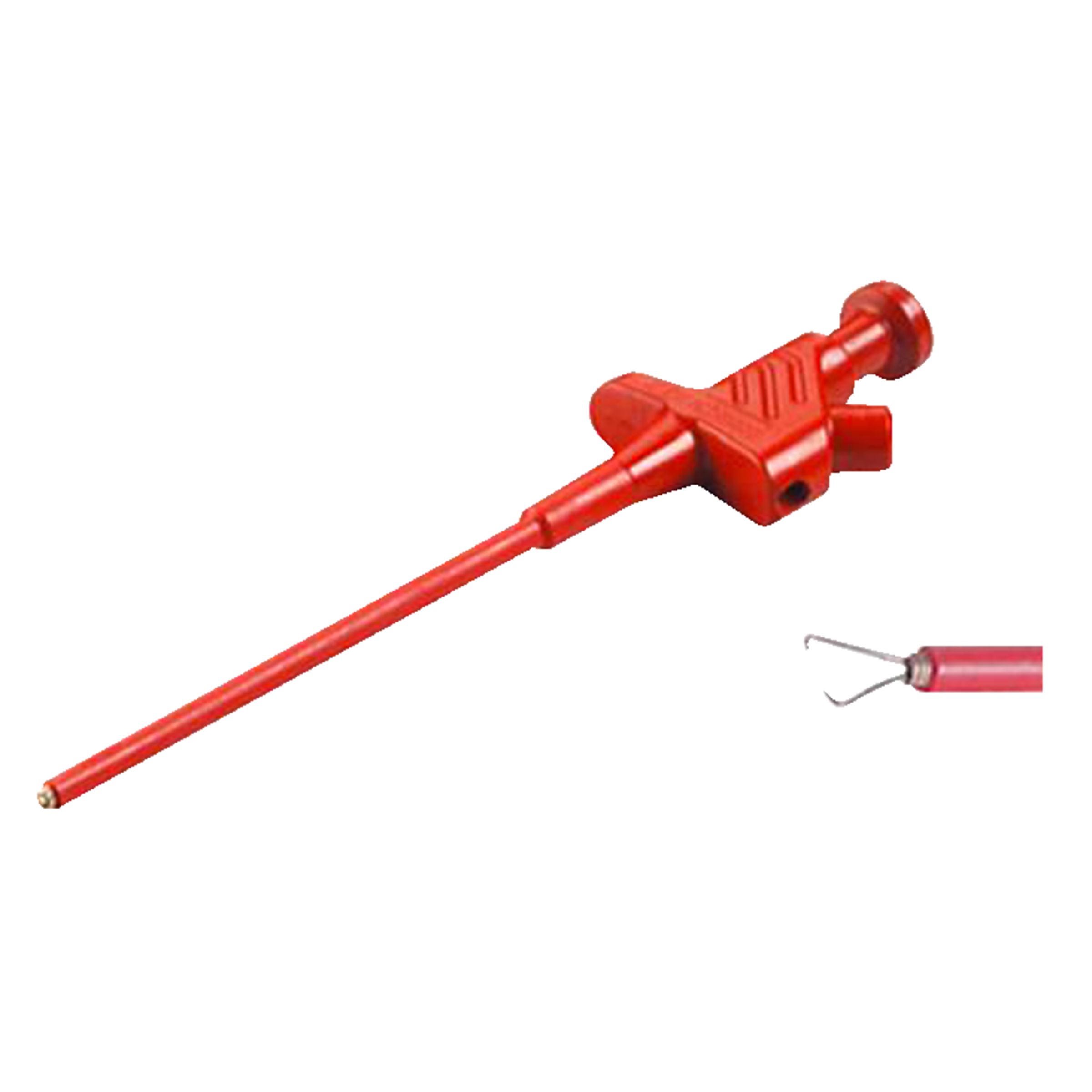

KLEPS30RT
SKS Kontakttechnik GmbH Terminal test probe KLEPS 30 round red Plug in 4mm 50mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
27 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 28.11.2024
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Terminal test probe
- Connector Contact
- Plug in
- Series
- KLEPS 30
- Colour
- red
- Housing material
- Phenoplaste (PF)
- Housing
- round
- Cable diameter, max.
- 4 mm
- Operating Temperature Max.
- 80 °C
- Rated voltage DC
- 60 V DC
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 148 mm
- Cable diameter, max.
- 4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Rated voltage DC
- 60 V DC
- Contact resistance
- 50 mOhm
Mechanical Features
- Housing material
- Phenoplaste (PF)
- Contact Surface Input
- vernickelt
