160500.1GT

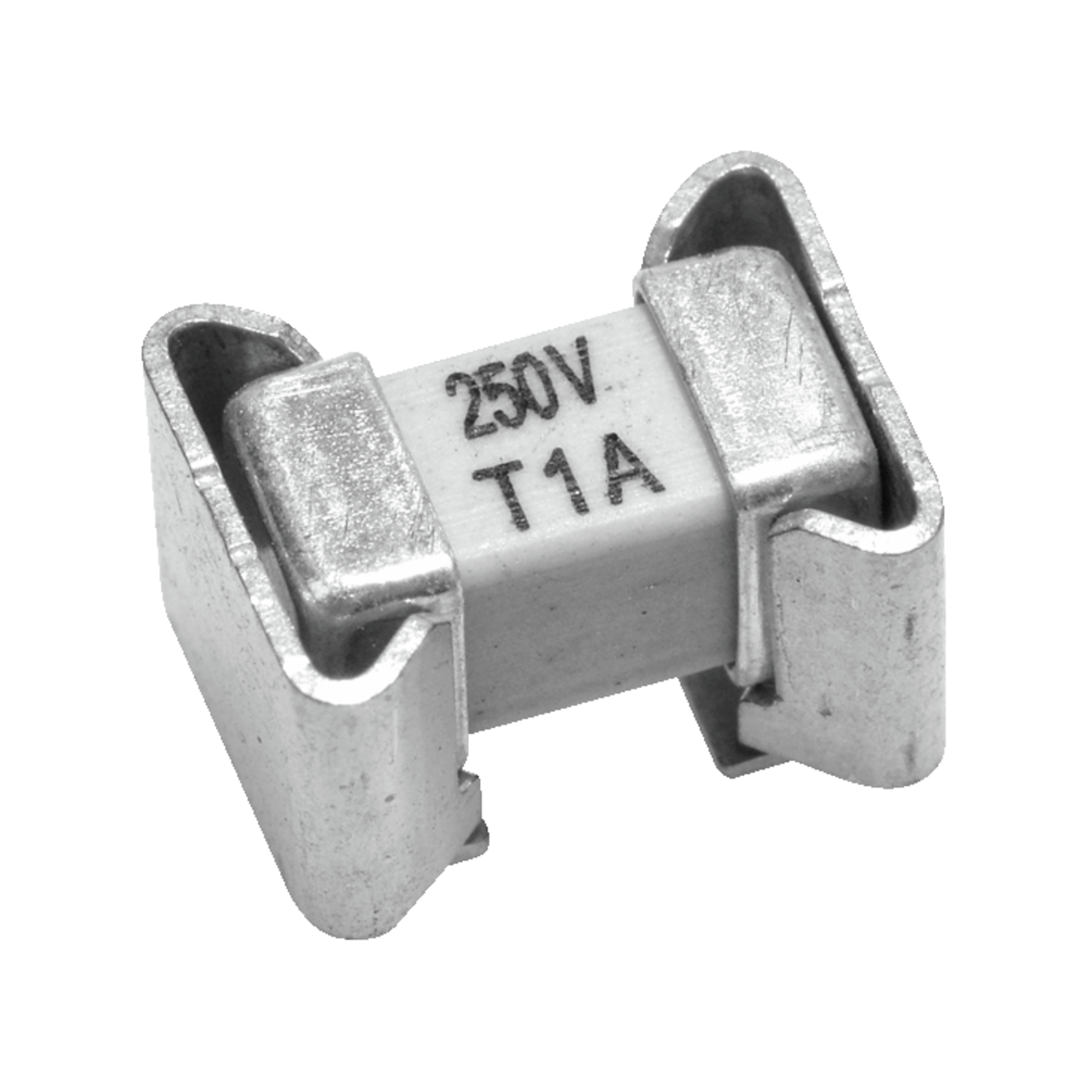

SIBA SMD fuse link inert 9,5x7,4mm 250VAC 1A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
720 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- 160500
- Characteristic
- inert
- Package/Case
- 9,5 x 7,4 mm
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 140 mV
- Rated current
- 1 A
- RoHS-Conform
Specifications
Open all

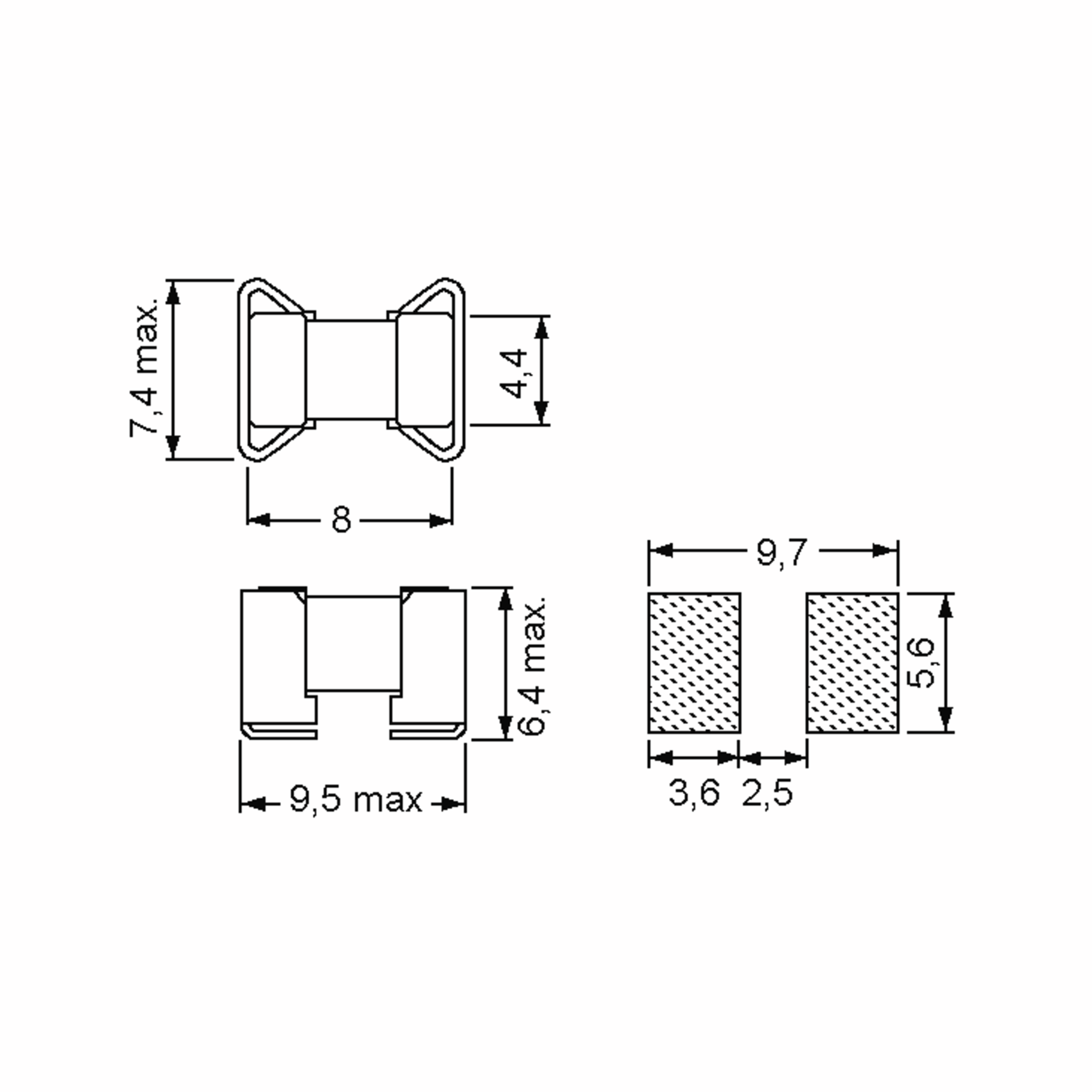

Dimensions and weights
- Dimension: Length
- 8 mm
- Dimension: Width
- 7.4 mm
- Dimension: Height
- 6.4 mm
Technical features
- Rated current
- 1 A
- Melting integral
- 6.8 A²/s
- Rated breaking capacity
- 100 A
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 140 mV
- Power loss, max.
- 500 mW
- Solderability
- 260 °C / 10 s
Safety/Certifications
- Approvals
- cULus
- Standards
- IEC60127
