160016.3,15GT
SIBA SMD fuse 160016 time-lag 1.500A 305VAC 3,15A 16,4x4,4mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1500 or multiple of 1500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- 160016
- Characteristic
- time-lag
- Package/Case
- 16,4 x 4,4 mm
- Rated current
- 3.15 A
- Rated voltage V AC
- 305 V AC
- RoHS-Conform
Specifications
Open all

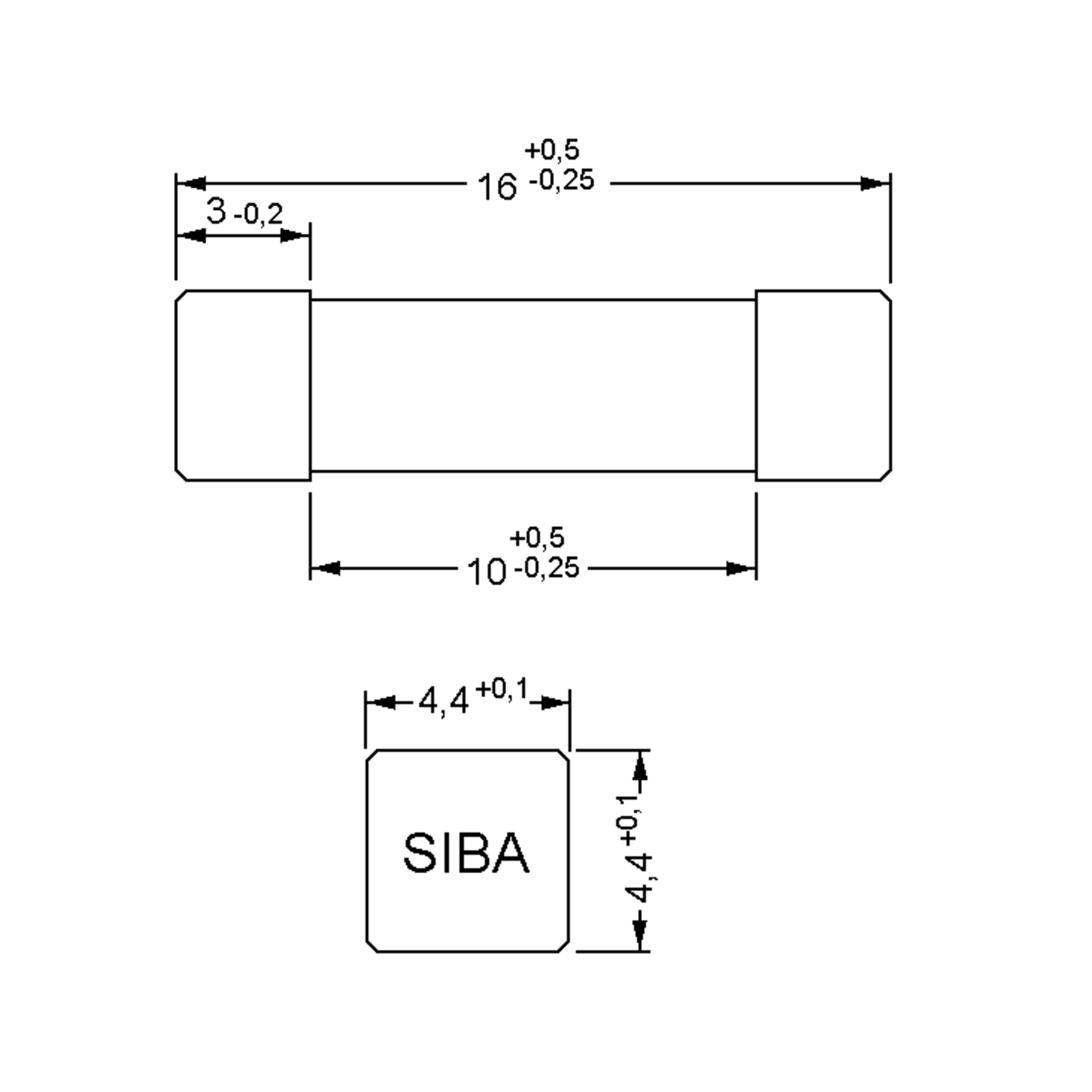

Dimensions and Weights
- Dimension: Length
- 16 mm
- Dimension: Width
- 4.4 mm
- Dimension: Height
- 4.4 mm
Technical Features
- Rated current
- 3.15 A
- Melting integral
- 35 A²/s
- Rated breaking capacity
- 1.500 A
- Rated voltage V AC
- 305 V AC
- Voltage drop
- 200 mV
- Power loss, max.
- 1.200 mW
- Solderability
- 260 °C / 10 s
Safety/Certifications
- Approvals
- SEMKO
- cULus
- Standards
- IEC 60127-4/2, UL 248-14
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
