5314-16YBSOBW01

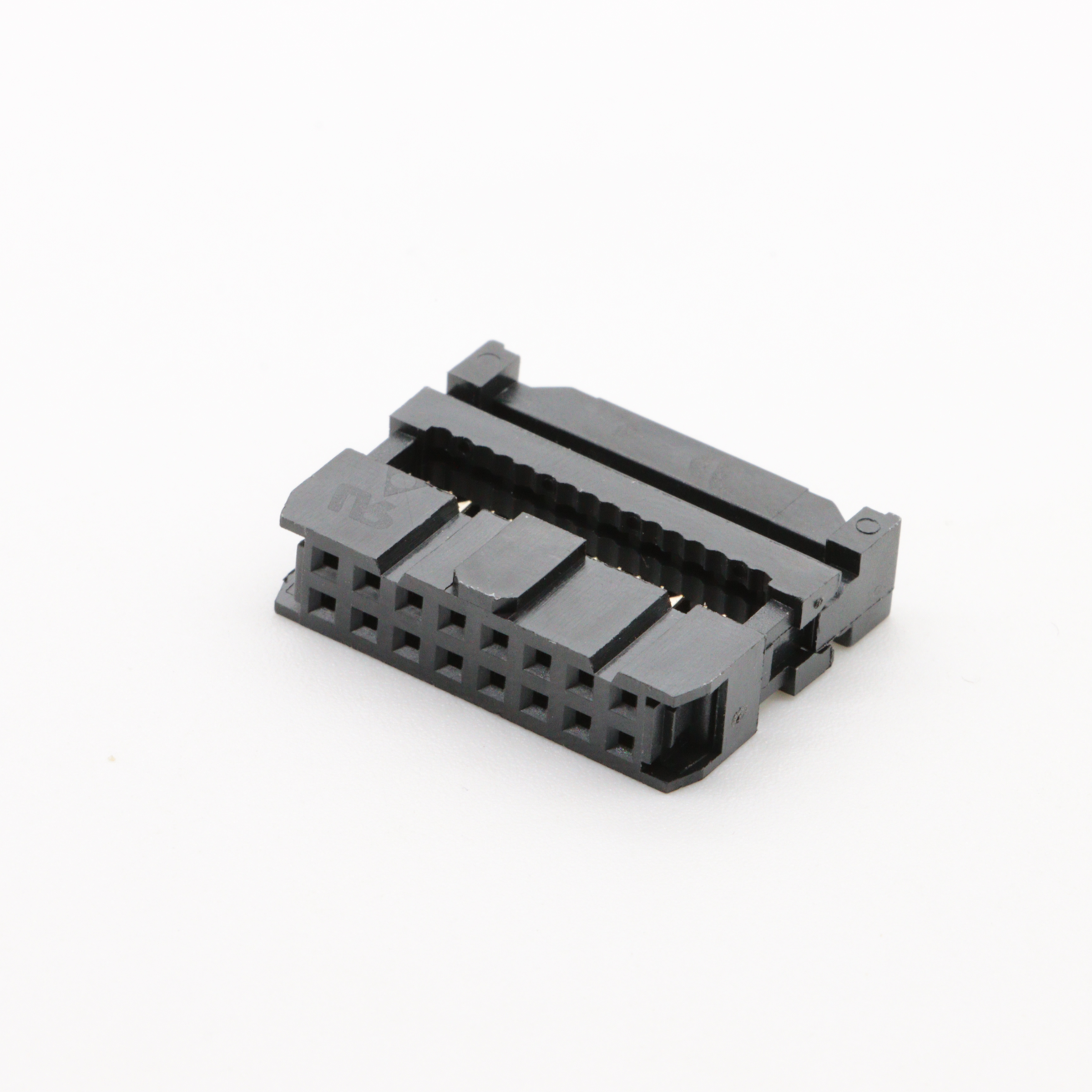

SHENZHEN JINLING ELECTRONICS Post connector 5314 Socket Header Latching lug 2-row 16 Pole Pitch2,54mm black
Manufacturer Part No.
5314-16YBSOBW01
Schukat Part No.
PFLZ16
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.328 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 132 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Post connector
- Connector Contact
- IDC
- Series
- 5314
- Colour
- black
- Housing material
- Polybutylenterephthalat (PBT)
- Housing
- 2-row
- Design
- Header
- Number of poles
- 16
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Locking Type
- Latching lug
- Operating Temperature Max.
- 105 °C
- Rated current
- 3 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 25.12 mm
- Dimension: Width
- 6.9 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
- Solderability
- 200 °C / 10 s °C / s
- Test voltage
- 1,000 V AC
- Contact resistance
- 20 mOhm
Mechanical Features
- Housing material
- Polybutylenterephthalat (PBT)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
