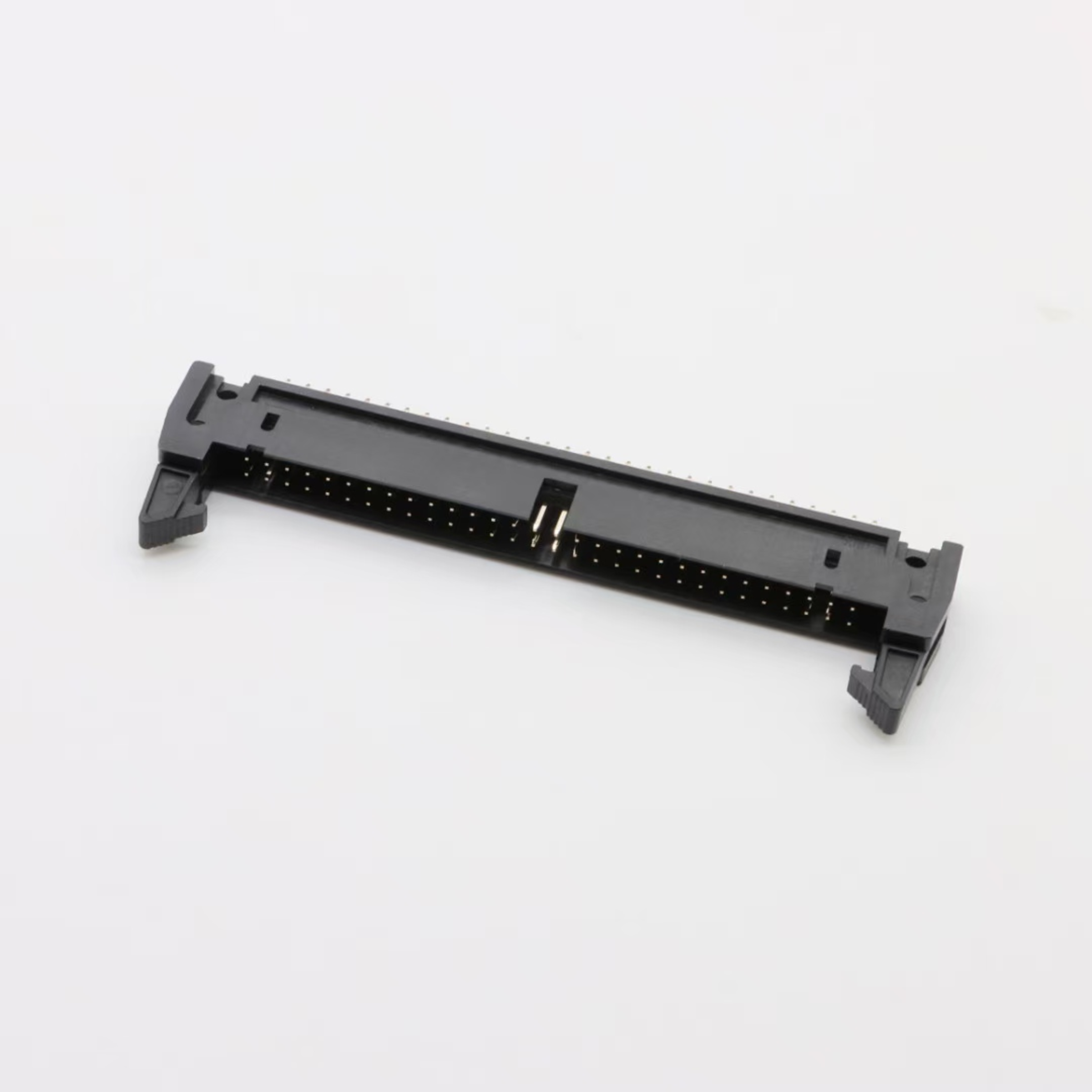

3310-60SGOCBLA01
SHENZHEN JINLING ELECTRONICS 60pol. 95,52mm
Manufacturer Part No.
3310-60SGOCBLA01
Schukat Part No.
PSLZ60
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5000 or multiple of 5000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 3310_S
- Colour
- black
- Number of poles
- 60
- Dimension: Length
- 95.52 mm
- Rated current
- 3 A
- Pitch
- 2.54 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 95.52 mm
- Width (incl. pins)
- 8.2 mm
- Height (incl. pins)
- 30.7 mm
- Pitch
- 2.54 mm
- Cable length
- 8.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Rated current
- 3 A
- Solderability
- 260 °C / 10 s °C / s
- Dielectric strength
- 1,000 V RMS
- Contact resistance
- 20 mOhm
Mechanical features
- Kontaktbeschichtung Eingang
- vergoldet
