3210-14SGOCBKOOA01

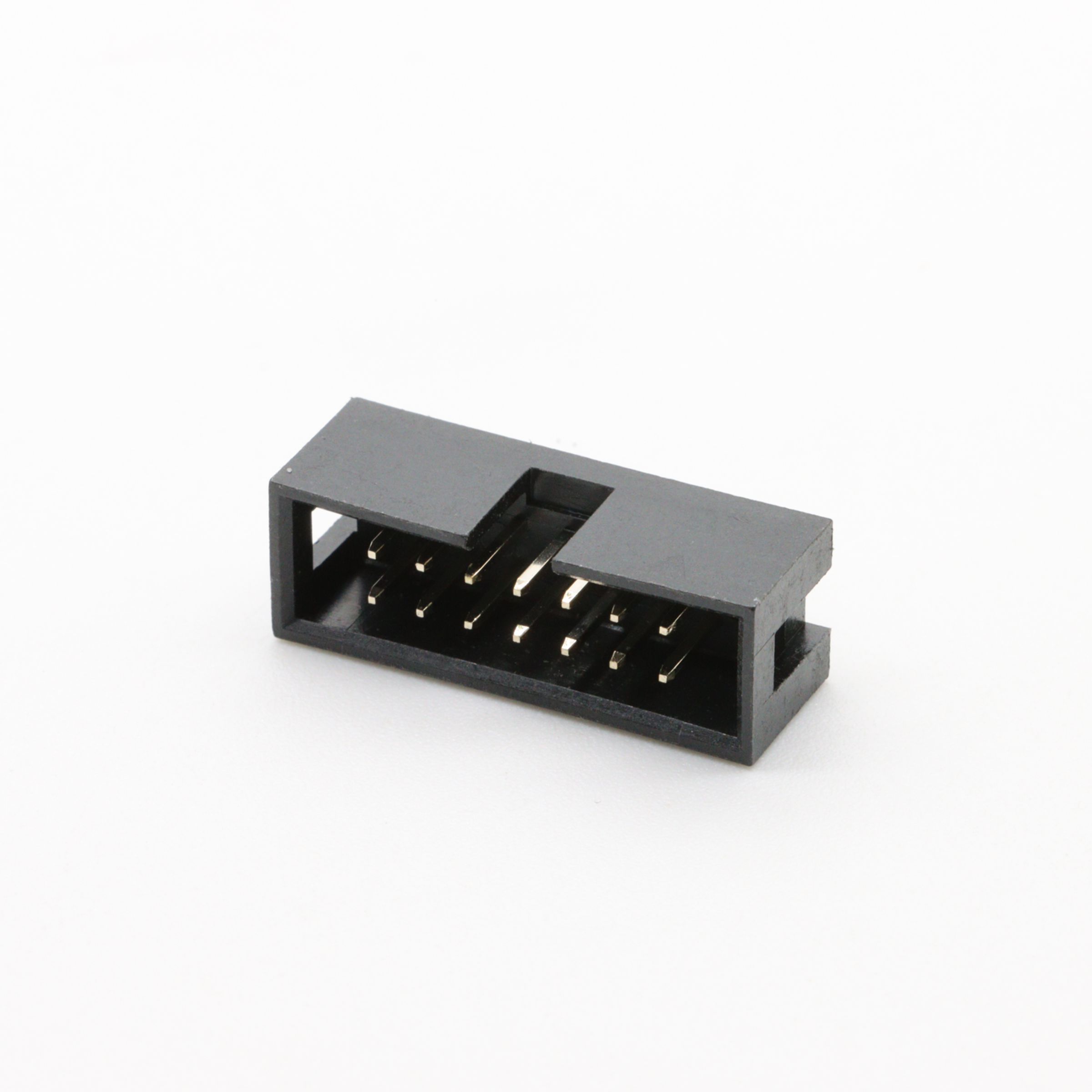

SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXS Pin Box Header 2-row straight 14 Pole Pitch2,54mm black vergoldet
Manufacturer Part No.
3210-14SGOCBKOOA01
Schukat Part No.
PSBZ14
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.080 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Tray pin strip
- Connector Contact
- Solder
- Series
- 3210XXS
- Colour
- black
- Housing material
- Polyamide (PA) 6T
- Housing
- 2-row
- Design
- Box Header
- Number of poles
- 14
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 3 A
- Rated voltage DC
- 1,000 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 43.16 mm
- Dimension: Height
- 12.1 mm
- Dimension: Depth
- 8.9 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
- Rated voltage AC
- 1,000 V AC
- Rated voltage DC
- 1,000 V DC
- Solderability
- 260 °C / 10 s °C / s
- Insulation resistance
- 1.000 mOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Housing material
- Polyamide (PA) 6T
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
