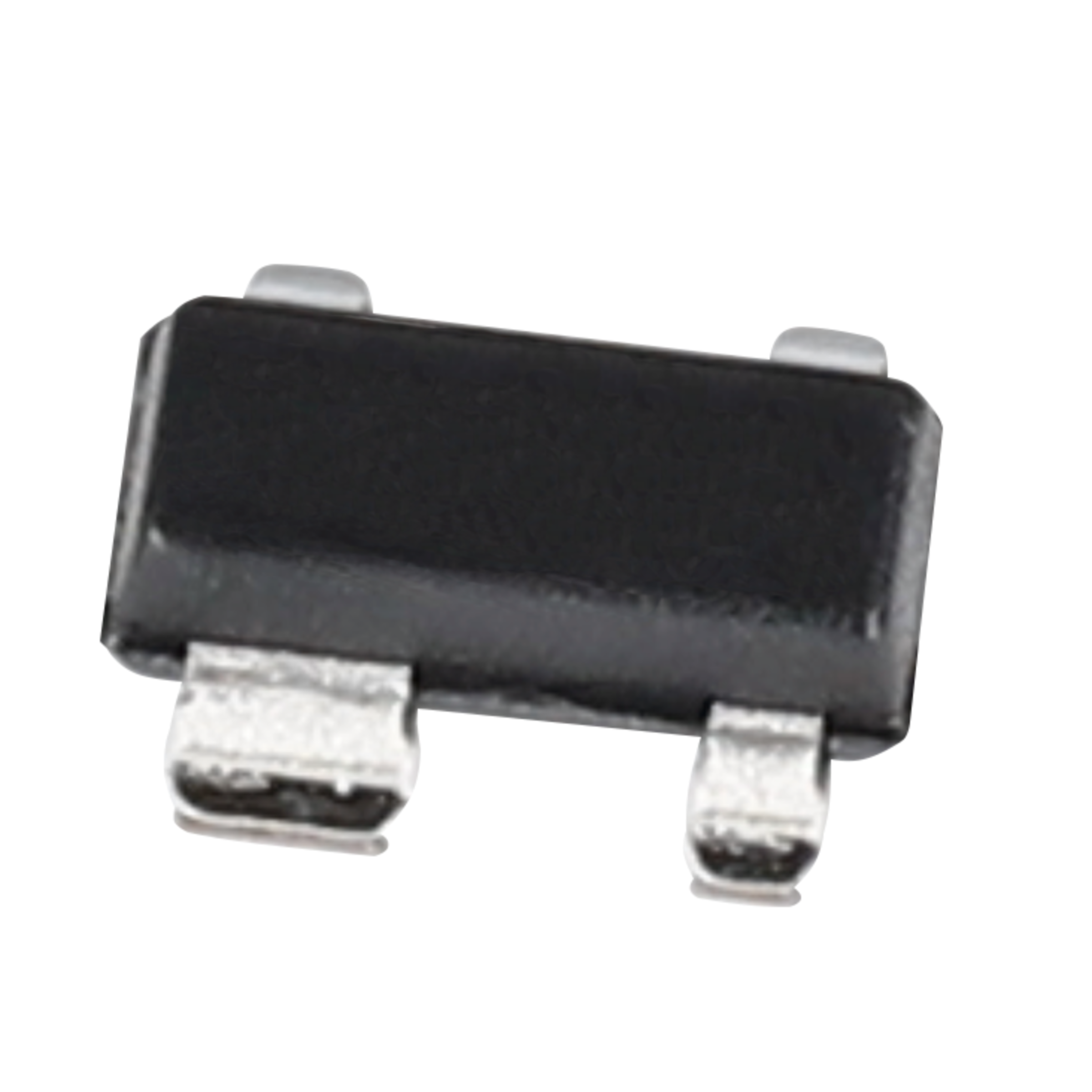

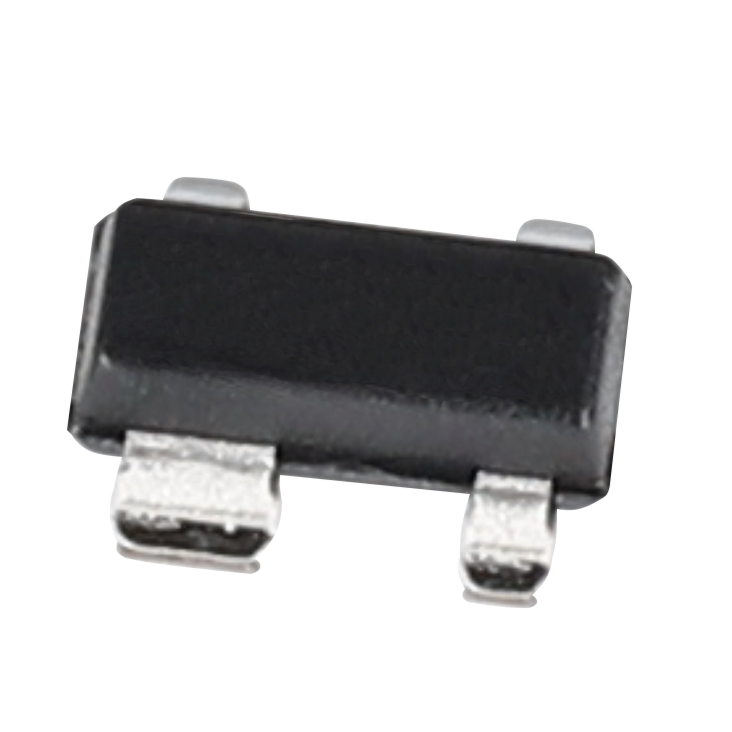

SGM812B-RXKA4G/TR
SG MICRO Voltage Monitor IC 2,63V act.-high SOT-143
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.000 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Voltage Monitor IC
- Threshold Voltage
- 2.63 V
- Reset Output
- act.-high
- Reset Pulse Width Min.
- 140 ms
- Reset Pulse Width Max.
- 290 ms
- Manufacturer Package
- SOT-143
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Electrical properties
- Threshold Voltage
- 2.63 V
- Supply Current
- 0.6 µA
- Reset Pulse Width Min.
- 140 ms
- Reset Pulse Width Max.
- 290 ms
- Supply Voltage Min.
- 1 V
- Supply Voltage Max.
- 5.5 V
- Reset Output
- act.-high
