C10S-3R0-0005

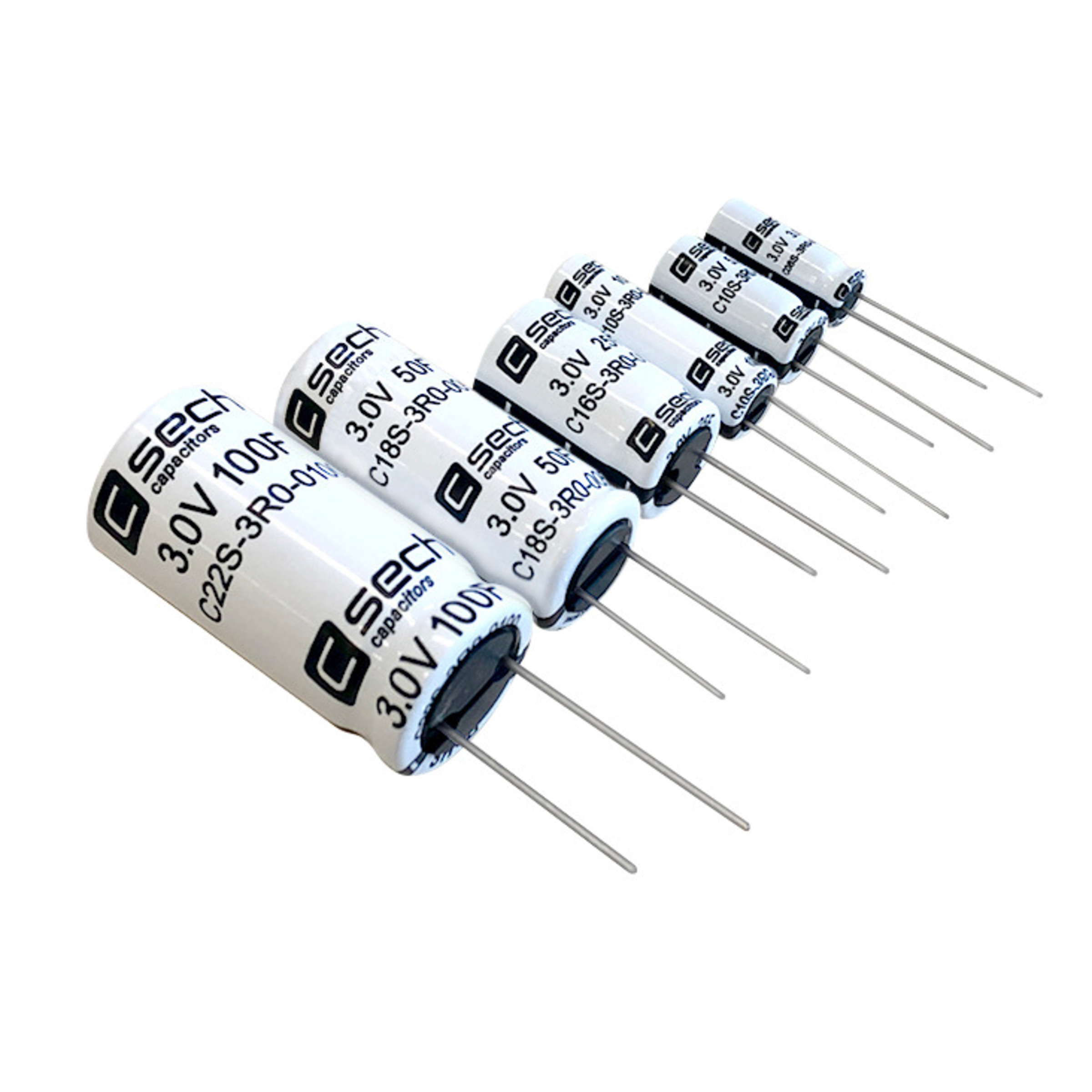

SECH SA Ultracapacitor C10S THT radial 3V 5F P5,0mm -40°C...65°C Low ESR
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
775 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ultracapacitor
- Capacity
- 5 F
- Capacity Tolerance
- -10/+20%
- Rated voltage DC
- 3 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 5 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 65 °C
- RoHS-Conform
Specifications
Open all

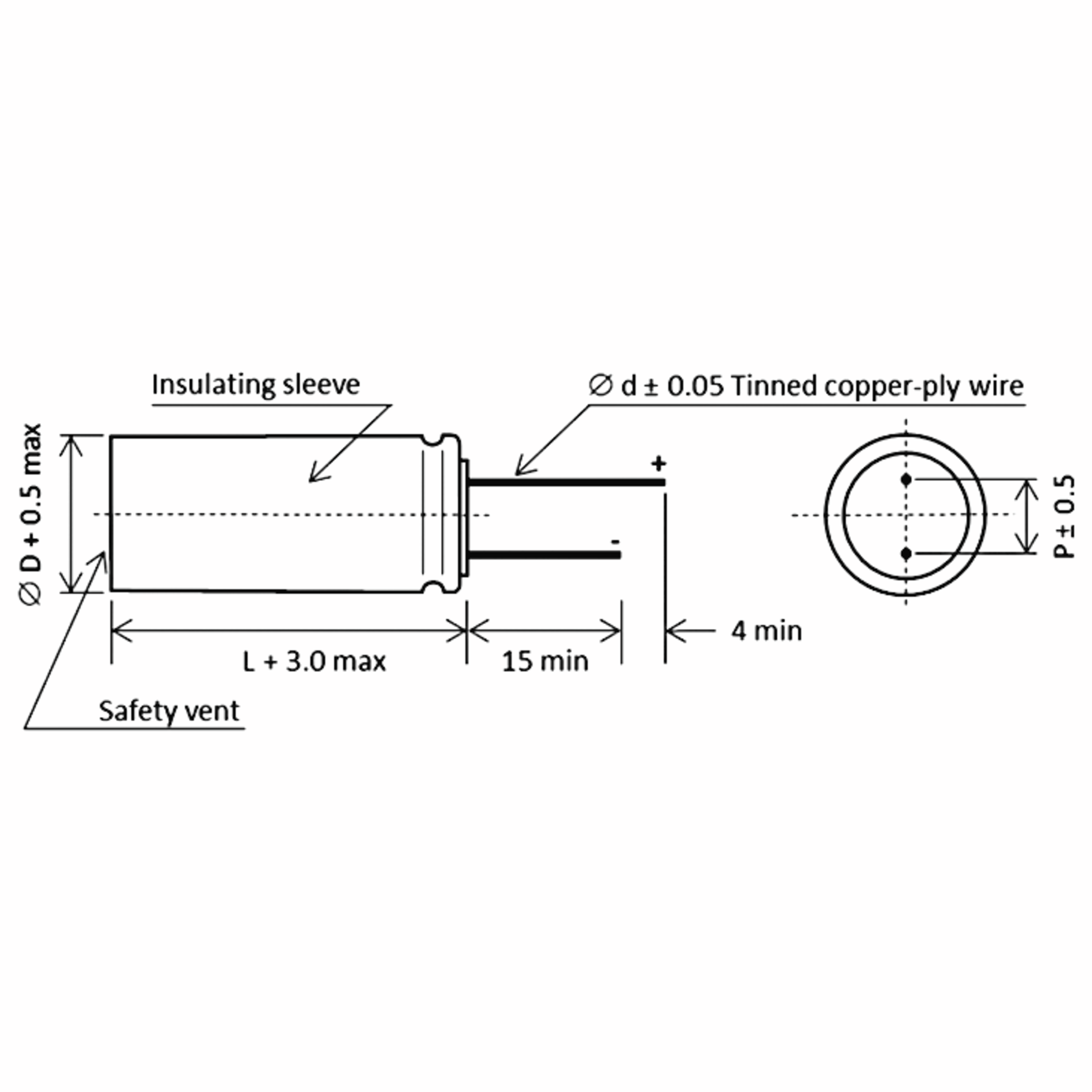

Dimensions and Weights
- Diameter
- 10 mm
- Dimension: Height
- 20 mm
- Wire diameter
- 0.6 mm
- Weight
- 2.3 g
- Pitch
- 5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 65 °C
Technical Features
- Solderability
- 260°C / 5s
- Capacity
- 5 F
- Capacity
- 5
- Capacity unit
- F
- Capacity Tolerance
- -10/+20%
- Current, max.
- 6.1 A
- Equivalent series resistance (ESR)
- 40 mOhm
- Rated voltage DC
- 3 V
- Service life
- 1.000 h
Safety/Certifications
- Standards
- Shock and vibration: MIL-STD-202, Method 213, Fig. 1, Condition C; Method 204 (according to AEC-Q200)
