Filter articles
Type
Type
Manufacturer
Manufacturer
Series
Series
Assembly
Assembly
Tripping time with specified reference current IS
Tripping time with specified refe ...
Tripping time with specified reference current IS
Rated current
Rated current
Interrupting Current, Max.
Interrupting Current, Max.
Rated voltage V AC
Rated voltage V AC
Rated voltage V DC
Rated voltage V DC
Max. resistance 1 hour after switching off
Max. resistance 1 hour after swit ...
Max. resistance 1 hour after switching off
Operating temperature range, min.
Operating temperature range, min.
Operating temperature range, max.
Operating temperature range, max.
Housing
Housing
Pitch
Pitch
Dimension: Length
Dimension: Length
Dimension: Width
Dimension: Width
Dimension: Height
Dimension: Height
Diameter
Diameter
Results (331)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly | Tripping time with specified reference current IS | Rated current | Interrupting Current, Max. | Rated voltage V AC | Rated voltage V DC | Max. resistance 1 hour after switching off | Operating temperature range, min. | Operating temperature range, max. | Housing | Pitch | Dimension: Length | Dimension: Width | Dimension: Height | Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
126 |  | Customer Part No. Customer Project No. | 4.420 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Littelfuse | radial | 7.2 s | 0.9 A | 40.0 A | 72.0 V DC | 470.0 mOhm | -40.0 °C | 85.0 °C | 5.8 mm | 3.0 mm | 23.8 mm | 11.2 mm | |||||||||

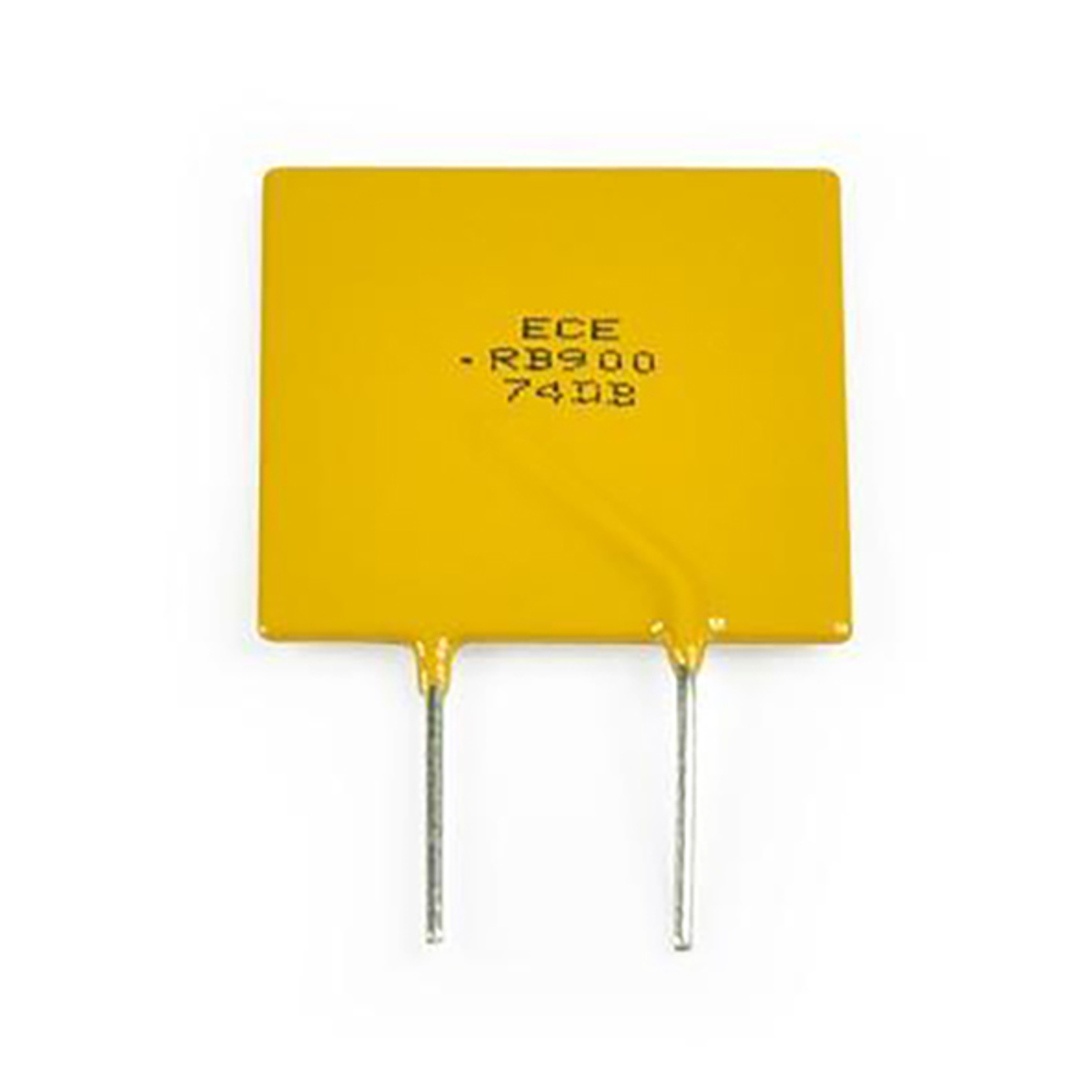

127 | | Manufacturers Part No. ERFRB1353000Z(ERFRB1353000Z) ECE Poly-Switch Fuse ERFRB 30VDC 1,35A radial RM5,1mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 7.3 s | 1.35 A | 40.0 A | 30.0 V DC | 130.0 mOhm | -40.0 °C | 85.0 °C | 5.1 mm | 8.9 mm | 3.0 mm | 21.1 mm | ||||||||
128 | | Customer Part No. Customer Project No. | 640 Pcs. Planned Delivery Time Ø 11 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Littelfuse | radial | 9.6 s | 1.35 A | 40.0 A | 72.0 V DC | 300.0 mOhm | -40.0 °C | 85.0 °C | 5.8 mm | 3.0 mm | 26.7 mm | 14.5 mm | |||||||||
129 | | Manufacturers Part No. ERFRB1853000Z(ERFRB1853000Z) ECE Poly-Switch Fuse ERFRB 30VDC 1,85A radial RM5,1mm | Customer Part No. Customer Project No. | 1.030 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 8.7 s | 1.85 A | 40.0 A | 30.0 V DC | 90.0 mOhm | -40.0 °C | 85.0 °C | 5.1 mm | 10.2 mm | 3.0 mm | 23.6 mm | ||||||||
130 | | Customer Part No. Customer Project No. | 2.200 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Littelfuse | radial | 12.6 s | 1.85 A | 40.0 A | 72.0 V DC | 190.0 mOhm | -40.0 °C | 85.0 °C | 5.8 mm | 3.0 mm | 30.0 mm | 17.5 mm | |||||||||
131 | | Manufacturers Part No. ERFRB2503000Z(ERFRB2503000Z) ECE Poly-Switch Fuse ERFRB 30VDC 2,5A radial RM5,1mm | Customer Part No. Customer Project No. | 850 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 10.3 s | 2.5 A | 40.0 A | 30.0 V DC | 70.0 mOhm | -40.0 °C | 85.0 °C | 5.1 mm | 11.4 mm | 3.0 mm | 25.9 mm | ||||||||
132 | | Customer Part No. Customer Project No. | 680 Pcs. Planned Delivery Time Ø 11 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Littelfuse | radial | 19.8 s | 3.0 A | 40.0 A | 72.0 V DC | 100.0 mOhm | -40.0 °C | 85.0 °C | 10.9 mm | 3.0 mm | 36.2 mm | 23.9 mm | |||||||||
133 | | Manufacturers Part No. ERFRB5003000Z(ERFRB5003000Z) ECE Poly-Switch Fuse ERFRB 30VDC 5A radial RM10,2mm | Customer Part No. Customer Project No. | 830 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 14.5 s | 5.0 A | 40.0 A | 30.0 V DC | 50.0 mOhm | -40.0 °C | 85.0 °C | 10.2 mm | 14.0 mm | 3.0 mm | 32.5 mm | ||||||||
134 | | Manufacturers Part No. ERFRB7003000Z(ERFRB7003000Z) ECE Poly-Switch Fuse ERFRB 30VDC 7A radial RM10,2mm | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 17.5 s | 7.0 A | 40.0 A | 30.0 V DC | 30.0 mOhm | -40.0 °C | 85.0 °C | 10.2 mm | 19.1 mm | 3.0 mm | 34.3 mm | ||||||||
135 | | Manufacturers Part No. MINISMDC050F-2(MINISMDC050F-2) Littelfuse Poly-Switch Fuse miniSMDC 24VDC 0,5A SMD 1812 TOP | Customer Part No. Customer Project No. | 7.090 Pcs. Planned Delivery Time Ø 11 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Littelfuse | SMD | 0.15 s | 0.5 A | 100.0 A | 24.0 V DC | 1000.0 mOhm | 1812 | 3.41 mm | 0.62 mm | 4.73 mm | ||||||||||
136 | | Manufacturers Part No. ERFRB9003000Z(ERFRB9003000Z) ECE Poly-Switch Fuse ERFRB 30VDC 9A radial RM10,2mm | Customer Part No. Customer Project No. | 640 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 20.0 s | 9.0 A | 40.0 A | 30.0 V DC | 20.0 mOhm | -40.0 °C | 85.0 °C | 10.2 mm | 24.1 mm | 3.0 mm | 37.3 mm | ||||||||
137 | | Manufacturers Part No. MINISMDC100F-2(MINISMDC100F-2) Littelfuse Poly-Switch Fuse miniSMDC 60VDC 1A SMD 1812 | Customer Part No. Customer Project No. | 1.375 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 25 or mul. of 25) | Self-resetting fuse | Littelfuse | SMD | 1.0 A | 60.0 V DC | 1812 | ||||||||||||||||
138 | | Manufacturers Part No. MINISMDC125F-2(MINISMDC125F-2) Littelfuse Poly-Switch Fuse miniSMDC 6VDC 1,25A SMD 1812 | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 25 or mul. of 25) | Self-resetting fuse | Littelfuse | SMD | 0.4 s | 1.25 A | 100.0 A | 6.0 V DC | 140.0 mOhm | 1812 | 3.41 mm | 0.48 mm | 4.73 mm | ||||||||||
139 | | Manufacturers Part No. MINISMDC160F-2(MINISMDC160F-2) Littelfuse Poly-Switch Fuse miniSMDC 9VDC 1,6A SMD 1812 | Customer Part No. Customer Project No. | 1.975 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock) | (at least 25 or mul. of 25) | Self-resetting fuse | Littelfuse | SMD | 1.0 s | 1.6 A | 100.0 A | 9.0 V DC | 100.0 mOhm | 1812 | 3.41 mm | 0.48 mm | 4.73 mm | ||||||||||
140 | | Customer Part No. Customer Project No. | 4.620 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Schurter | SMD | 0.6 s | 0.2 A | 10.0 A | 24.0 V DC | 2600.0 mOhm | -40.0 °C | 85.0 °C | 1206 | 3.4 mm | 1.8 mm | 0.85 mm | |||||||||
141 | | Manufacturers Part No. MINISMDC260F-2(MINISMDC260F-2) Littelfuse Poly-Switch Fuse miniSMDC 6VDC 2,6A SMD 1812 | Customer Part No. Customer Project No. | 1.625 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Self-resetting fuse | Littelfuse | SMD | 5.0 s | 2.6 A | 100.0 A | 6.0 V DC | 43.0 mOhm | 1812 | 3.41 mm | 0.78 mm | 4.73 mm | ||||||||||
142 | | Manufacturers Part No. MINISMDC010F-2(MINISMDC010F-2) Littelfuse Poly-Switch Fuse miniSMDC 60VDC 0,1A SMD 1812 | Customer Part No. Customer Project No. | 1.700 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 25 or mul. of 25) | Self-resetting fuse | Littelfuse | SMD | 5.0 s | 0.1 A | 40.0 A | 60.0 V DC | 12700.0 mOhm | 1812 | 3.41 mm | 0.89 mm | 4.73 mm | ||||||||||

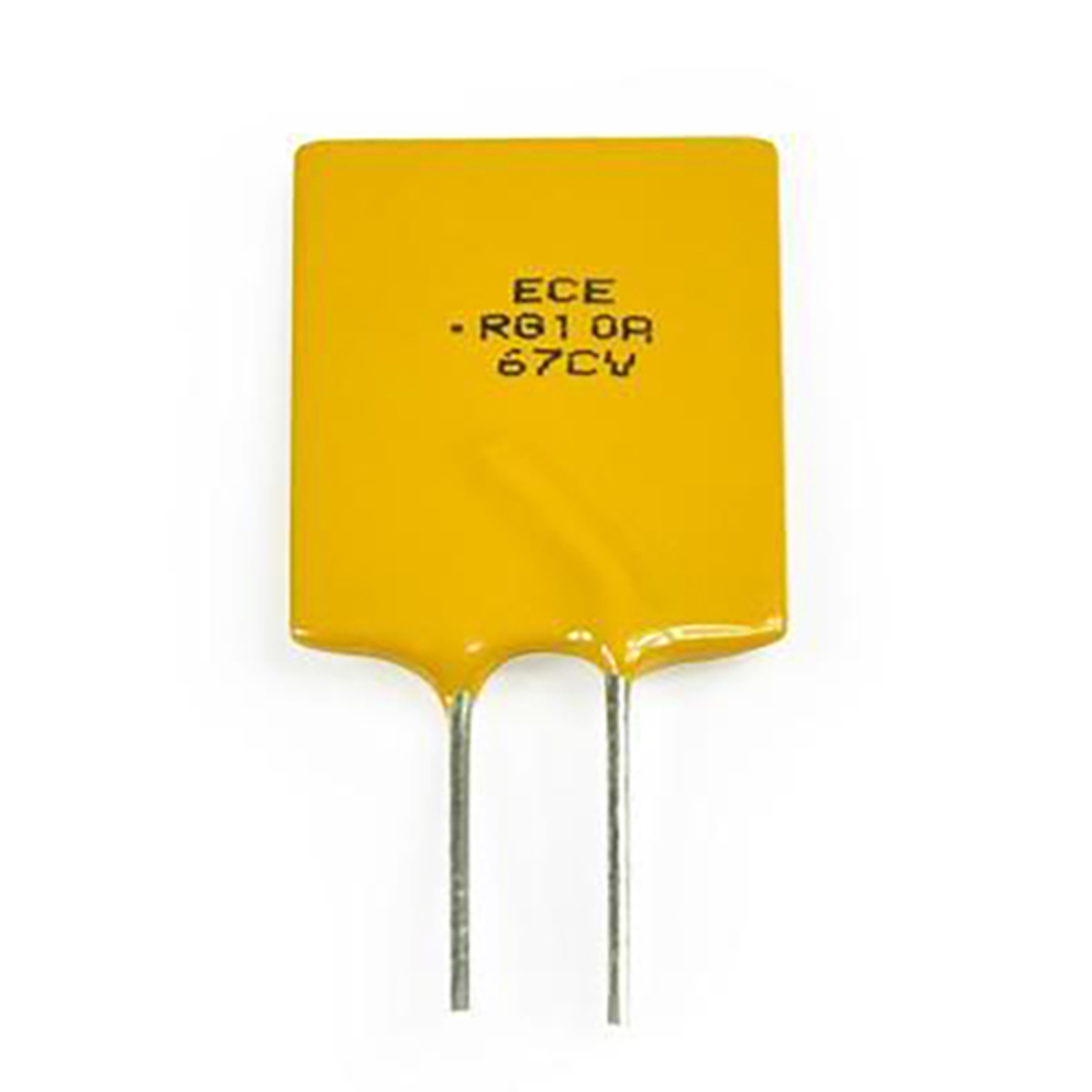

143 | | Manufacturers Part No. ERFRG4001600Z(ERFRG4001600Z) ECE Poly-Switch Fuse ERFRG 16VDC 4A radial RM5,1mm | Customer Part No. Customer Project No. | 340 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 3.5 s | 4.0 A | 40.0 A | 16.0 V DC | 63.0 mOhm | -40.0 °C | 85.0 °C | 5.1 mm | 8.9 mm | 3.0 mm | 20.4 mm | ||||||||
144 | | Manufacturers Part No. ERFRG8001600Z(ERFRG8001600Z) ECE Poly-Switch Fuse ERFRG 16VDC 8A radial RM5,1mm | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 9.0 s | 8.0 A | 40.0 A | 16.0 V DC | 28.0 mOhm | -40.0 °C | 85.0 °C | 5.1 mm | 12.7 mm | 3.0 mm | 28.5 mm | ||||||||

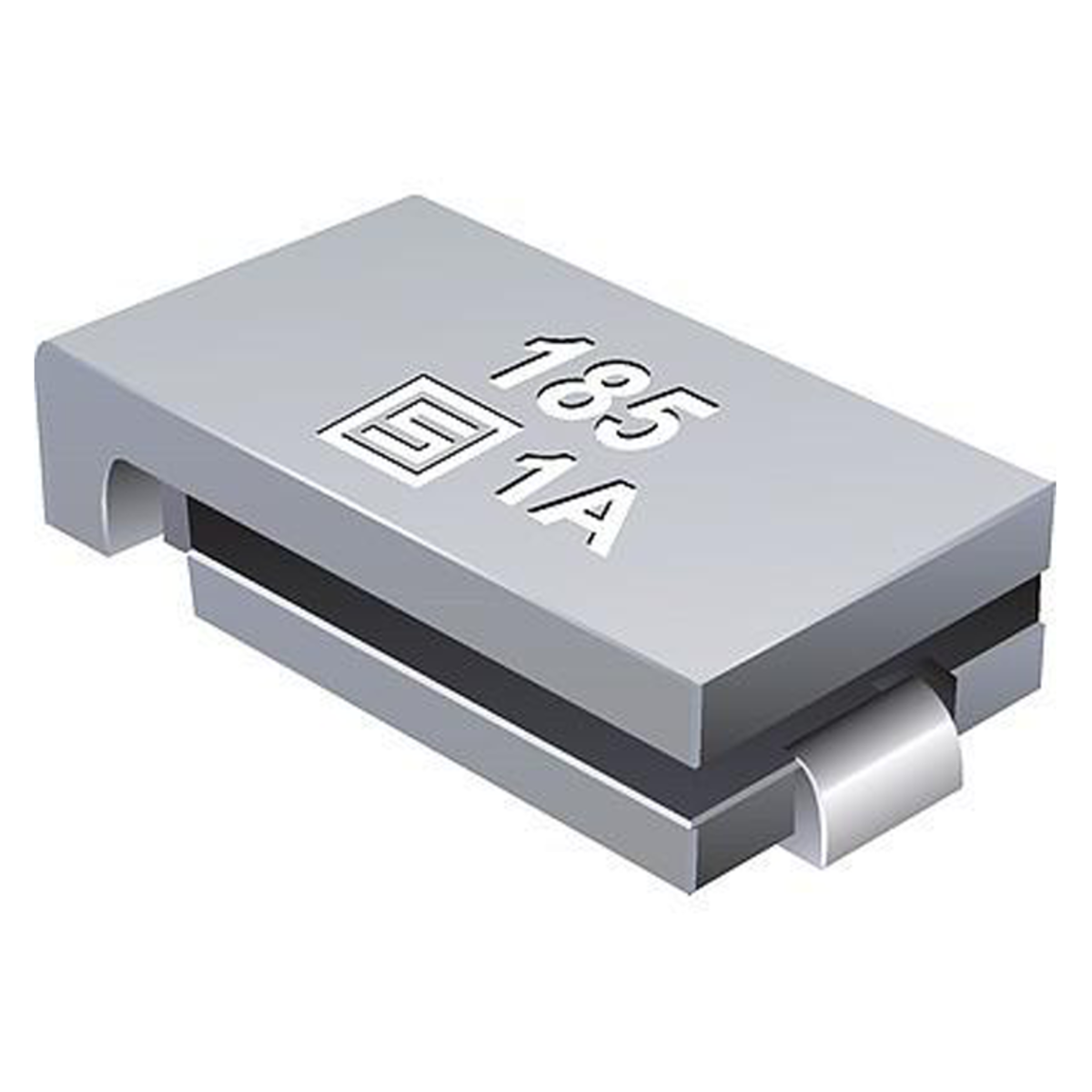

145 | | Manufacturers Part No. PFSM.075.2(PFSM.075.2) Schurter Poly-Switch Fuse PFSM 30VDC 0,75A SMD 2920 AEC-Q200 | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Schurter | SMD | 0.3 s | 0.75 A | 80.0 A | 30.0 V DC | 1000.0 mOhm | -40.0 °C | 85.0 °C | 2920 | 7.98 mm | 5.44 mm | 3.18 mm | ||||||||
146 | | Manufacturers Part No. PFSM.250.2(PFSM.250.2) Schurter Poly-Switch Fuse PFSM 15VDC 3,5A SMD 3425 AEC-Q200 | Customer Part No. Customer Project No. | 1.350 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Schurter | SMD | 25.0 s | 3.5 A | 100.0 A | 15.0 V DC | 85.0 mOhm | -40.0 °C | 85.0 °C | 3425 | 9.5 mm | 6.71 mm | 3.0 mm | ||||||||
147 | | Manufacturers Part No. ERFRG6001600Z(ERFRG6001600Z) ECE Poly-Switch Fuse ERFRG 16VDC 6A radial RM5,1mm | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | ECE | radial | 5.8 s | 6.0 A | 40.0 A | 16.0 V DC | 33.0 mOhm | -40.0 °C | 85.0 °C | 5.1 mm | 10.7 mm | 3.0 mm | 24.7 mm | ||||||||
148 | | Manufacturers Part No. RLD16P1000GF(RLD16P1000GF) Polytronics Technology Corp. Poly-Switch Fuse RLD_GF 16VDC 10A radial RM5,1mm | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | radial | 10.0 A | 100.0 A | 16.0 V DC | -40.0 °C | 85.0 °C | 5.1 mm | 16.5 mm | 3.0 mm | 25.2 mm | ||||||||||
149 | | Manufacturers Part No. RLD16P1400GF(RLD16P1400GF) Polytronics Technology Corp. Poly-Switch Fuse RLD_GF 16VDC 14A radial RM10,2mm | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | radial | 14.0 A | 100.0 A | 16.0 V DC | -40.0 °C | 85.0 °C | 10.2 mm | 23.5 mm | 3.5 mm | 27.9 mm | ||||||||||
150 | | Manufacturers Part No. RLD16P700GF(RLD16P700GF) Polytronics Technology Corp. Poly-Switch Fuse RLD_GF 16VDC 7A radial RM5,1mm | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | radial | 7.0 A | 100.0 A | 16.0 V DC | -40.0 °C | 85.0 °C | 5.1 mm | 11.2 mm | 3.0 mm | 19.7 mm |
