Results (331)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly | Tripping time with specified reference current IS | Rated current | Interrupting Current, Max. | Rated voltage V AC | Rated voltage V DC | Max. resistance 1 hour after switching off | Operating temperature range, min. | Operating temperature range, max. | Housing | Pitch | Dimension: Length | Dimension: Width | Dimension: Height | Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
326 |  | Manufacturers Part No. SMD0805P100TFT(SMD0805P100TFT) Polytronics Technology Corp. Poly-Switch Fuse SMD0805TF 6VDC 1A SMD 0805 | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | SMD | 0.3 s | 1.0 A | 40.0 A | 6.0 V DC | -40.0 °C | 85.0 °C | 0805 | 2.2 mm | 1.5 mm | 1.0 mm | |||||||||
327 | | Manufacturers Part No. SMD2920P150TF(SMD2920P150TF) Polytronics Technology Corp. Poly-Switch Fuse SMD2920TF 33VDC 1,5A SMD 2920 | Customer Part No. Customer Project No. | 460 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | SMD | 2.0 s | 1.5 A | 40.0 A | 33.0 V DC | -40.0 °C | 85.0 °C | 2920 | 7.98 mm | 5.44 mm | 1.25 mm | |||||||||
328 | | Manufacturers Part No. SMD2920P400TF(SMD2920P400TF) Polytronics Technology Corp. Poly-Switch Fuse SMD2920TF 15VDC 4A SMD 2920 | Customer Part No. Customer Project No. | 440 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | SMD | 4.0 s | 4.0 A | 40.0 A | 15.0 V DC | -40.0 °C | 85.0 °C | 2920 | 7.98 mm | 5.44 mm | 1.6 mm | |||||||||

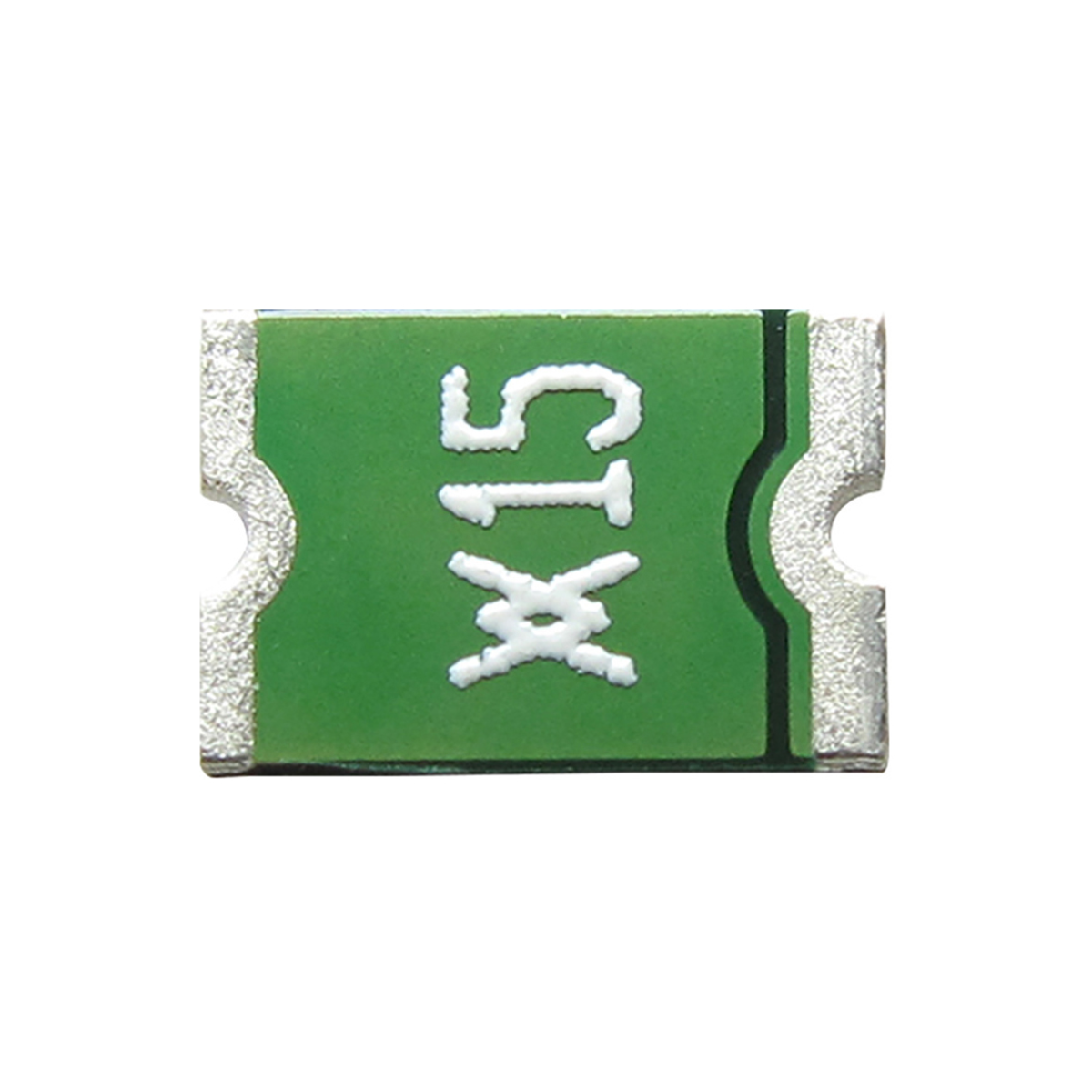

329 | | Manufacturers Part No. MINISMDC014F-2(MINISMDC014F-2) Littelfuse Poly-Switch Fuse miniSMDC 60VDC 0,14A SMD 1812 TOP | Customer Part No. Customer Project No. | 20.520 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Littelfuse | SMD | 0.008 s | 0.14 A | 10.0 A | 60.0 V DC | 6000.0 mOhm | 1812 | 3.41 mm | 0.89 mm | 4.73 mm | ||||||||||
330 | | Manufacturers Part No. SMD1206P050TF/15(SMD1206P050TF/15) Polytronics Technology Corp. Poly-Switch Fuse SMD1206TF 15VDC 0,5A SMD 1206 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | SMD | 0.1 s | 0.5 A | 100.0 A | 15.0 V DC | -40.0 °C | 85.0 °C | 1206 | 3.4 mm | 1.8 mm | 0.75 mm | |||||||||
331 | | Manufacturers Part No. SMD1206P050TF/24(SMD1206P050TF/24) Polytronics Technology Corp. Poly-Switch Fuse SMD1206TF 24VDC 0,5A SMD 1206 | Customer Part No. Customer Project No. | 250 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Self-resetting fuse | Polytronics Technology Corp. | SMD | 0.1 s | 0.5 A | 100.0 A | 24.0 V DC | -40.0 °C | 85.0 °C | 1206 | 3.4 mm | 1.8 mm | 1.25 mm |
