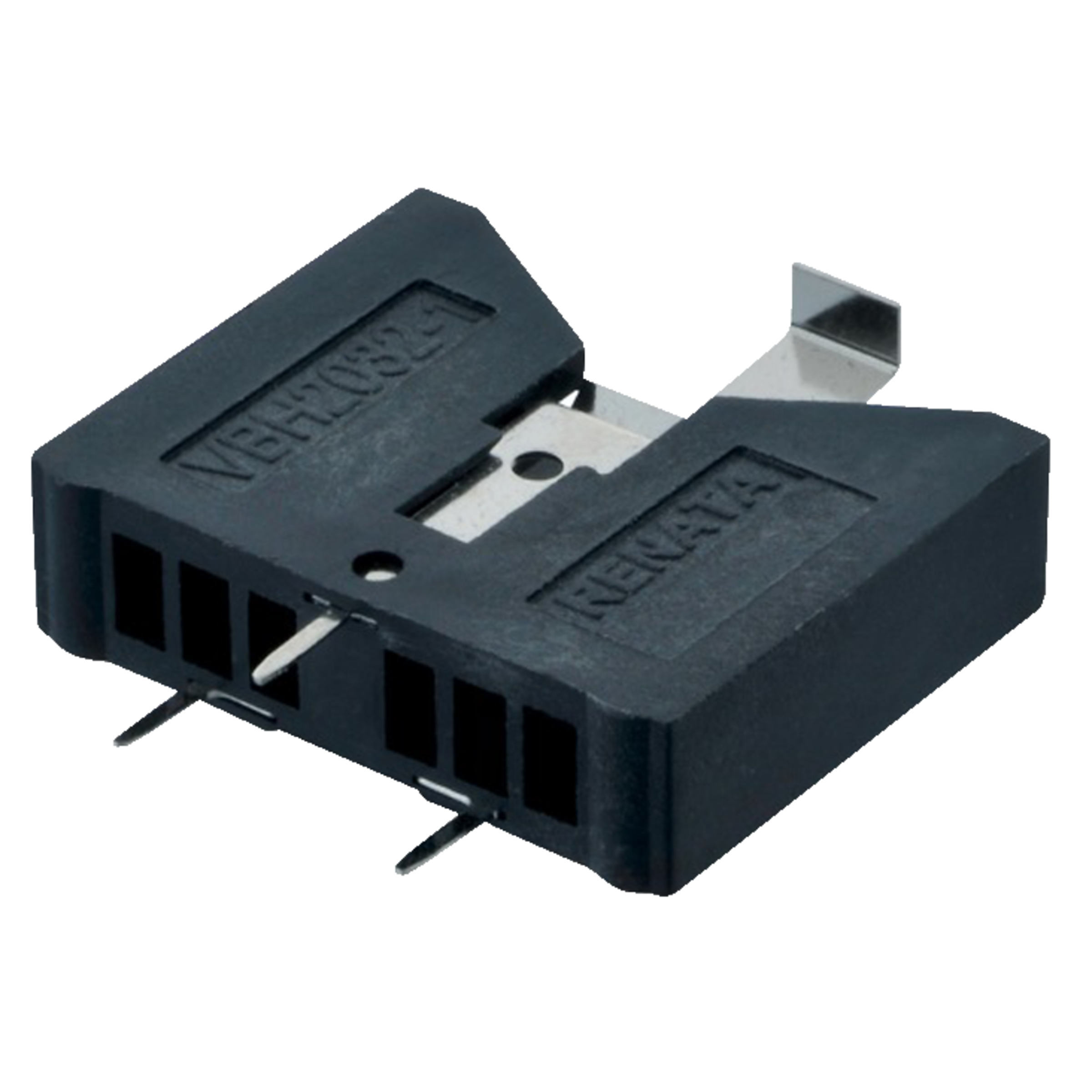

VBH2032-1

Renata Battery Holder Ø 20

Manufacturer Part No.
VBH2032-1
Schukat Part No.
VBH2032-1
Manufacturer
Renata
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

420 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Cell size
Ø 20

Specifications

Open all

General

Manufacturer
  • Renata
Type
  • Battery Holder
Series
  • VHB
Product group
  • S6517 RENATA Button Cell Holder
Application
  • Through-hole mounting
Dimension: Length
  • 23 mm
Dimension: Width
  • 23.9 mm
Dimension: Height
  • 6.1 mm
Weight
  • 1.86 g
Cell size
  • Ø 20
Termination Style
  • Radial Pins
Material: Housing
  • Plastic, Flame Retardant UL 94
Features

  • - Small PCB foot print
    - Easy and fast replacement of coin cell
    - Safe retention of coin cell through robust design
    - Protection against short circuits and leak currents
    - Protection against inverse polarity (polarized)
    - Suitable for wave-soldering

Operating conditions

Operating temperature min.
  • -40 °C
Operating temperature max.
  • 85 °C
