NL5077-LF

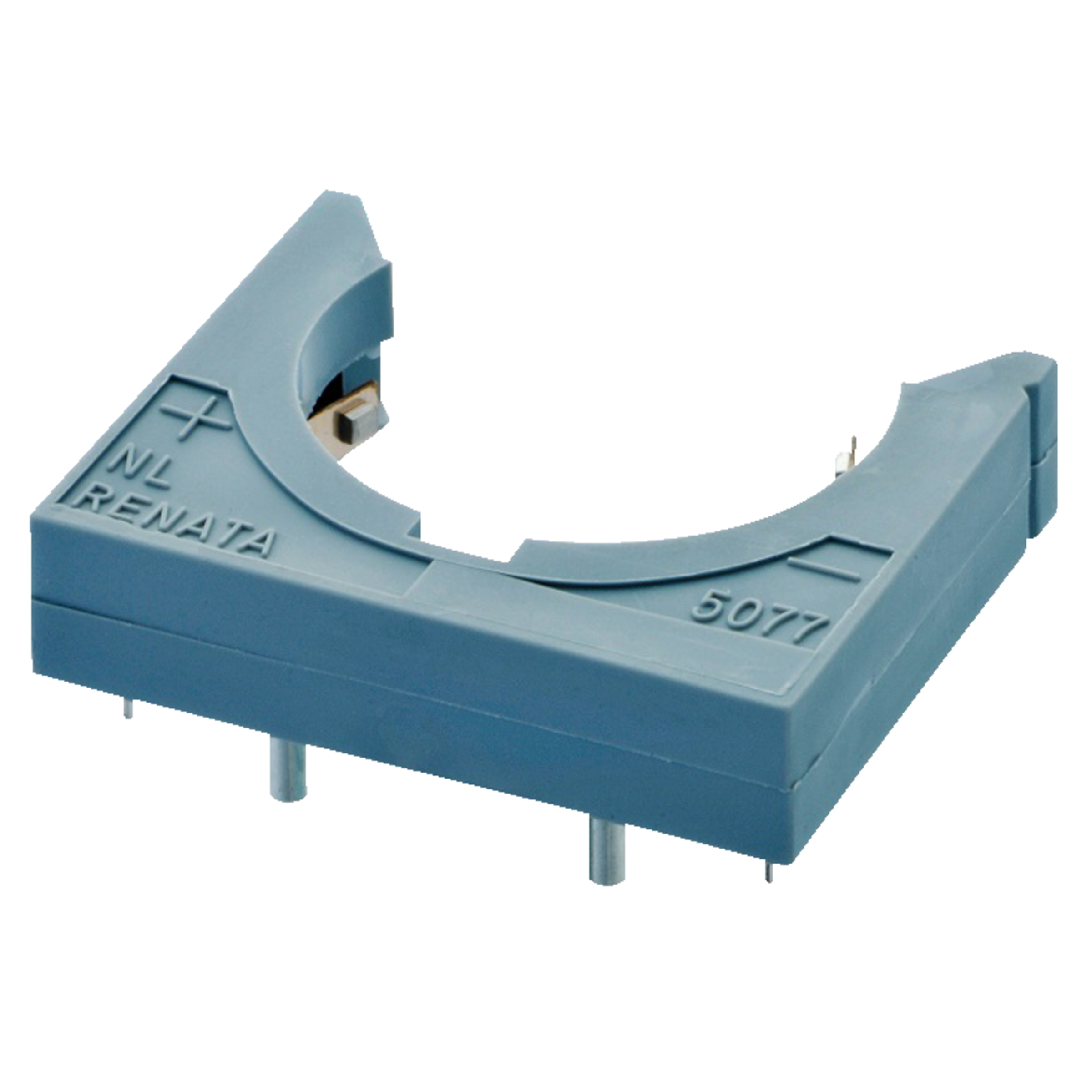

Renata Battery Holder Ø 24

Manufacturer Part No.
NL5077-LF
Schukat Part No.
NL5077-LF
Manufacturer
Renata
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

280 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Cell size
Ø 24

Specifications

Open all

General

Manufacturer
  • Renata
Type
  • Battery Holder
Series
  • NL
Application
  • Through-hole mounting with positioning pins
Dimension: Length
  • 30 mm
Dimension: Width
  • 29.25 mm
Dimension: Height
  • 7 mm
Weight
  • 2.9 g
Cell size
  • Ø 24
Material: Housing
  • Plastic
Features

  • - Easy and fast replacement of coin cell
    - Snap-on fixing for coin cells
    - Safe retention of coin cell through robust design
    - Clear separation of connections
    - Protection against short circuits and leak currents
    - Protection against inverse polarity (polarized)
    - Easy and safe PCB mounting due to additional positioning pins
    - Suitable for wave-soldering
    - Solder and positioning pins tin plated through-out, min. thickness 5 µm

Operating conditions

Operating temperature min.
  • -40 °C
Operating temperature max.
  • 85 °C
