Relays - page 3

(1742 Results)

Filtering by Categories

Industrial- / Interfacerelays (109)

Automotive Relays (37)

PCB Relays (1067)

Reed Relays (87)

Safety Relays (11)

Heating Control Relays and Timers (4)

Timer (12)

Solid State Relays (348)

Relays Accesories (67)

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Type	Manufacturer	contacts	Assembly Type	Coil: Nominal Voltage AC	Coil: Nominal Voltage DC	Contact: Switching Current (min/typ/max)	Coil resistance	Dimension: Length	Dimension: Width	Dimension: Height	Contact material	Protection Class	Protection class RT	Operating Temperature Min.	Operating Temperature Max.

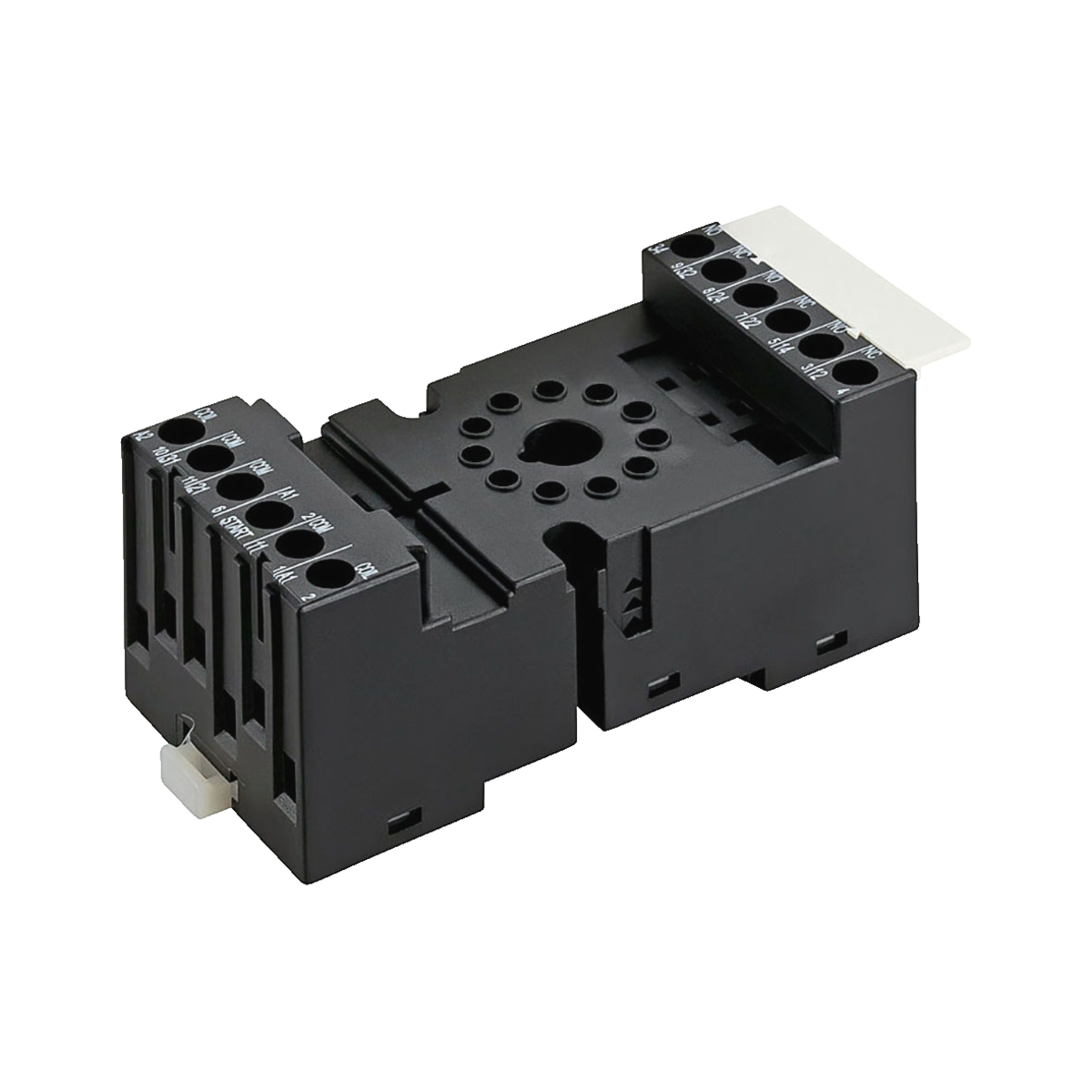

51	Manufacturers Part No. 90.03.0 (90.03.0) Finder DIN rail socket 90.03 IP20 black	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 5 or mul. of 5)	90.03	DIN rail socket	Finder		DIN rail					77.5 mm	38.0 mm	33.5 mm		IP20		-40.0 °C	70.0 °C
52	Manufacturers Part No. 55.34.8.012.0040 (55.34.8.012.0040) Finder Industrial relay 55.34 4PDT 7A 12VAC 50Ohm 27,7mmx20,7mmx37,2mm RTI	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 5 or mul. of 5)	55.34	Industrial relay	Finder	4PDT	Socket mounting	12.0 V AC		7.0 A	50.0 Ohm	27.7 mm	20.7 mm	37.2 mm	AgNi		RTI	-40.0 °C	85.0 °C
53	Manufacturers Part No. 48.52.7.012.0050 (48.52.7.012.0050) Finder Coupling relay 48.52 DPDT 8A 12VDC 78,6mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	9 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.52	Coupling relay	Finder	DPDT	DIN rail		12.0 V DC	8.0 A		78.6 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
54	Manufacturers Part No. 80.51.0.240.0000 (80.51.0.240.0000) Finder Time relay, multifunction 80 DIN rail SPDT 16A 24VAC...240VAC 24VDC...240VDC IP20	Customer Part No. Customer Project No.	Finder	1 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	80	Time relay, multifunction	Finder	SPDT	DIN rail			16.0 A					AgNi	IP20		-20.0 °C	60.0 °C
55	Manufacturers Part No. 48.52.7.024.5050 (48.52.7.024.5050) Finder Coupling relay 48.52 DPDT 8A 24VDC 78,6mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.52	Coupling relay	Finder	DPDT	DIN rail		24.0 V DC	8.0 A		78.6 mm	15.8 mm	75.3 mm	AgNi/Au	IP20		-40.0 °C	70.0 °C
56	Manufacturers Part No. 48.52.9.012.0050 (48.52.9.012.0050) Finder Coupling relay 48.52 DPDT 8A 12VDC 78,6mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.52	Coupling relay	Finder	DPDT	DIN rail		12.0 V DC	8.0 A		78.6 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
57	Manufacturers Part No. 7S.16.9.012.5420 (7S.16.9.012.5420) Finder Safety relay 7S DIN rail 4PDT-NO/DPDT-NC 6A 12VDC 78,8mmx22,5mmx100,3mm IP20	Customer Part No. Customer Project No.	Finder	1 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	7S	Forced-guided relay	Finder	4PDT-NO/DPDT-NC	DIN rail		12.0 V DC	6.0 A		78.8 mm	22.5 mm	100.3 mm	AgSnO2/Au	IP20		-40.0 °C	70.0 °C

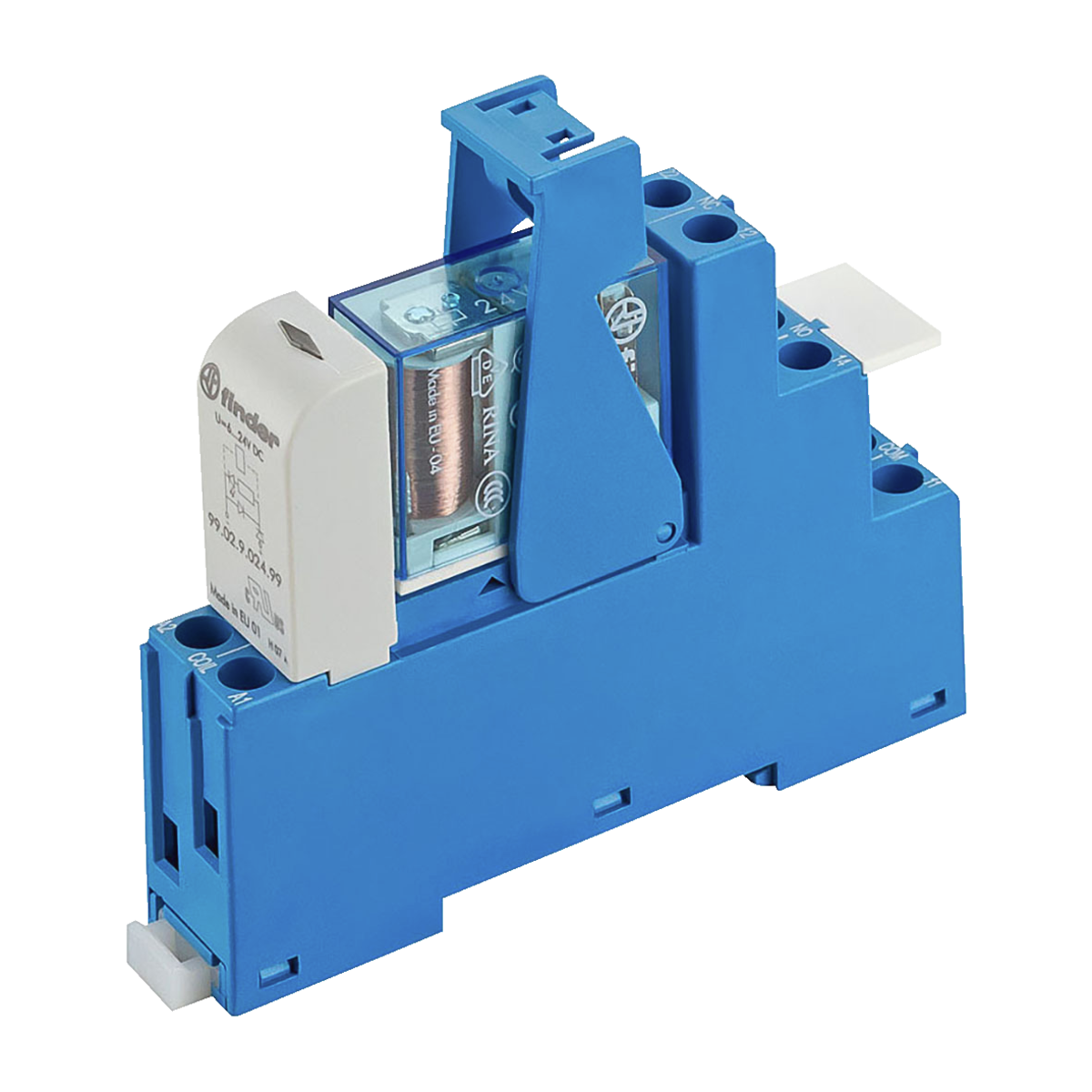

58	Manufacturers Part No. 48.62.7.012.0050 (48.62.7.012.0050) Finder Coupling relay 48.62 DPDT 10A 12VDC 78,6mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.62	Coupling relay	Finder	DPDT	DIN rail		12.0 V DC	10.0 A		78.6 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
59	Manufacturers Part No. 48.62.7.024.0050 (48.62.7.024.0050) Finder Coupling relay 48.62 DPDT 10A 24VDC 78,6mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	9 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.62	Coupling relay	Finder	DPDT	DIN rail		24.0 V DC	10.0 A		78.6 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
60	Manufacturers Part No. 48.31.7.012.0050 (48.31.7.012.0050) Finder Coupling relay 48.31 SPDT 10A 12VDC 78,5mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	6 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.31	Coupling relay	Finder	SPDT	DIN rail		12.0 V DC	10.0 A		78.5 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
61	Manufacturers Part No. 48.31.7.024.0050 (48.31.7.024.0050) Finder Coupling relay 48.31 SPDT 10A 24VDC 78,5mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	5 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.31	Coupling relay	Finder	SPDT	DIN rail		24.0 V DC	10.0 A		78.5 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
62	Manufacturers Part No. 48.P5.8.230.0060 (48.P5.8.230.0060) Finder Coupling relay 48.P5 DPDT 8A 230VAC 95,5mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.P5	Coupling relay	Finder	DPDT	DIN rail	230.0 V AC		8.0 A		95.5 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
63	Manufacturers Part No. 48.P5.7.012.0050 (48.P5.7.012.0050) Finder Coupling relay 48.P5 DPDT 8A 12VDC 95,5mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.P5	Coupling relay	Finder	DPDT	DIN rail		12.0 V DC	8.0 A		95.5 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
64	Manufacturers Part No. 48.P5.7.024.0050 (48.P5.7.024.0050) Finder Coupling relay 48.P5 DPDT 8A 24VDC 95,5mmx15,8mmx75,3mm IP20	Customer Part No. Customer Project No.	Finder	7 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	48.P5	Coupling relay	Finder	DPDT	DIN rail		24.0 V DC	8.0 A		95.5 mm	15.8 mm	75.3 mm	AgNi	IP20		-40.0 °C	70.0 °C
65	Manufacturers Part No. 39.11.0.024.0060 (39.11.0.024.0060) Finder Coupling relay 39.11 SPDT 6A 24VAC 24VDC 87mmx6,2mmx90,7mm IP20	Customer Part No. Customer Project No.	Finder	4 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	39.11	Coupling relay	Finder	SPDT	DIN rail	24.0 V AC	24.0 V DC	6.0 A		87.0 mm	6.2 mm	90.7 mm	AgNi	IP20		-40.0 °C	70.0 °C
66	Manufacturers Part No. 39.11.8.230.0060 (39.11.8.230.0060) Finder Coupling relay 39.11 SPDT 6A 230VAC 87mmx6,2mmx90,7mm IP20	Customer Part No. Customer Project No.	Finder	6 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	39.11	Coupling relay	Finder	SPDT	DIN rail	230.0 V AC		6.0 A		87.0 mm	6.2 mm	90.7 mm	AgNi	IP20		-40.0 °C	70.0 °C
67	Manufacturers Part No. 4C.02.8.024.0060 (4C.02.8.024.0060) Finder Coupling relay 4C.02 DPDT 8A 24VAC 320Ohm 82,9mmx15,8mmx68,1mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock)	(at least 1 or mul. of 1)	4C.02	Coupling relay	Finder	DPDT	DIN rail	24.0 V AC		8.0 A	320.0 Ohm	82.9 mm	15.8 mm	68.1 mm	AgNi	IP20		-40.0 °C	70.0 °C
68	Manufacturers Part No. 22.22.9.024.4000 (22.22.9.024.4000) Finder Installation relay 22.22 DPDT 20A 24VDC 460Ohm 84mmx17,4mmx58,4mm IP20	Customer Part No. Customer Project No.	Finder	26 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.22	Installation relay	Finder	DPDT	DIN rail		24.0 V DC	20.0 A	460.0 Ohm	84.0 mm	17.4 mm	58.4 mm	AgSnO2	IP20		-40.0 °C	40.0 °C
69	Manufacturers Part No. 22.22.9.012.4000 (22.22.9.012.4000) Finder Installation relay 22.22 DPDT 20A 12VDC 115Ohm 84mmx17,4mmx58,4mm IP20	Customer Part No. Customer Project No.	Finder	27 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.22	Installation relay	Finder	DPDT	DIN rail		12.0 V DC	20.0 A	115.0 Ohm	84.0 mm	17.4 mm	58.4 mm	AgSnO2	IP20		-40.0 °C	40.0 °C
70	Manufacturers Part No. 22.22.8.230.4000 (22.22.8.230.4000) Finder Installation relay 22.22 DPDT 20A 230VAC 4.200Ohm 84mmx17,4mmx58,4mm IP20	Customer Part No. Customer Project No.	Finder	10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.22	Installation relay	Finder	DPDT	DIN rail	230.0 V AC		20.0 A	4200.0 Ohm	84.0 mm	17.4 mm	58.4 mm	AgSnO2	IP20		-40.0 °C	40.0 °C
71	Manufacturers Part No. 22.23.8.230.4000 (22.23.8.230.4000) Finder Installation relay 22.23 SPDT-NO/SPDT-NC 20A 230VAC 4.200Ohm 84mmx17,4mmx58,4mm IP20	Customer Part No. Customer Project No.	Finder	30 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.23	Installation relay	Finder	SPDT-NO/SPDT-NC	DIN rail	230.0 V AC		20.0 A	4200.0 Ohm	84.0 mm	17.4 mm	58.4 mm	AgSnO2	IP20		-40.0 °C	40.0 °C
72	Manufacturers Part No. 22.23.9.012.4000 (22.23.9.012.4000) Finder Installation relay 22.23 SPDT-NO/SPDT-NC 20A 12VDC 115Ohm 84mmx17,4mmx58,4mm IP20	Customer Part No. Customer Project No.	Finder	0 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.23	Installation relay	Finder	SPDT-NO/SPDT-NC	DIN rail		12.0 V DC	20.0 A	115.0 Ohm	84.0 mm	17.4 mm	58.4 mm	AgSnO2	IP20		-40.0 °C	40.0 °C
73	Manufacturers Part No. 22.23.9.024.4000 (22.23.9.024.4000) Finder Installation relay 22.23 SPDT-NO/SPDT-NC 20A 24VDC 460Ohm 84mmx17,4mmx58,4mm IP20	Customer Part No. Customer Project No.	Finder	11 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.23	Installation relay	Finder	SPDT-NO/SPDT-NC	DIN rail		24.0 V DC	20.0 A	460.0 Ohm	84.0 mm	17.4 mm	58.4 mm	AgSnO2	IP20		-40.0 °C	40.0 °C
74	Manufacturers Part No. 22.32.0.012.4340 (22.32.0.012.4340) Finder Modular contactor 22.32 DPDT 25A 12VAC 12VDC 88,8mmx17,5mmx60,8mm IP20	Customer Part No. Customer Project No.	Finder	51 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.32	Modular contactor	Finder	DPDT	DIN rail	12.0 V AC	12.0 V DC	25.0 A		88.8 mm	17.5 mm	60.8 mm	AgSnO2	IP20		-25.0 °C	50.0 °C
75	Manufacturers Part No. 22.32.0.012.4540 (22.32.0.012.4540) Finder Modular contactor 22.32 SPST-NO/SPST-NC 25A 12VAC 12VDC 88,8mmx17,5mmx60,8mm IP20	Customer Part No. Customer Project No.	Finder	2 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	22.32	Modular contactor	Finder	SPST-NO/SPST-NC	DIN rail	12.0 V AC	12.0 V DC	25.0 A		88.8 mm	17.5 mm	60.8 mm	AgSnO2	IP20		-25.0 °C	50.0 °C
