Results (84)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Switching voltage, max. | Switching current | Switching capacity, max. | contacts | Contact Type | Housing | Operating Temperature Min. | Operating Temperature Max. | Initial Excitation | Approvals | Protection Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 |  | Manufacturers Part No. MK24-A-3(MK24-A-3) Standex Electronics Reed sensor MK24 SPST-NO 0,1A 30V 1W AT5...10 SMD | Customer Part No. Customer Project No. | 2.730 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 30.0 V | 0.1 A | 1.0 W | SPST-NO | SMD | -40.0 °C | 130.0 °C | 5...10 AT | UL cULus | |||||||
27 | | Manufacturers Part No. MK24-B-2(MK24-B-2) Standex Electronics Reed sensor MK24 SPST-NO 0,3A 30V 3W AT10...15 SMD | Customer Part No. Customer Project No. | 1.770 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 30.0 V | 0.3 A | 3.0 W | SPST-NO | SMD | -40.0 °C | 130.0 °C | 10...15 AT | UL cULus | |||||||
28 | | Manufacturers Part No. MK24-B-2-OE(MK24-B-2-OE) Standex Electronics Reed sensor MK24 SPST-NC 0,3A 30V 3W AT10...15 SMD | Customer Part No. Customer Project No. | 520 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 30.0 V | 0.3 A | 3.0 W | SPST-NC | SMD | -40.0 °C | 130.0 °C | 10...15 AT | UL cULus | |||||||
29 | | Manufacturers Part No. MK24-B-3(MK24-B-3) Standex Electronics Reed sensor MK24 SPST-NO 0,3A 30V 3W AT20...40 SMD | Customer Part No. Customer Project No. | 3.050 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 30.0 V | 0.3 A | 3.0 W | SPST-NO | SMD | -40.0 °C | 130.0 °C | 20...40 AT | UL cULus | |||||||

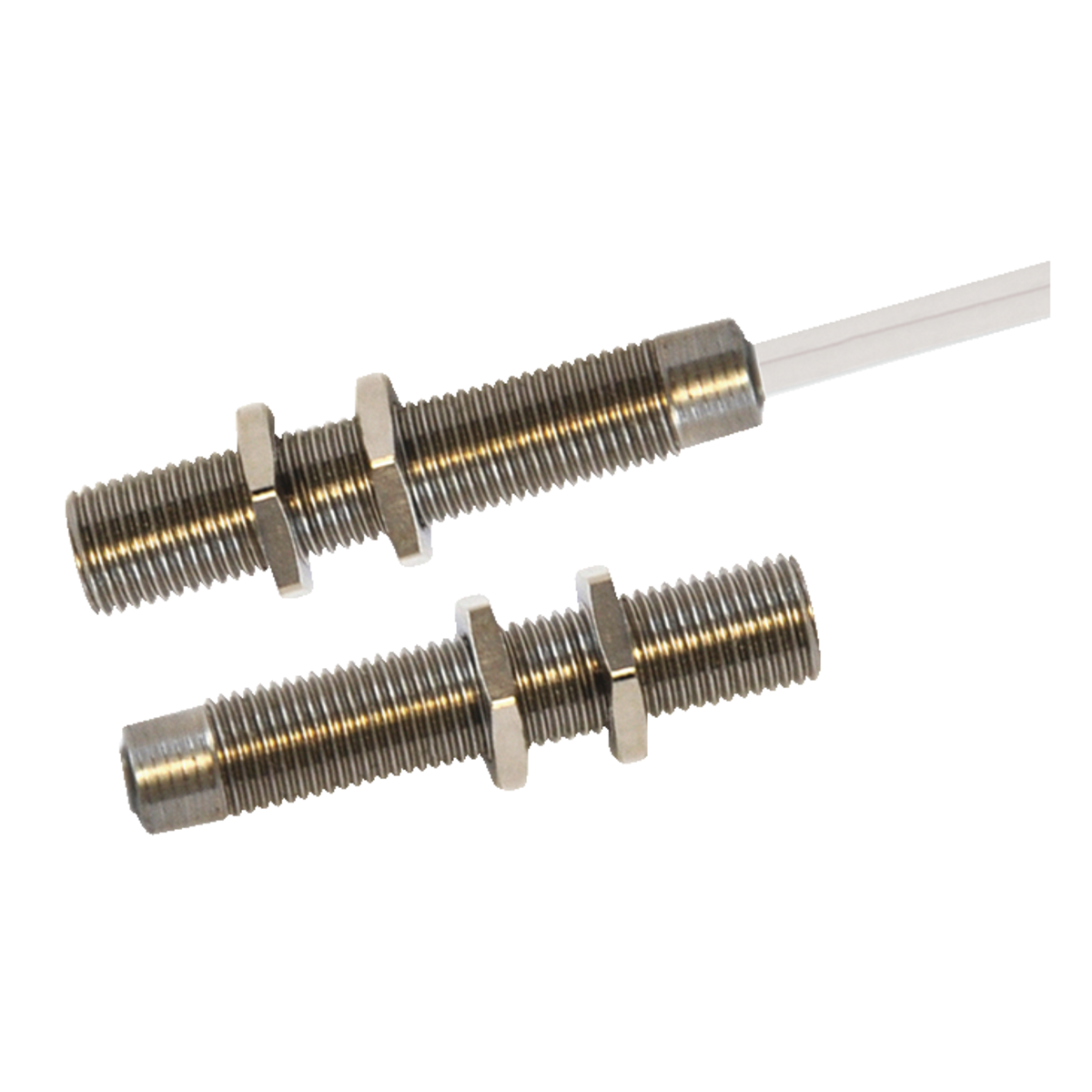

30 | | Manufacturers Part No. MK11-1A66C-500W(MK11-1A66C-500W) Standex Electronics Reed sensor MK11 SPST-NO 0,5A 200V 10W AT10...15 with cable | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | with cable | -30.0 °C | 70.0 °C | 10...15 AT | UL cULus | IP67 | |||||
31 | | Manufacturers Part No. MK11-1A66B-500W(MK111B) Standex Electronics Reed sensor MK11 SPST-NC 0,5A 200V 10W AT15...20 with cable | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NC | 1A | with cable | -30.0 °C | 70.0 °C | 15...20 AT | UL cULus | IP67 | |||||
32 | | Manufacturers Part No. MK06-7-B(MK67B) Standex Electronics Reed sensor MK06 SPST-NO 0,5A 200V 10W AT10...15 THT | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | THT | -20.0 °C | 85.0 °C | 10...15 AT | UL cULus | ||||||
33 | | Manufacturers Part No. MK16-D-2(MK16-D-2) Standex Electronics Reed sensor MK16 SPST-NO 0,4A 200V 10W AT20...25 SMD | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.4 A | 10.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 20...25 AT | UL cULus | ||||||
34 | | Manufacturers Part No. MK16-C-2(MK16C2) Standex Electronics Reed sensor MK16 SPST-NO 0,4A 200V 10W AT15...20 SMD | Customer Part No. Customer Project No. | 2.820 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.4 A | 10.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 15...20 AT | UL cULus | ||||||
35 | | Manufacturers Part No. MK15-B-2(MK15B2) Standex Electronics Reed sensor MK15 SPST-NO 0,5A 180V 10W AT10...15 SMD | Customer Part No. Customer Project No. | 11.960 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 180.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 10...15 AT | UL cULus | ||||||
36 | | Manufacturers Part No. MK17-C-3(MK17-C-3) Standex Electronics Reed sensor MK17 SPST-NO 0,5A 170V 130W AT15...20 SMD | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 170.0 V | 0.5 A | 130.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 15...20 AT | UL cULus | ||||||
37 | | Manufacturers Part No. MK15-F-2(MK15-F-2) Standex Electronics Reed sensor MK15 SPST-NO 0,5A 180V 10W AT30...35 SMD | Customer Part No. Customer Project No. | 1.090 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 180.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 30...35 AT | UL cULus | ||||||
38 | | Manufacturers Part No. KSK-1C90U-1520(KSK1C90-1520) Standex Electronics Reed contact KSK-1C90 SPDT 0,5A 175V 10W AT15...20 | Customer Part No. Customer Project No. | 1.620 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed contact | Standex Electronics | 175.0 V | 0.5 A | 10.0 W | SPDT | 1U | -40.0 °C | 130.0 °C | 15...20 AT | ||||||||
39 | | Manufacturers Part No. MK17-C-2(MK17C2) Standex Electronics Reed sensor MK17 SPST-NO 0,5A 170V 130W AT15...20 SMD | Customer Part No. Customer Project No. | 1.120 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 170.0 V | 0.5 A | 130.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 15...20 AT | UL cULus | ||||||
40 | | Manufacturers Part No. KSK-1C90U-3035(KSK1C90U-3035) Standex Electronics Reed contact KSK-1C90U SPDT 0,5A 175V 10W AT30...35 | Customer Part No. Customer Project No. | 290 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed contact | Standex Electronics | 175.0 V | 0.5 A | 10.0 W | SPDT | 1U | -40.0 °C | 130.0 °C | 30...35 AT | ||||||||
41 | | Manufacturers Part No. MK23-46-D-2(MK23-46-D-2) Standex Electronics Reed sensor MK23 SPST-NO 0,5A 200V 10W AT20...25 SMD | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 20...25 AT | UL cULus | ||||||
42 | | Manufacturers Part No. KSK-1C90U-4045(KSK1C90U-4045) Standex Electronics Reed contact KSK-1C90U SPDT 0,5A 175V 10W AT40...45 | Customer Part No. Customer Project No. | 450 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed contact | Standex Electronics | 175.0 V | 0.5 A | 10.0 W | SPDT | 1U | -40.0 °C | 130.0 °C | 40...45 AT | ||||||||
43 | | Manufacturers Part No. MK23-35-D-2(MK23-35-D-2) Standex Electronics Reed sensor MK23 SPST-NO 1A 200V 20W AT20...25 SMD | Customer Part No. Customer Project No. | 1.580 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 1.0 A | 20.0 W | SPST-NO | 1A | SMD | -40.0 °C | 130.0 °C | 20...25 AT | UL cULus | ||||||

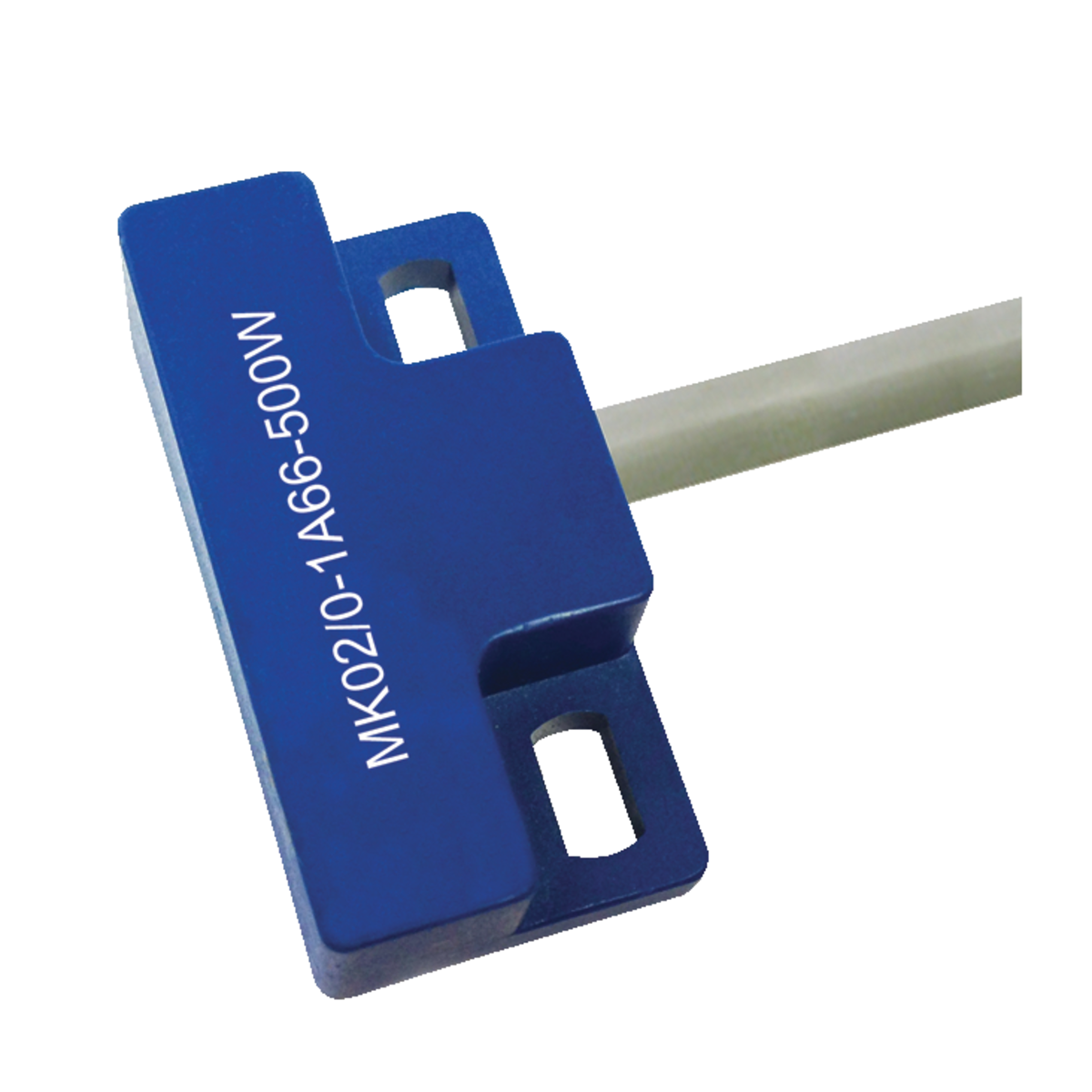

44 | | Manufacturers Part No. MK02/0-1A66-500W(MK02/0-1A66-500W) Standex Electronics Reed sensor MK02 SPST-NO 0,5A 200V 10W with cable | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | with cable | -30.0 °C | 80.0 °C | UL cULus | IP67 | ||||||
45 | | Manufacturers Part No. MK01-B(MK01-B) Standex Electronics Reed sensor MK01 SPST-NO 0,5A 180V 10W AT10...15 % | Customer Part No. Customer Project No. | 980 Pcs. Planned Delivery Time Ø 36 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 180.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | -20.0 °C | 130.0 °C | 10...15 AT | UL cULus | |||||||
46 | | Manufacturers Part No. MK04-1A66C-500W(MK04-1A66C-500W) Standex Electronics Reed sensor MK04 SPST-NO 0,5A 200V 10W AT15...20 with cable | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | with cable | -30.0 °C | 70.0 °C | 15...20 AT | UL cULus | ||||||
47 | | Manufacturers Part No. MK03-1C90C-500W(MK03-1C90C-500W) Standex Electronics Reed sensor MK03 SPDT 0,5A 175V 10W AT15...20 with cable | Customer Part No. Customer Project No. | 110 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 175.0 V | 0.5 A | 10.0 W | SPDT | 1U | with cable | -30.0 °C | 70.0 °C | 15...20 AT | UL cULus | ||||||
48 | | Manufacturers Part No. MK04-1A66B-500W(MK471B) Standex Electronics Reed sensor MK04 SPST-NO 0,5A 200V 10W AT10...15 with cable | Customer Part No. Customer Project No. | 610 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | with cable | -30.0 °C | 70.0 °C | 10...15 AT | UL cULus | ||||||
49 | | Manufacturers Part No. MK06-10-E(MK06-10-E) Standex Electronics Reed sensor MK06 SPST-NO 0,5A 200V 10W AT25...30 THT | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | THT | -20.0 °C | 70.0 °C | 25...30 AT | UL cULus | ||||||
50 | | Manufacturers Part No. MK06-5-C(MK06-5-C) Standex Electronics Reed sensor MK06 SPST-NO 0,5A 200V 10W AT15...20 THT | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Reed sensor | Standex Electronics | 200.0 V | 0.5 A | 10.0 W | SPST-NO | 1A | THT | -20.0 °C | 85.0 °C | 15...20 AT | UL cULus |
