ITS-MSM-2520-24-VDC-VA

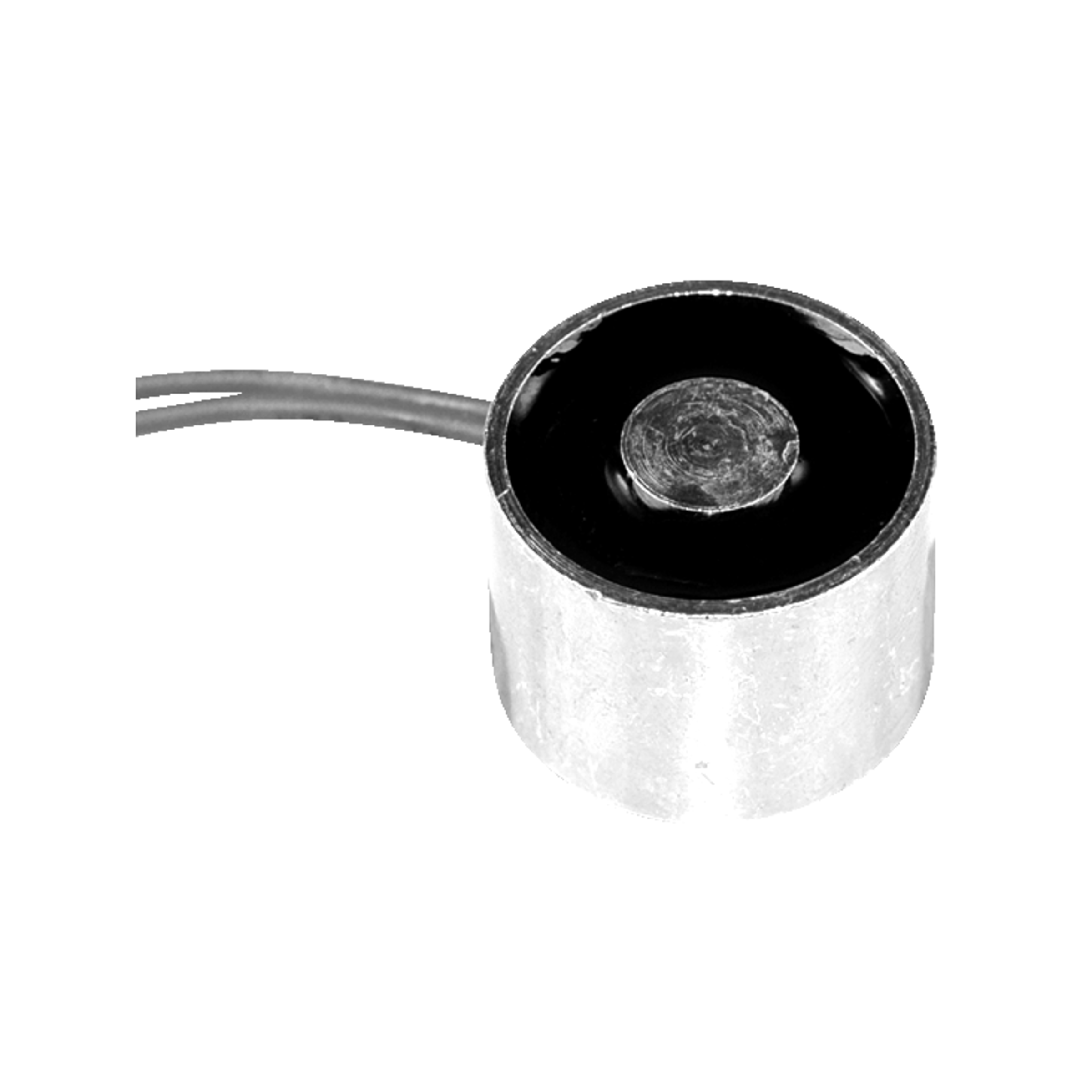

Electromagnet Pot magnet with stranded wire 24 V
Manufacturer Part No.
ITS-MSM-2520-24-VDC-VA
Schukat Part No.
ITS-MSM-2520-24-VA
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ITS-MSM
- Material
- Housing
- Pot magnet with stranded wire
- Rated Voltage
- 24 V
- Rated current
- 130 mA
- Dimension: Height
- 20 mm
- Diameter
- 25 mm
- RoHS-Conform
Specifications
Open all

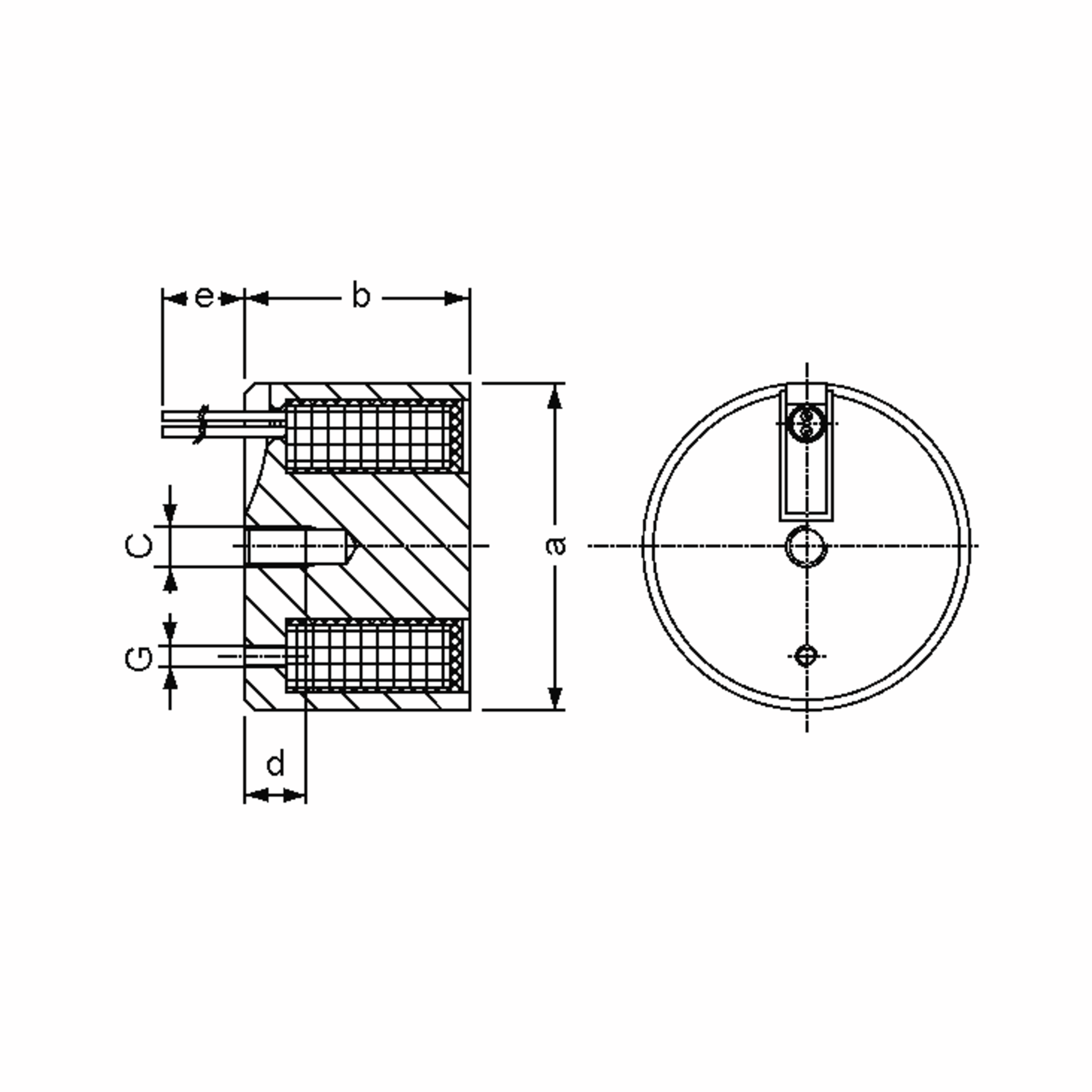

Dimensions and Weights
- Dimension: Height
- 20 mm
- Diameter
- 25 mm
- Length of connecting wire
- 200 mm
- weight magnet
- 60 g
Mechanical features
- Thread
- M4
Technical Features
- Rated current
- 130 mA
- Rated Voltage
- 24 V
- Rated power
- 3.2 W
- Power, max.
- 3.2 W
- Duty cycle, rel.
- 100 %
- Holding force
- 140 N
