ITS-LZ-3869-Z-12VDC
Electromagnet 12 V
Manufacturer Part No.
ITS-LZ-3869-Z-12VDC
Schukat Part No.
ITS-LZ3869Z-12
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 06/2025
16 Pcs.
16 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ITS-LZ
- Housing
- Rated Voltage
- 12 V
- Dimension: Length
- 69 mm
- Diameter
- 38 mm
- RoHS-Conform
Specifications
Open all

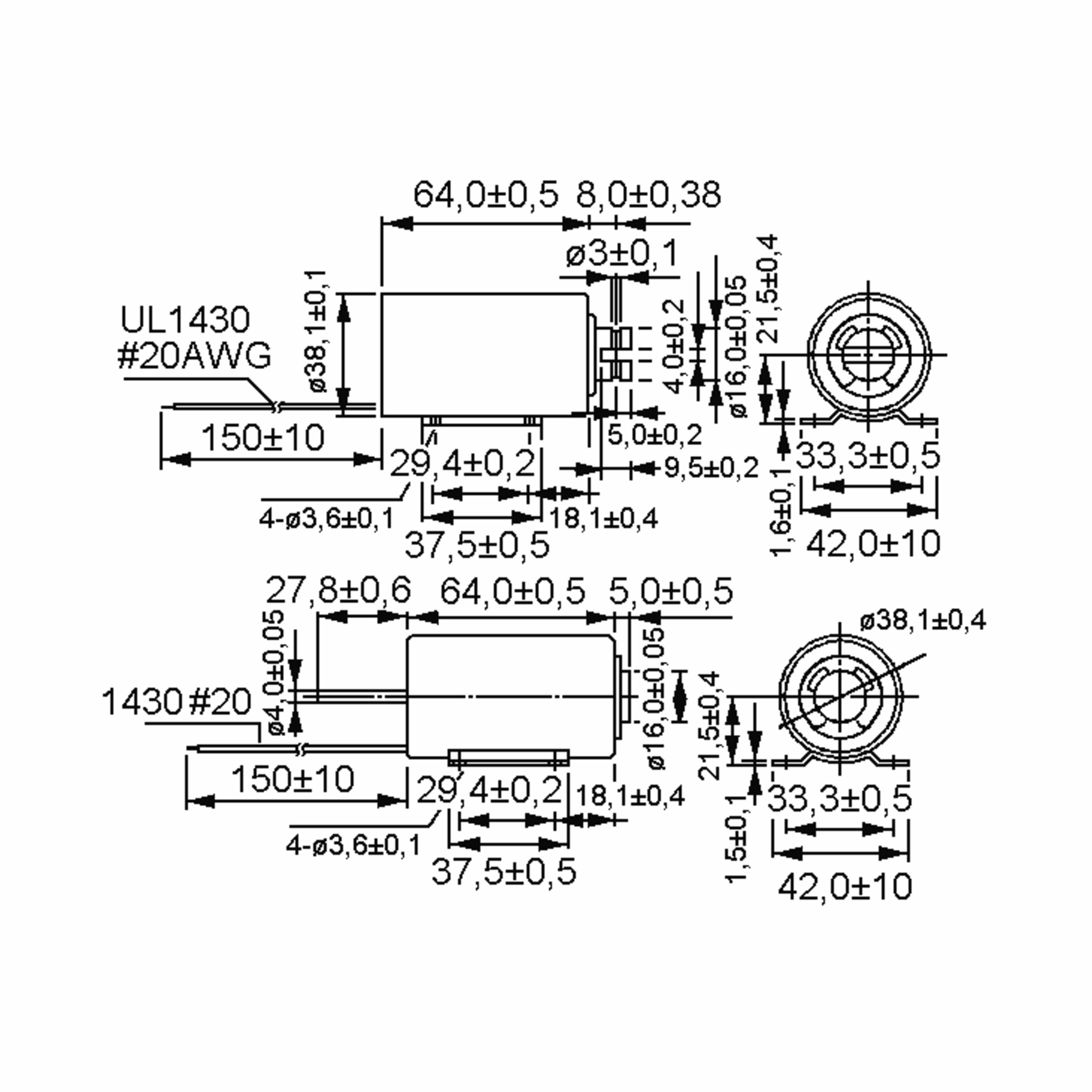

Dimensions and weights
- Dimension: Length
- 69 mm
- Diameter
- 38 mm
- weight magnet
- 500 g
- weight anchor
- 120 g
Mechanical features
- Thread
- Ø3,6mm

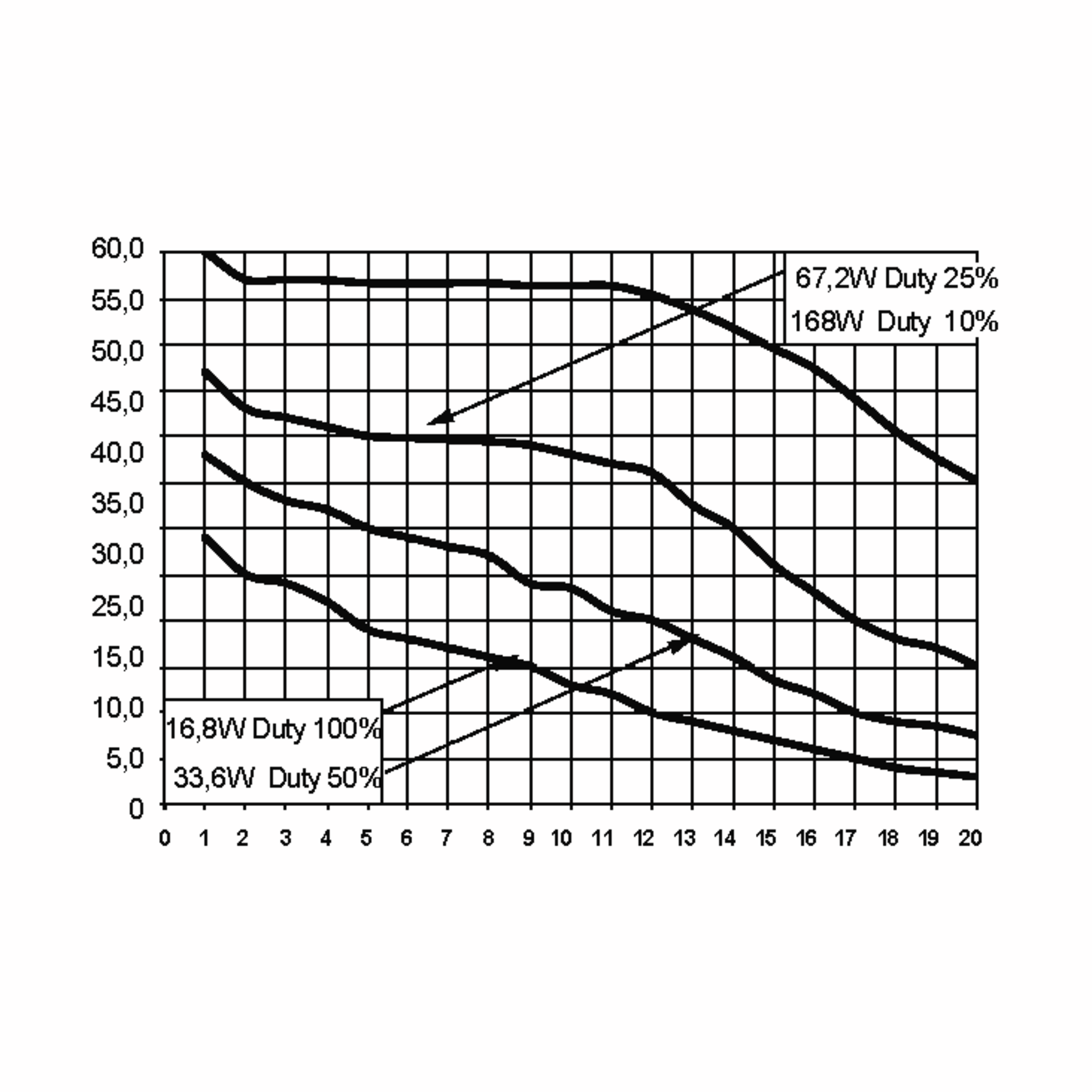

Technical features
- Rated Voltage
- 12 V
- Rated power
- 16.8 W
- Power, max.
- 16.8 W
- Duty cycle, rel.
- 100 %
- Holding force
- 4.2 kg
- Initial force
- 0.5 kg
- Final force
- 8.5 kg
