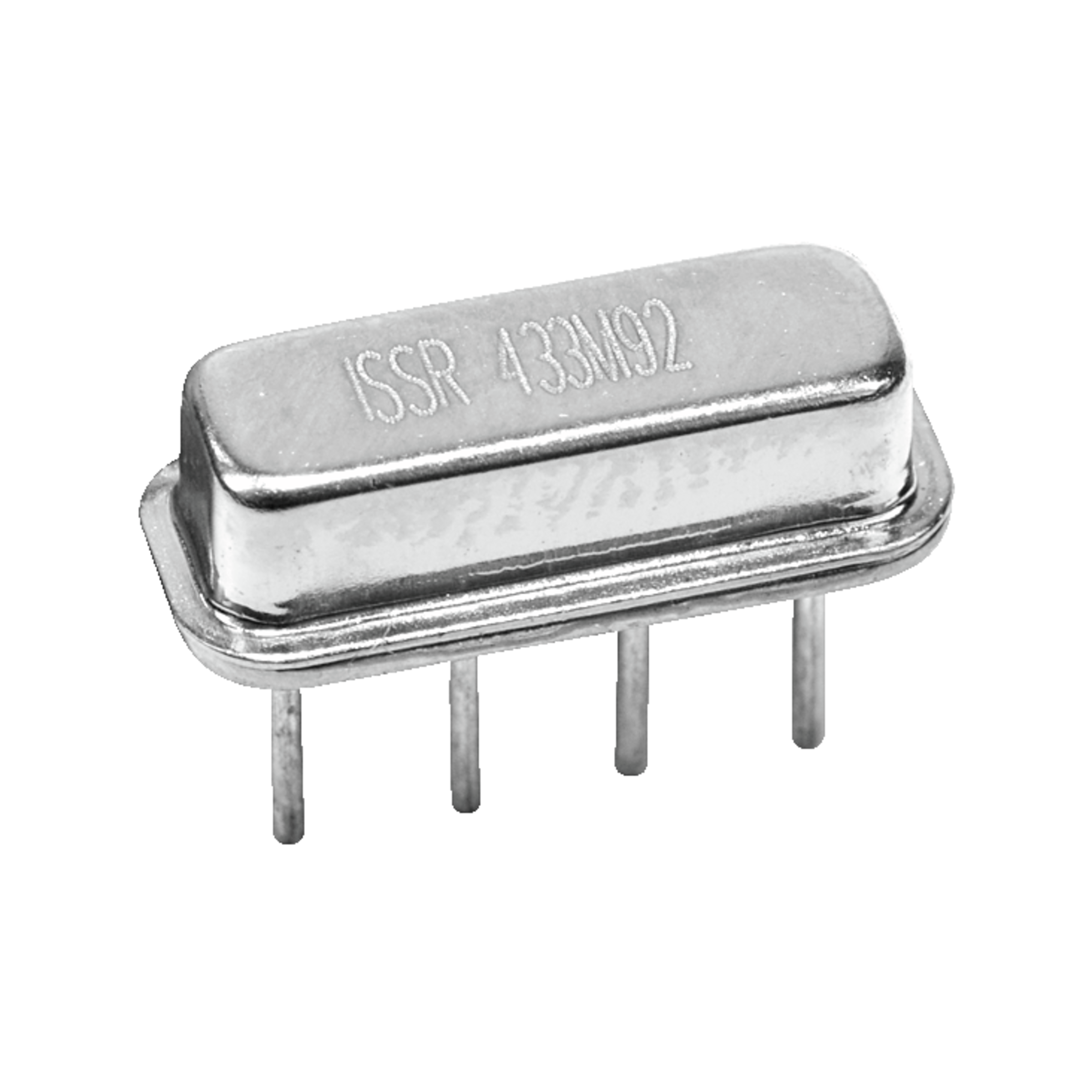

ISSR433.92-75-F11
Red Frequency SAW resonators IS SR F11 433,92MHz
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2000 or multiple of 2000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- IS SR F11
- Frequency
- 433.92 MHz
- RoHS-Conform
Specifications
Open all
Technical features
- Insertion loss, type
- 1.5 dB
- Quality factor, unloaded
- 12,800
- Bandwidth, typ.
- 75 kHz
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Frequency
- 433.92 MHz
