IRZTTCP004.000MG

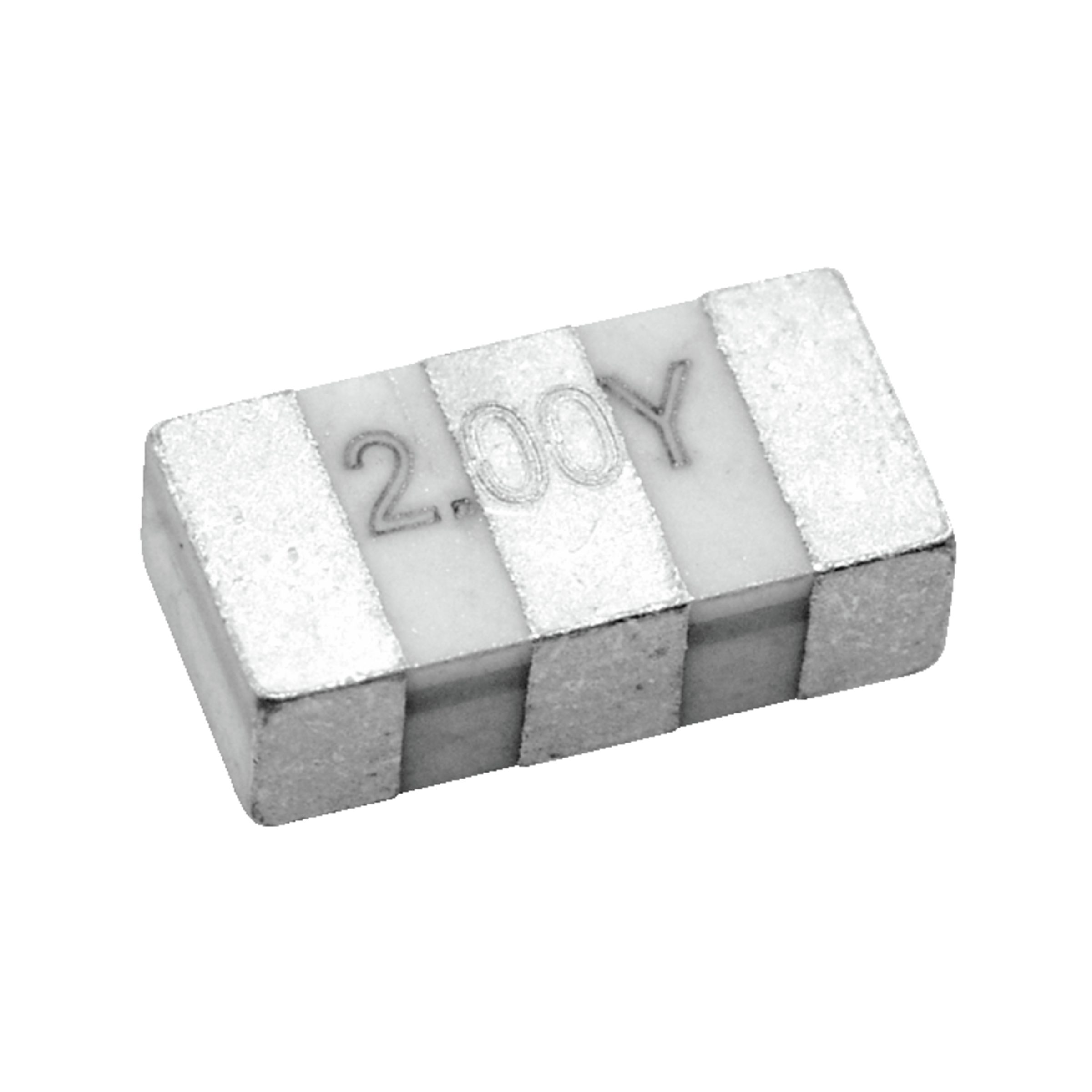

Red Frequency Ceramic resonators IR ZTTCP 4MHz -0,5-0,5%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Next Stock Receipt
Week 45/2024
3.250 Pcs.
3.250 Pcs.
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- IR ZTTCP
- Frequency
- 4 MHz
- Frequency tolerance
- -0,5 - 0,5 %
- Temperature stability
- -0,3 - 0,3 %
- Load capacity
- 30 pF
- RoHS-Conform
Specifications
Open all
Technical features
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 80 °C
- Frequency
- 4 MHz
- Frequency tolerance
- -0,5 - 0,5 %
- Temperature stability
- -0,3 - 0,3 %
- Ageing in 10 years
- -0,3 - 0,3 %
- Load capacity
- 30 pF
- Resonant Resistance
- 40 Ohm
- Insulation resistance
- 100 MOhm
- Dielectric strength
- 100 V
