IC26040.000K12.5AH1C

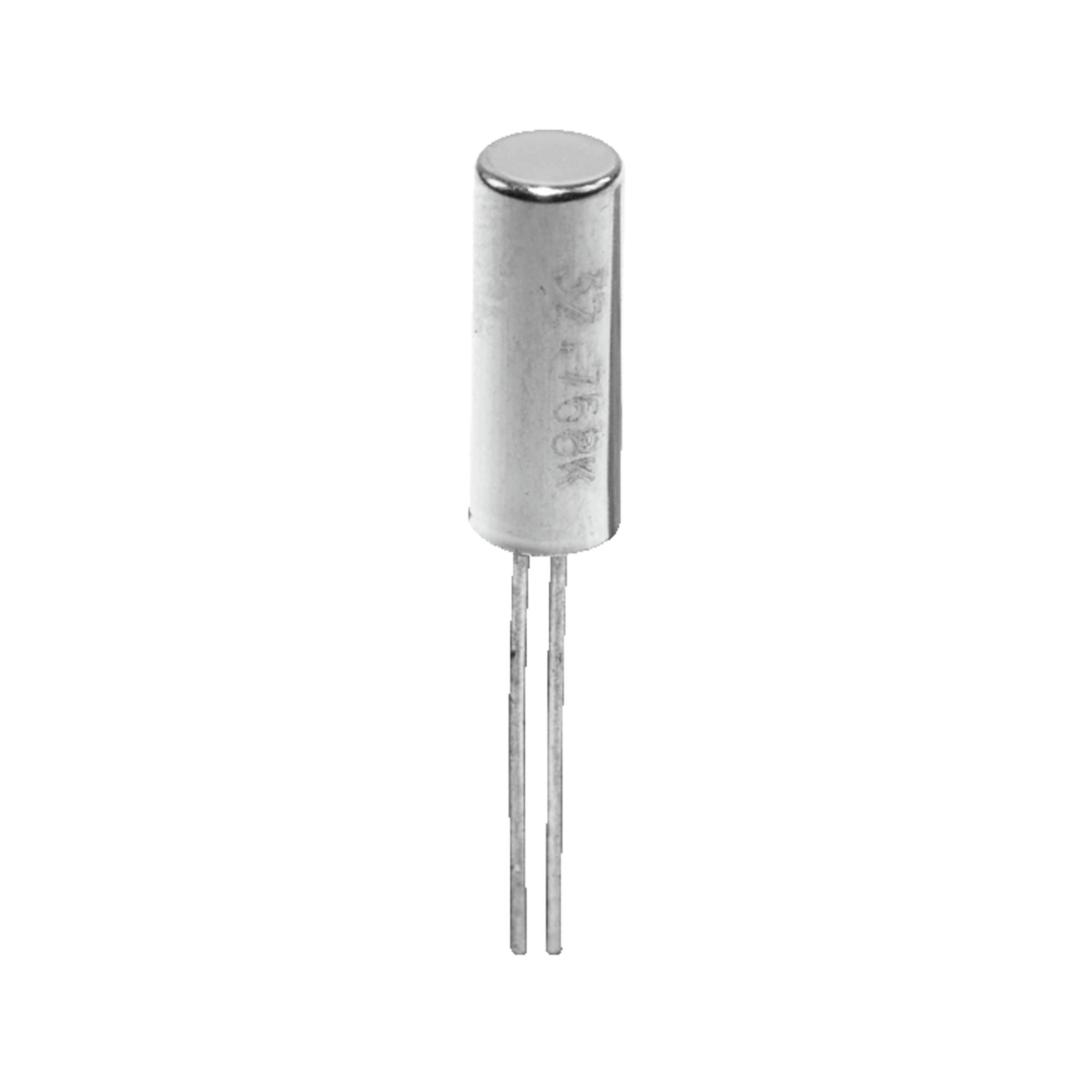

Red Frequency Crystal IC 26 Metal housing 0,04MHz ±10ppm 8,3mm x 3mm x 12,5pF
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
500 Pcs.
500 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- IC 26
- Package/Case
- Metal housing
- Frequency
- 0.04 MHz
- Frequency tolerance
- ±10 ppm
- Load capacity
- 12.5 pF
- Ageing, max.
- ±3 ppm/Jahr
- Load, max.
- 1,0 µW
- RoHS-Conform
Specifications
Open all

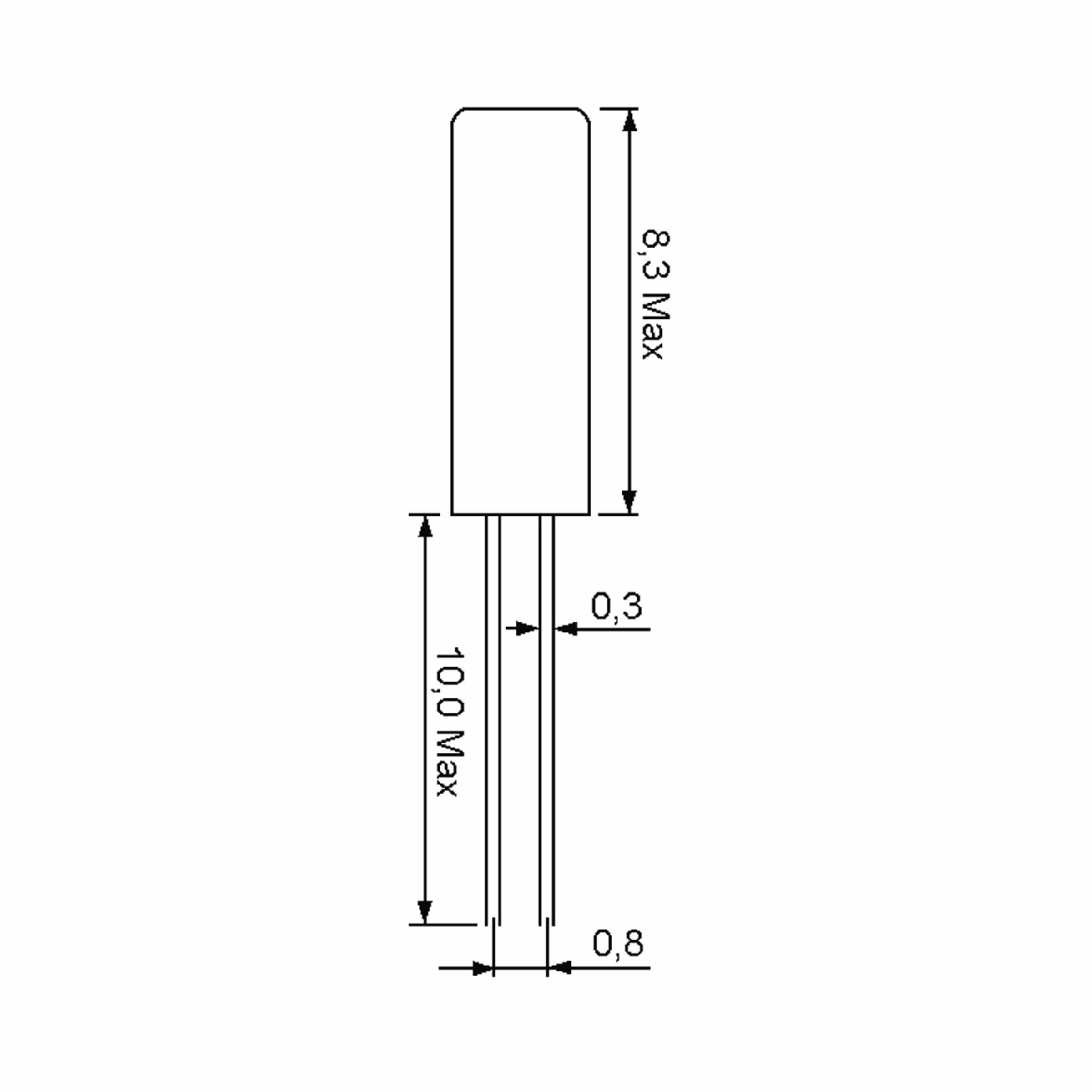

Dimensions and weights
- Dimension: Length
- 8.3 mm
- Dimension: Width
- 3 mm
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 60 °C
- Minimum Storage Temperature
- -55 °C
- Maximum Storage Temperature
- 125 °C
Technical features
- Frequency
- 0.04 MHz
- Frequency tolerance
- ±10 ppm
- Temperature coefficient, max.
- -0.042 ppm/°C²
- max. Equivalent Series Resistance
- 50 kOhm
- Shunt capacity, max.
- 1.25 pF
- Load capacity
- 12.5 pF
- Load, max.
- 1,0 µW
- Ageing, max.
- ±3 ppm/Jahr
