IC18013.560M30.0CE1B

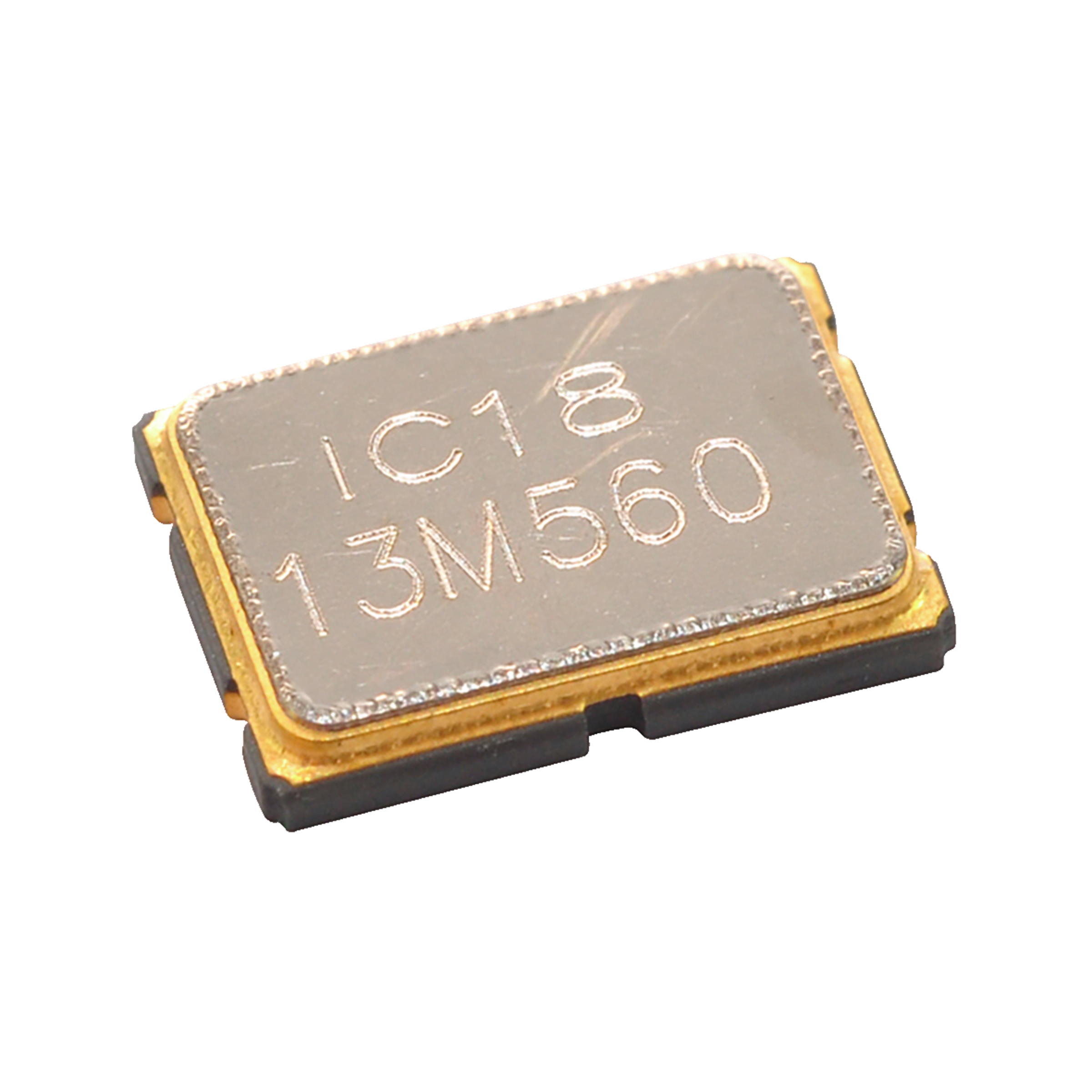

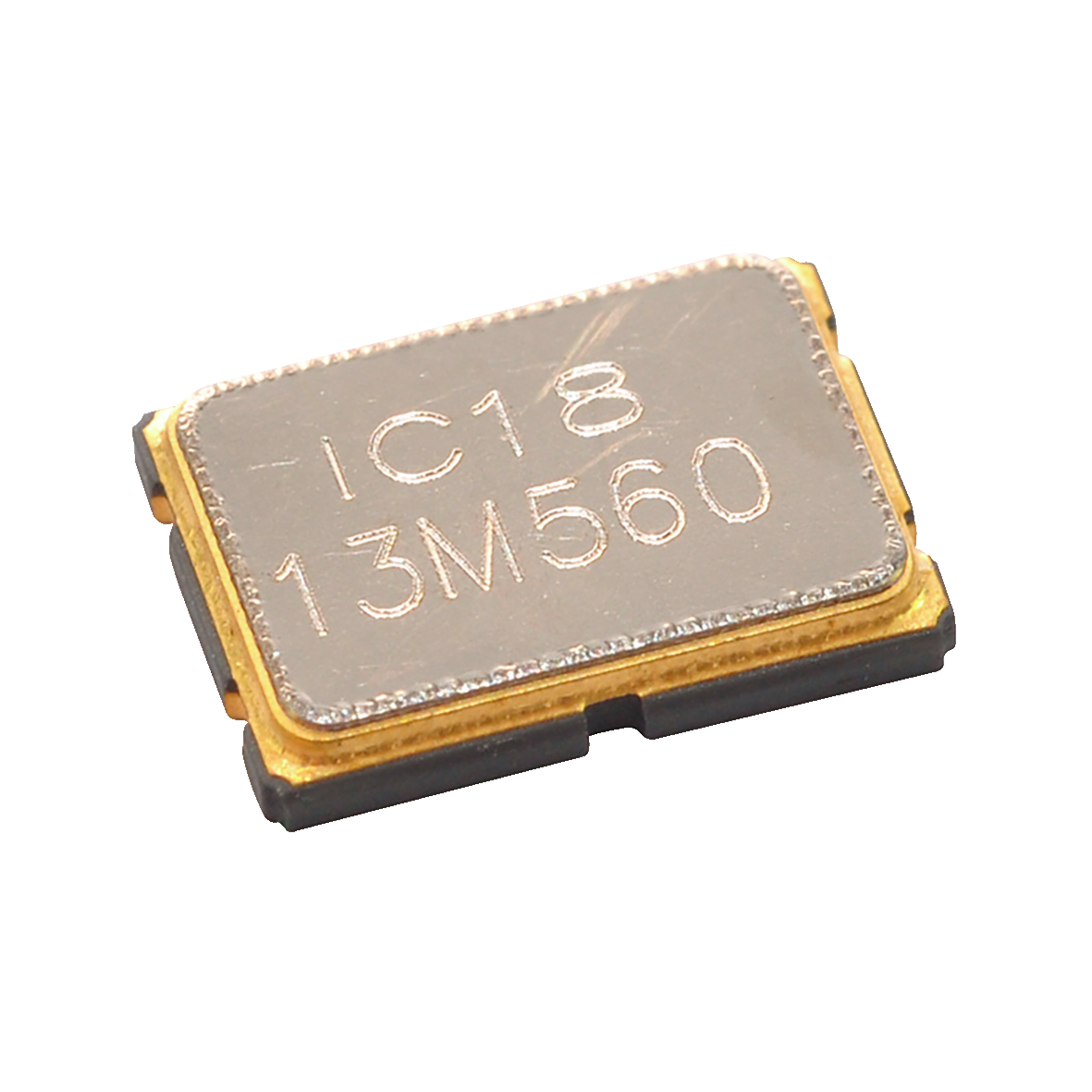

Red Frequency SMD Crystal IC 18 Ceramic case 13,56MHz ±30ppm 7,2mm x 5,2mm x 1,2mm 30pF
Manufacturer Part No.
IC18013.560M30.0CE1B
Schukat Part No.
IC18SMD13.560
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
500 Pcs.
500 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- IC 18
- Package/Case
- Ceramic case
- Frequency
- 13.56 MHz
- Frequency tolerance
- ±30 ppm
- Load capacity
- 30 pF
- Ageing, max.
- ±3 ppm/Jahr
- RoHS-Conform
Specifications
Open all

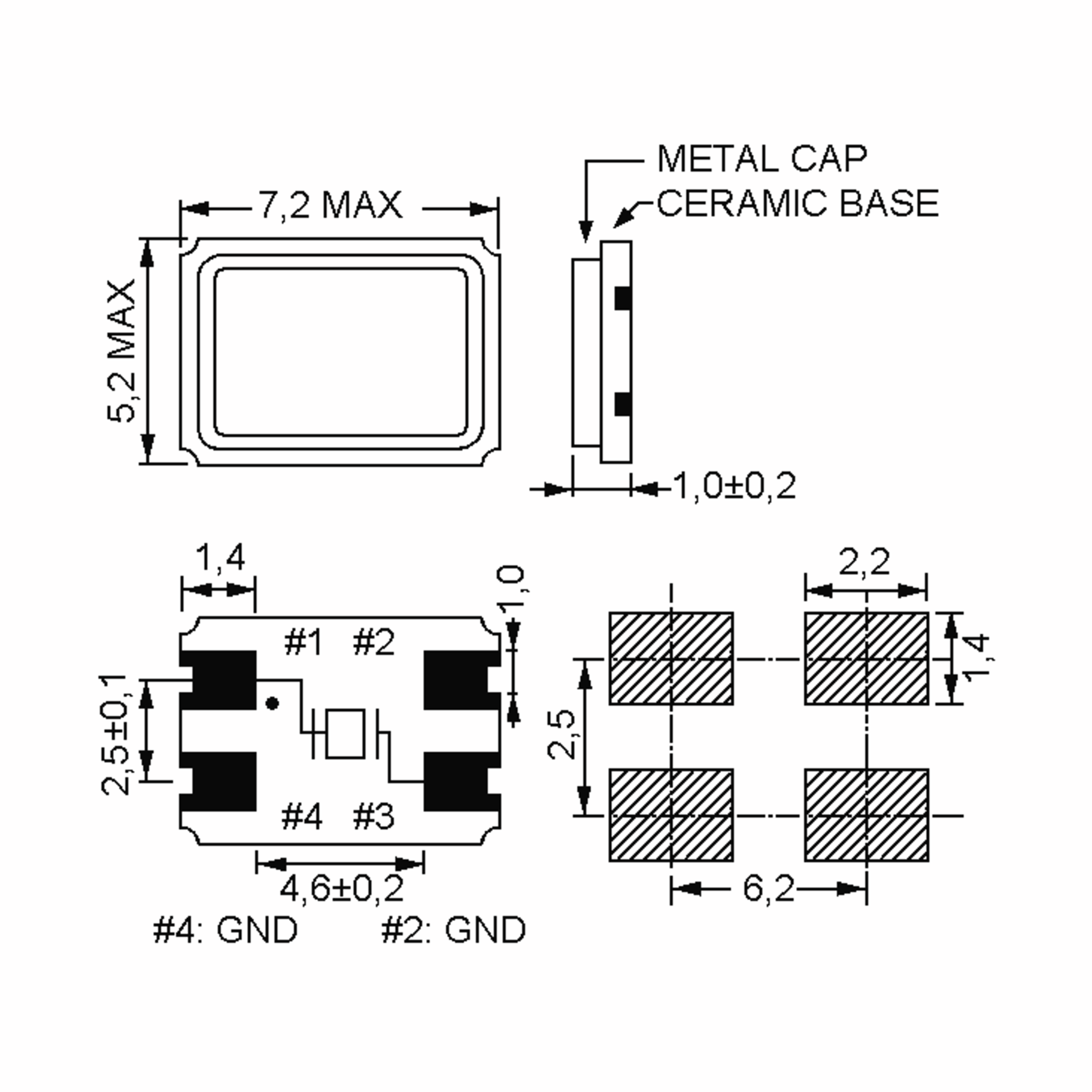

Dimensions and weights
- Dimension: Length
- 7.2 mm
- Dimension: Width
- 5.2 mm
- Dimension: Height
- 1.2 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Minimum Storage Temperature
- -55 °C
- Maximum Storage Temperature
- 125 °C
Technical features
- Frequency
- 13.56 MHz
- Frequency tolerance
- ±30 ppm
- max. Equivalent Series Resistance
- 40 Ohm
- Shunt capacity, max.
- 7 pF
- Load capacity
- 30 pF
- Ageing, max.
- ±3 ppm/Jahr
