IC16018.432M20.0CE1B

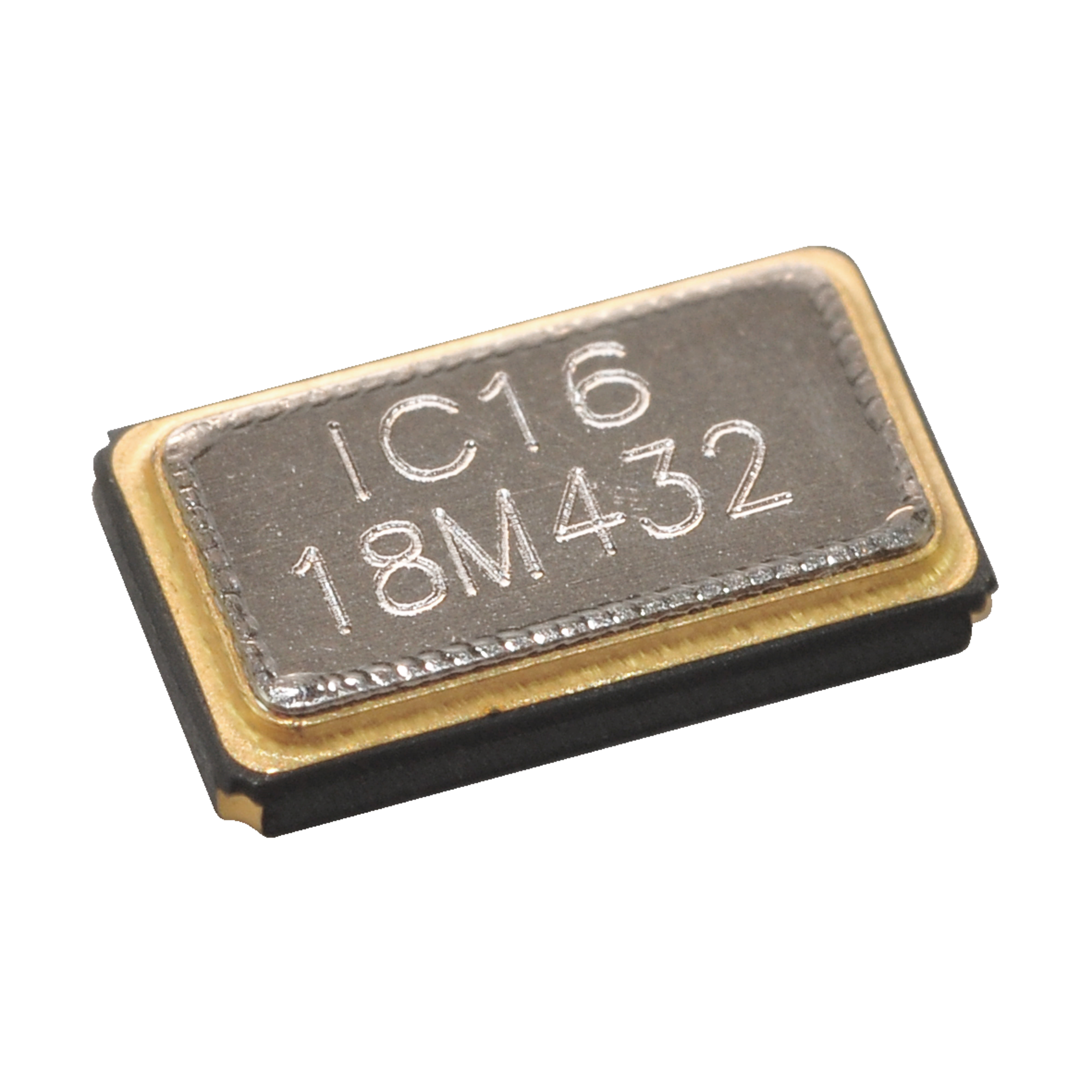

Red Frequency SMD Crystal IC 16 Ceramic case 18,432MHz ±30ppm 6,2mm x 3,7mm x 1,2mm 20pF
Manufacturer Part No.
IC16018.432M20.0CE1B
Schukat Part No.
IC16SMD18.432
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- IC 16
- Package/Case
- Ceramic case
- Frequency
- 18.432 MHz
- Frequency tolerance
- ±30 ppm
- Load capacity
- 20 pF
- Ageing, max.
- ±2 ppm/Jahr
- RoHS-Conform
Specifications
Open all

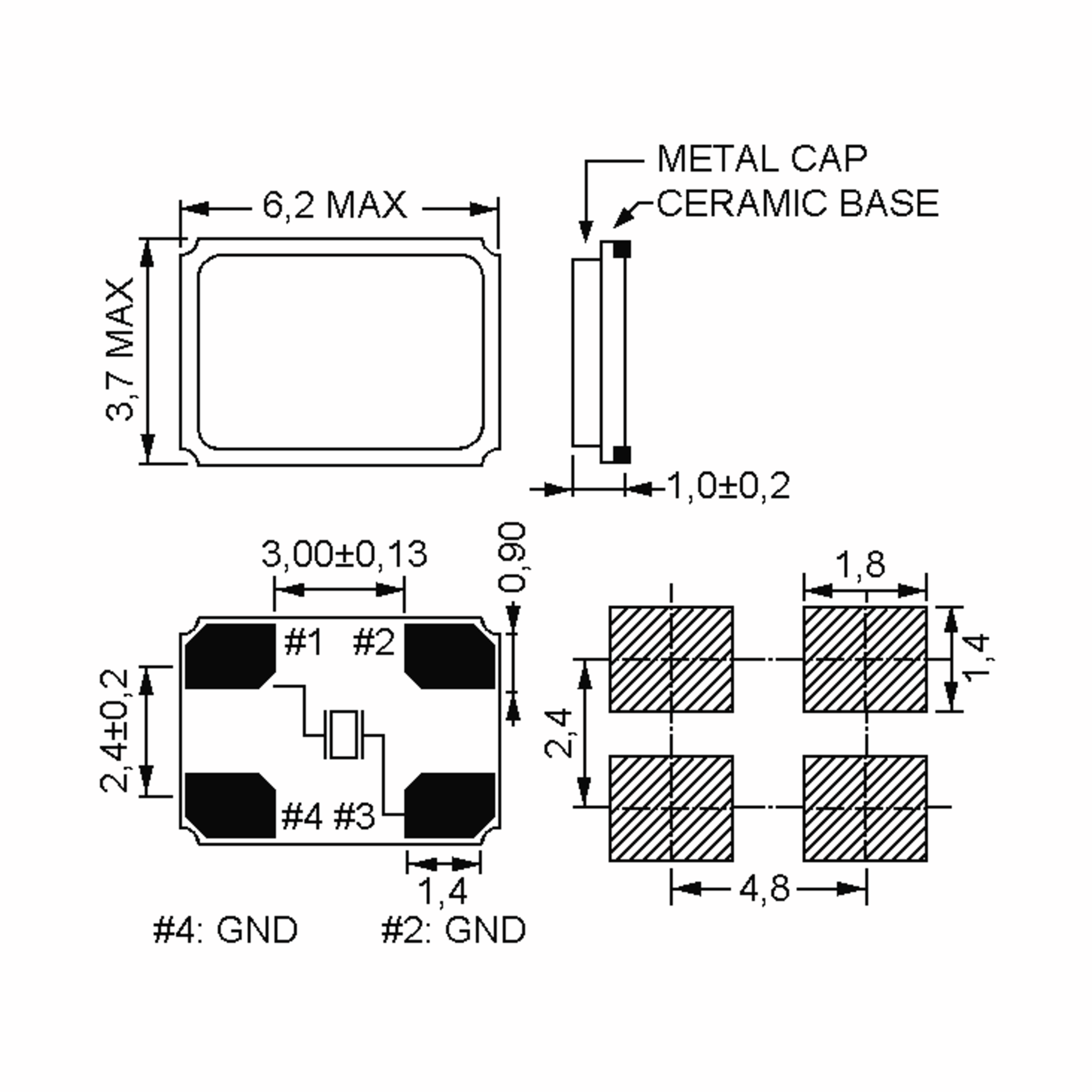

Dimensions and weights
- Dimension: Length
- 6.2 mm
- Dimension: Width
- 3.7 mm
- Dimension: Height
- 1.2 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Minimum Storage Temperature
- -55 °C
- Maximum Storage Temperature
- 125 °C
Technical features
- Frequency
- 18.432 MHz
- Frequency tolerance
- ±30 ppm
- max. Equivalent Series Resistance
- 60 Ohm
- Shunt capacity, max.
- 5 pF
- Load capacity
- 20 pF
- Ageing, max.
- ±2 ppm/Jahr
