RPZ-3.0A-CT

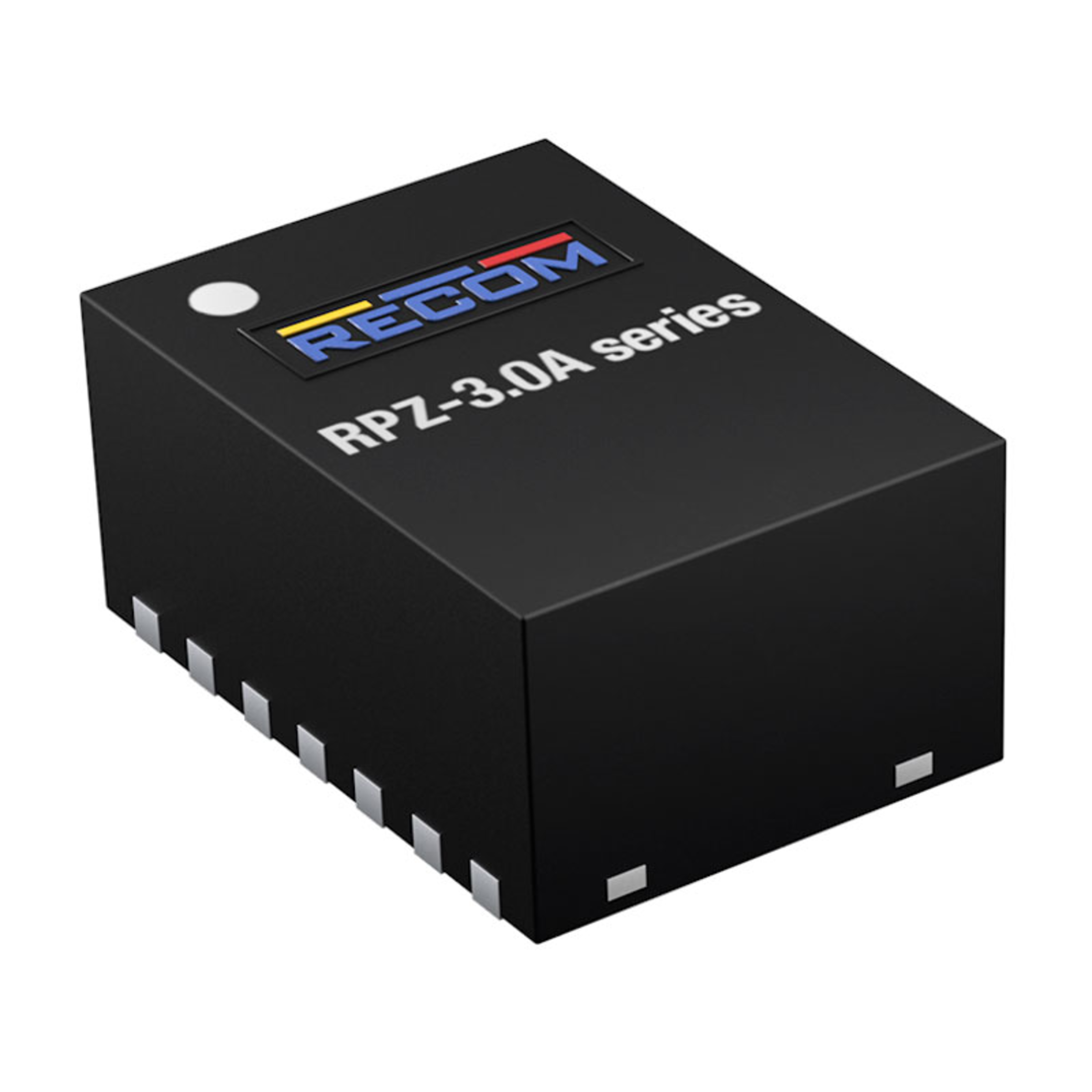

Recom DC/DC switching regulator (non-isolated) buck 5V 3A QFN

RPZ-3.0A-CT
Manufacturer Part No.
RPZ-3.0A-CT
Schukat Part No.
RPZ-3.0A-CT
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

150 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
buck
Package/Case
QFN
Output Power
15 W
Output voltage
5 V
Output current
3.000 A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RPZ-3.0A
Product group
  • M2829
Application
  • ITE
  • Industry
Operating mode
  • buck
Package/Case
  • QFN
Dimension: Length
  • 2.5 mm
Dimension: Width
  • 3.5 mm
Dimension: Height
  • 1.6 mm
Packaging
  • Bag
Weight
  • 0.1 g
Manufacturer's warranty (years)
  • 3
Product description
  • Introducing the RPZ-3.0A, the latest innovation in non-isolated step-down power modules. This compact powerhouse redefines expectations with its cutting-edge features and compact design, making it an ideal choice for applications demanding efficiency, reliability, and space optimization such as portable electronics, IoT devices, embedded systems, industrial automation, and for powering microcontrollers and sensors. The RPZ-3.0A is a buck regulator power module that incorporates an integrated shielded inductor, ensuring optimal performance in a variety of settings. With a maximum input voltage of 6V, this module is designed for efficiency and size, offering a stable and reliable power conversion solution for low-voltage applications. Flexibility is at the core of the RPZ-3.0A, allowing for programmable output voltages ranging from 0.6V to 5.5V. Delivering up to 3A of maximum output current, the RPZ-3.0A is engineered to power a variety of electronic devices and systems efficiently. Safety is paramount, and this module comes equipped with Short Circuit Protection (SCP), Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO) features, ensuring the longevity and protection of connected devices. Housed in an incredibly compact 2.5mm x 3.5mm x 1.6mm QFN package, the RPZ-3.0A is designed to maximize space efficiency without compromising performance. The integration of Flip-Chip technology enhances thermal management, ensuring the module operates at peak efficiency even in demanding conditions. With an impressive efficiency rating of up to 92%, the RPZ-3.0A not only meets but exceeds industry standards. This high efficiency not only minimizes energy consumption but also reduces heat generation, contributing to the overall reliability and extended lifespan of the module. The RPZ-3.0A is a non-isolated step-down power module that combines compact design, versatility, and advanced thermal management for a reliable and efficient power solution in a minimal footprint.
Features
  • Adjustable Output Voltage
  • DC-OK-Signal
  • Remote Function
  • Remote Sense

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 75 °C
Storage Temperature Min.
  • -65 °C
Storage Temperature Max.
  • 150 °C

Input

Input voltage min. DC
  • 2.75 V
Input voltage max. DC
  • 6 V
Efficiency
  • 92 %
Connection type, input
  • SMD

Output

Output Power
  • 15 W
Output voltage
  • 5 V
Output Voltage Min.
  • 0.6 V
Output Voltage Max.
  • 5.5 V
Output current
  • 3.000 A
Short-circuit protection
Overtemperature protection
Connection type, output
  • SMD

Documents

Recom_Katalog.pdf
Download (pdf, 10.818 KB)
