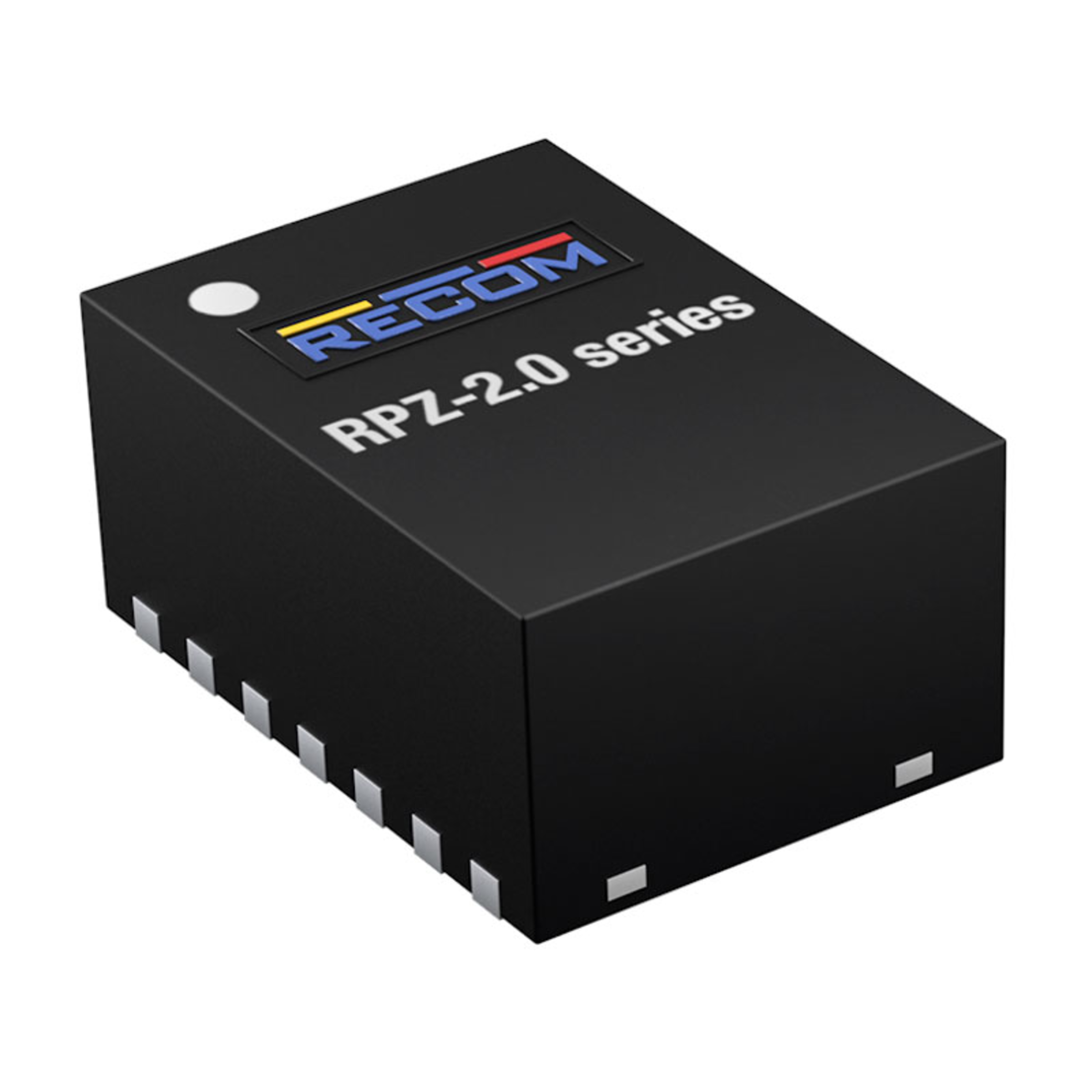

RPZ-2.0-CT

Recom DC/DC switching regulator (non-isolated) buck 5V 2A QFN

RPZ-2.0-CT
Manufacturer Part No.
RPZ-2.0-CT
Schukat Part No.
RPZ-2.0-CT
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

150 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
buck
Package/Case
QFN
Output Power
10 W
Output voltage
5 V
Output current
2.000 A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RPZ-2.0
Product group
  • M2827
Application
  • ITE
  • Industry
Operating mode
  • buck
Package/Case
  • QFN
Dimension: Length
  • 2.5 mm
Dimension: Width
  • 3.5 mm
Dimension: Height
  • 1.6 mm
Packaging
  • Bag
Weight
  • 0.1 g
Manufacturer's warranty (years)
  • 3
Product description
  • The RPZ-2.0 is a synchronous buck converter with integrated inductor in a tiny 2.5mm x 3.5mm x 1.6mm thermally-enhanced QFN package. The input range is from 2.75 to 6VDC. The output voltage can be set with two resistors in the range from 0.6V up to 5.74V. The output current is up to 2A and is fully protected against continuous short-circuits, output overcurrent, or over-temperature faults. Its high current and small size make the RPZ-2.0 ideal for imaging systems, distributed power architectures, optical modules, FPGA, ASIC, DSP power, and portable battery-powered equipment in telecom as well as industrial applications.
Features
  • Adjustable Output Voltage
  • DC-OK-Signal
  • Remote Function
  • Remote Sense

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 102 °C
Storage Temperature Min.
  • -65 °C
Storage Temperature Max.
  • 150 °C

Input

Input voltage min. DC
  • 2.75 V
Input voltage max. DC
  • 6 V
Efficiency
  • 90 %
Connection type, input
  • SMD

Output

Output Power
  • 10 W
Output voltage
  • 5 V
Output Voltage Min.
  • 0.6 V
Output Voltage Max.
  • 5.74 V
Output current
  • 2.000 A
Short-circuit protection
Overtemperature protection
Connection type, output
  • SMD

Documents

Recom_Katalog.pdf
Download (pdf, 10.818 KB)
