RPH-3.0-T

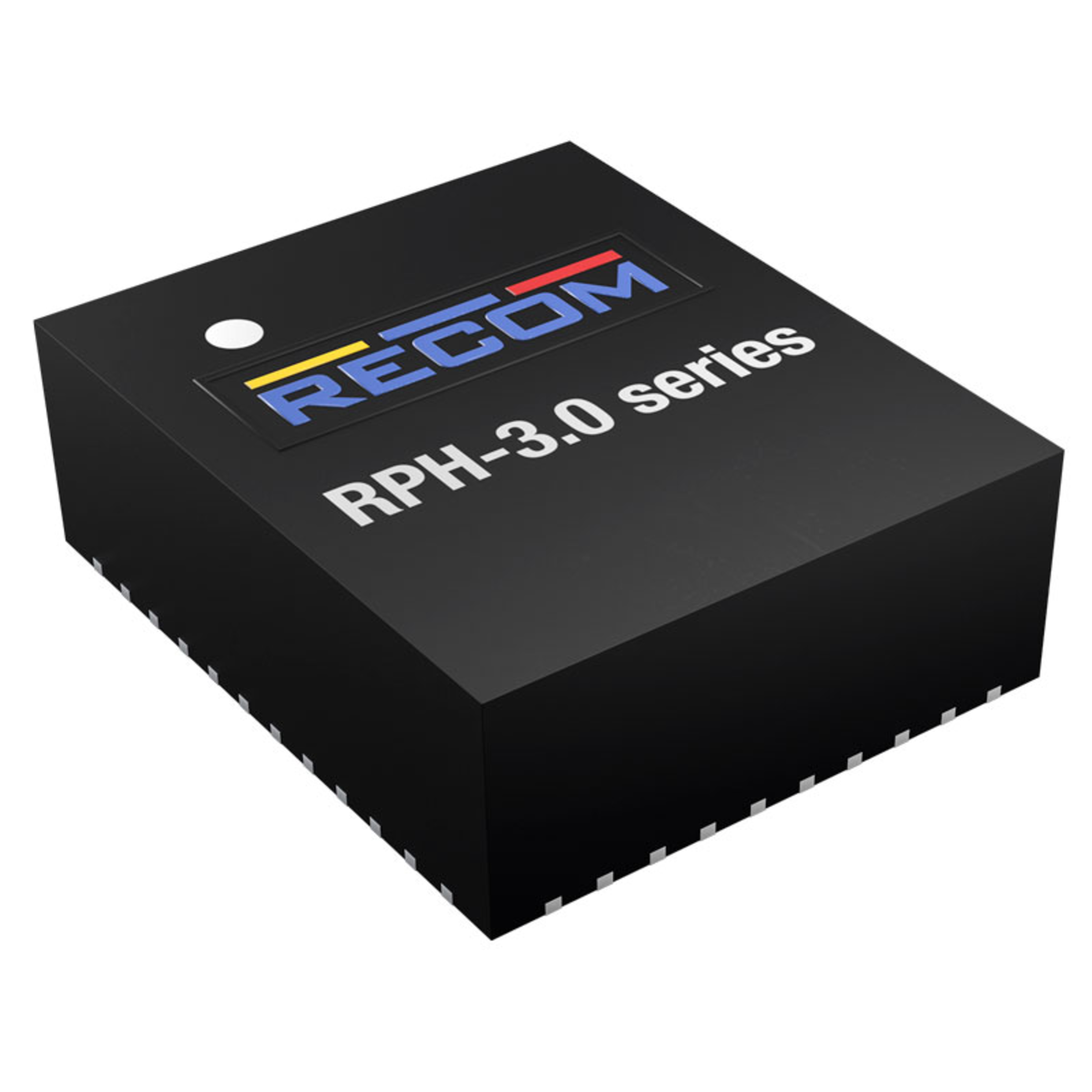

Recom DC/DC switching regulator (non-isolated) buck 5V 3A QFN

RPH-3.0-T
Manufacturer Part No.
RPH-3.0-T
Schukat Part No.
RPH-3.0-T
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 210 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 210 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
buck
Package/Case
QFN
Output Power
15 W
Output voltage
5 V
Output current
3.000 A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RPH-3.0
Product group
  • M2882
Application
  • ITE
  • Industry
Operating mode
  • buck
Package/Case
  • QFN
Dimension: Length
  • 10 mm
Dimension: Width
  • 12 mm
Dimension: Height
  • 4 mm
Packaging
  • Tray
Weight
  • 0.1 g
Manufacturer's warranty (years)
  • 3
Product description
  • The RPH-3.0 series, a state-of-the-art, non-isolated step-down power module, is a compact and versatile solution designed to meet demanding power conversion requirements with efficiency and precision. This step-down power module is equipped with an integrated shielded inductor and offers a variety of features that ensure optimal performance and reliability. With a maximum input voltage of 55 V, this module offers a robust solution for various applications and ensures stable and efficient voltage regulation. The output voltage is fully programmable in the range of 1 to 15 V, providing the flexibility to meet specific system requirements. With a maximum output current of up to 3A, this power module is suitable for powering a range of electronic devices and systems. Safety is a top priority and this module is equipped with short circuit protection (SCP), over current protection (OCP), over voltage protection (OVP) and under voltage protection (OVP) to ensure the longevity and protection of the connected devices. The compact 10mm x 12mm x4mm QFN package makes this power module ideal for applications with space constraints and allows for easy integration. The use of flip-chip technology improves thermal management and ensures that the module operates efficiently even under demanding conditions. With an impressive efficiency of up to 91%, this non-isolated step-down power module not only meets but exceeds industry standards. The high efficiency not only contributes to lower energy consumption, but also minimizes heat generation, increasing the overall reliability and lifetime of the module. The RPH-3.0 series is a state-of-the-art solution that combines cutting-edge technology with compact design and robust protection features for all consumer electronic devices, industrial applications or any other project that requires a reliable point load power supply with consistent and efficient performance.
Features
  • Adjustable Output Voltage
  • DC-OK-Signal
  • Remote Function

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 86 °C
Storage Temperature Min.
  • -65 °C
Storage Temperature Max.
  • 150 °C

Input

Input voltage min. DC
  • 4.5 V
Input voltage max. DC
  • 55 V
Efficiency
  • 91 %
Connection type, input
  • SMD

Output

Output Power
  • 15 W
Output voltage
  • 5 V
Output Voltage Min.
  • 1 V
Output Voltage Max.
  • 15 V
Output current
  • 3.000 A
Short-circuit protection
Overtemperature protection
Connection type, output
  • SMD
