RPE-021-WB5S

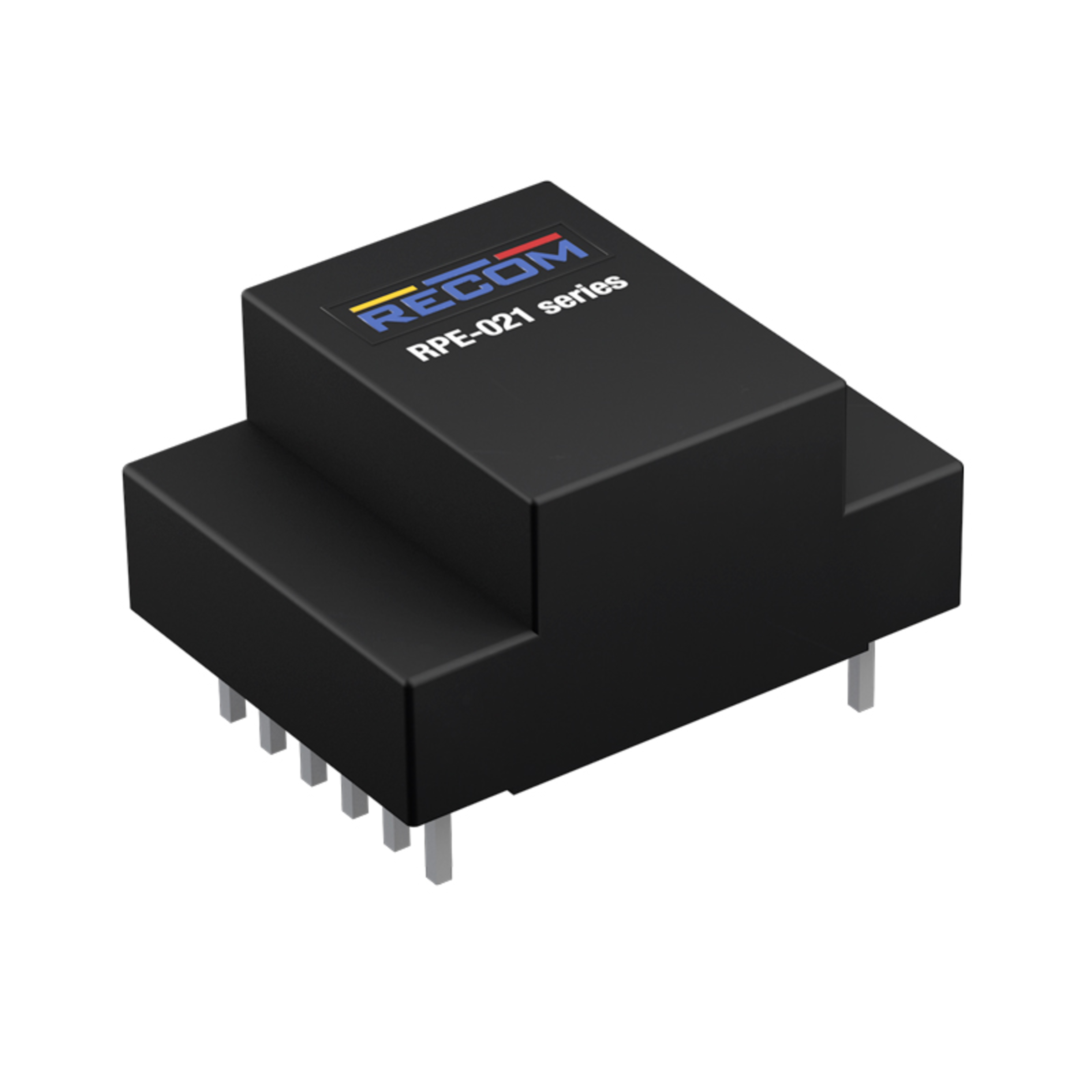

Recom Switching transformer Flyback 1:2.25:1:1.25 0,011mH

RPE-021-WB5S
Manufacturer Part No.
RPE-021-WB5S
Schukat Part No.
RPE-021-WB5S
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 40 or multiple of 40)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable driver and rectifier controller ICs in the range Special Power Management.
Design
Flyback
Transmission ratio
1:2.25:1:1.25
Primary Voltage
32 V
Insulation voltage
6.08 kV DC
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Type
  • Switching transformer
Series
  • RPE
Product group
  • M4875
Housing
  • THT
Design
  • Flyback
Transmission ratio
  • 1:2.25:1:1.25
Packaging
  • Tray
Warranty (years)
  • 1
Product description
  • High-performance isolation transformers for modern DC/DC architectures RECOM’s XFMR series is a comprehensive range of high-frequency isolation transformers that are perfectly matched to modern flyback, push-pull and full-bridge DC/DC controller ICs.
Notice
Application note
  • Switching transformer for building a discrete power supply.

Dimensions and Weights

Dimension: Length
  • 23.3 mm
Dimension: Width
  • 17.2 mm
Dimension: Height
  • 11 mm
Weight
  • 6.44 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C

Technical Features

Inductance
  • 0,011 mH
Primary DC resistance
  • 0.17 Ohm
Secondary DC resistance
  • 0.06 Ohm
Number of inputs
  • 1
Primary Voltage
  • 32 V
Number of outputs
  • 2
Secondary Current
  • 2000 mA
Insulation voltage
  • 6.08 kV DC
