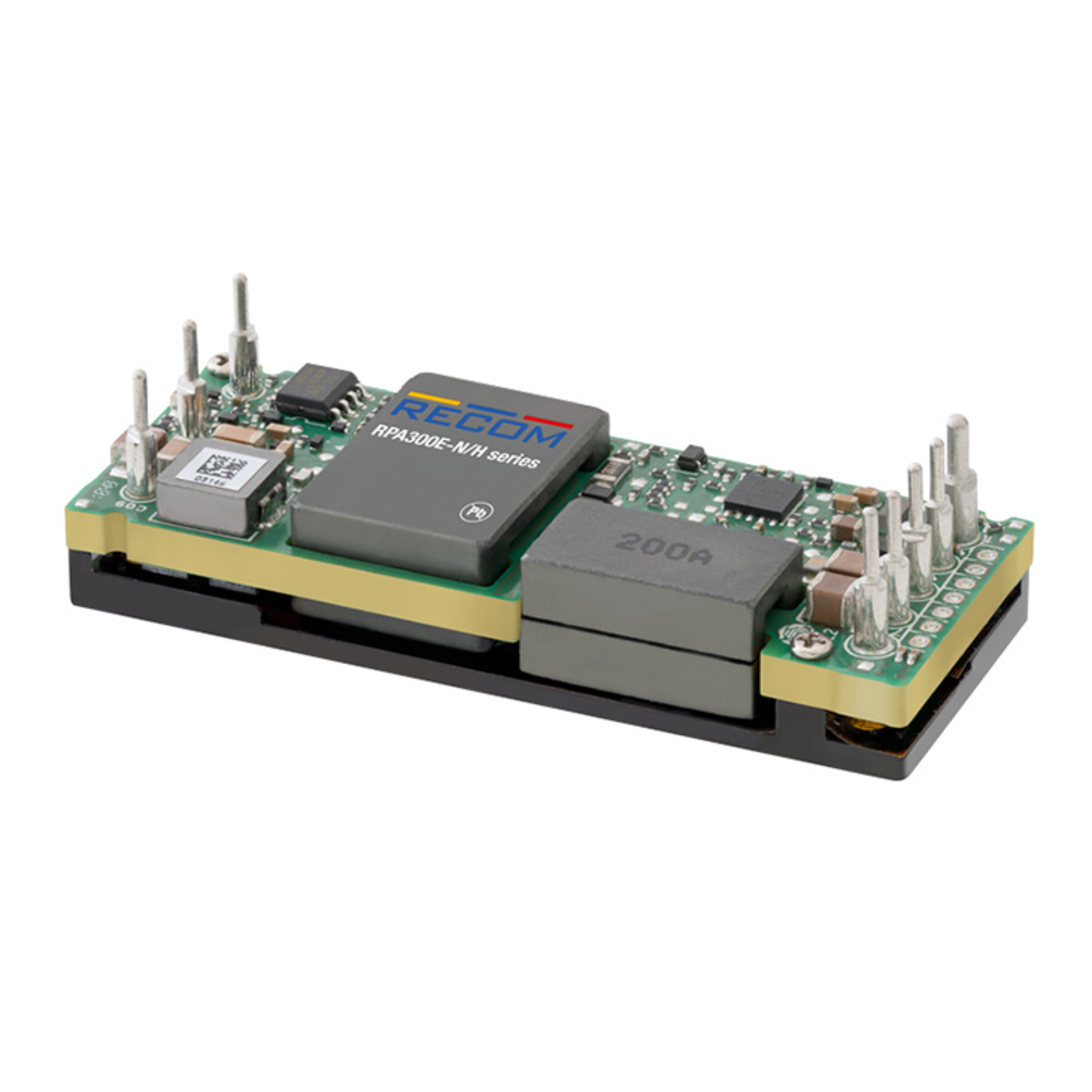

RPA300E-4832S/N/H

Recom DC/DC converter regulated 32 V 9,4 A 1/8 Brick 2.250 V

Manufacturer Part No.
RPA300E-4832S/N/H
Schukat Part No.
RPA300E-4832S/N/H
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 35 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 6 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
1/8 Brick
Output Power
300 W
Output voltage
32 V
Output current
9.400 A
Isolation voltage I/P-O/P
2,250 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RPA300E
Product group
  • M2098
Application
  • ITE
  • Industry
Operating mode
  • regulated

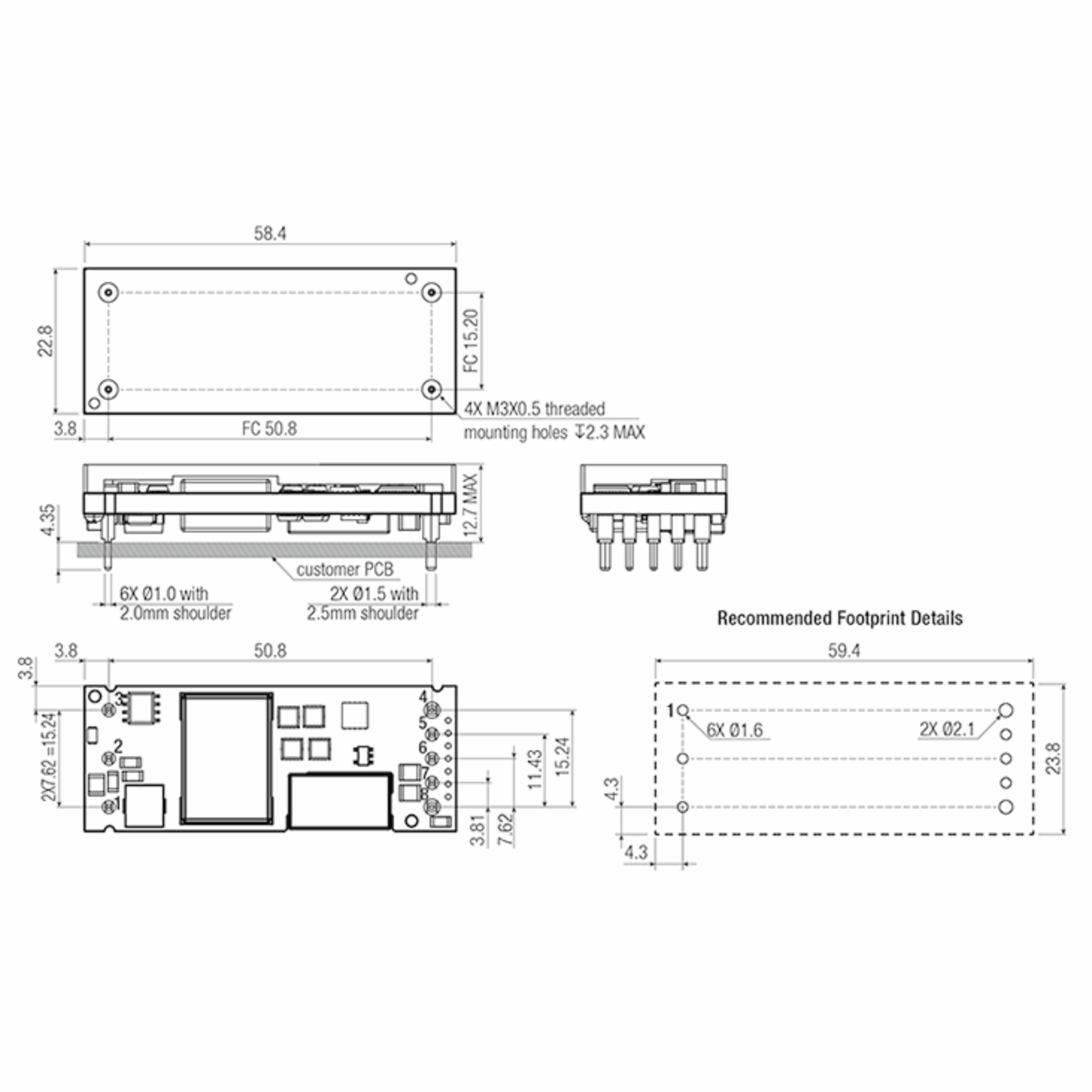

Package/Case
  • 1/8 Brick
Dimension: Length
  • 58.8 mm
Dimension: Width
  • 22.8 mm
Dimension: Height
  • 11 mm
Weight
  • 40 g
Manufacturer's warranty (years)
  • 3
Features
  • Adjustable Output Voltage
  • Remote Function
  • Remote Sense

Operating conditions

MTBF
  • 5,900,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 125 °C

Input

Nominal input voltage
  • 48 V
Input voltage min. DC
  • 36 V
Input voltage max. DC
  • 72 V
Input voltage range
  • 2:1
Efficiency
  • 94.8 %
Connection type, input
  • THT

Output

Number of outputs
  • 1
Output Power
  • 300 W
Output voltage
  • 32 V
Output Voltage Min.
  • 16 V
Output Voltage Max.
  • 35 V
Output voltage tolerance
  • -1.5 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 9.400 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • THT

Safety/Certifications

Isolation voltage I/P-O/P
  • 2,250 V
Approvals
  • CSA
  • UL
Standards (safety)
  • UL 62368-1
