RP100-2424SFW/P

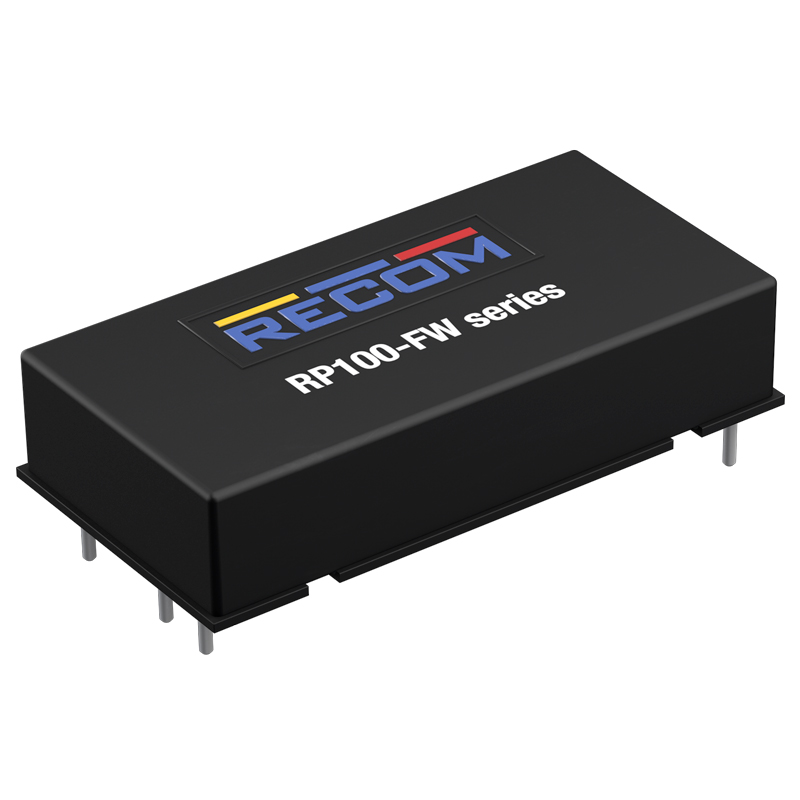

Recom DC/DC converter regulated 24 V 24 A 2"*1" 2.250 V

RP100-2424SFW/P
NEW
Manufacturer Part No.
RP100-2424SFW/P
Schukat Part No.
RP100-2424SFW/P
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 9 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
2"*1"
Output Power
100 W
Output voltage
24 V
Output current
24.000 A
Isolation voltage I/P-O/P
2,250 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Recom
Series
  • RP100-FW
Product group
  • M2048
Application
  • ITE
  • Industry
Operating mode
  • regulated
Package/Case
  • 2"*1"
Dimension: Length
  • 50.8 mm
Dimension: Width
  • 25.4 mm
Dimension: Height
  • 11.5 mm
Packaging
  • Tube
Weight
  • 47.2 g
Manufacturer's warranty (years)
  • 3
Product description
  • The RP100-FW series is a family of high-performance, isolated 100-W DC/DC converters with a wide 4:1 input voltage range and efficiency of up to 94%. It was developed for demanding applications in the transportation, industrial, and automation sectors, as well as in test and measurement, data communications, and telecommunications. The series offers 2.25 kV DC isolation and comprehensive protection features, including overvoltage protection (OVP), undervoltage protection (OLP), overtemperature protection (OTP), and continuous short-circuit protection. With an operating temperature range of -40 °C to +110 °C, an operating altitude of up to 5,000 m, and optional versions with heat sinks for improved heat dissipation, the RP100-FW series ensures reliable operation in harsh environments. The output voltage is adjustable by ±10%, and remote on/off control is available with positive or negative logic. The series complies with RoHS and REACH standards.
Features
  • Adjustable output current
  • Remote Function

Operating conditions

MTBF
  • 999,500 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 110 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 125 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 9 V
Input voltage max. DC
  • 36 V
Input voltage range
  • 4:1
Efficiency
  • 93 %
Connection type, input
  • THT

Output

Number of outputs
  • 1
Output Power
  • 100 W
Output voltage
  • 24 V
Output Voltage Min.
  • 21.6 V
Output Voltage Max.
  • 26.4 V
Ausgangsspannungstoleranz[%]
  • -1 - 1
Ripple & Noise
  • 200 mVp-p
Output current
  • 24.000 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • THT
Capacitive load, max.
  • 1,300 µF

Safety/Certifications

Isolation voltage I/P-O/P
  • 2,250 V
Approvals
  • CSA
  • UL
Standards (EMC)
  • EN 55032 Class A
Standards (safety)
  • UL 62368-1

Documents

Recom_Katalog.pdf
Download (pdf, 10.818 KB)
