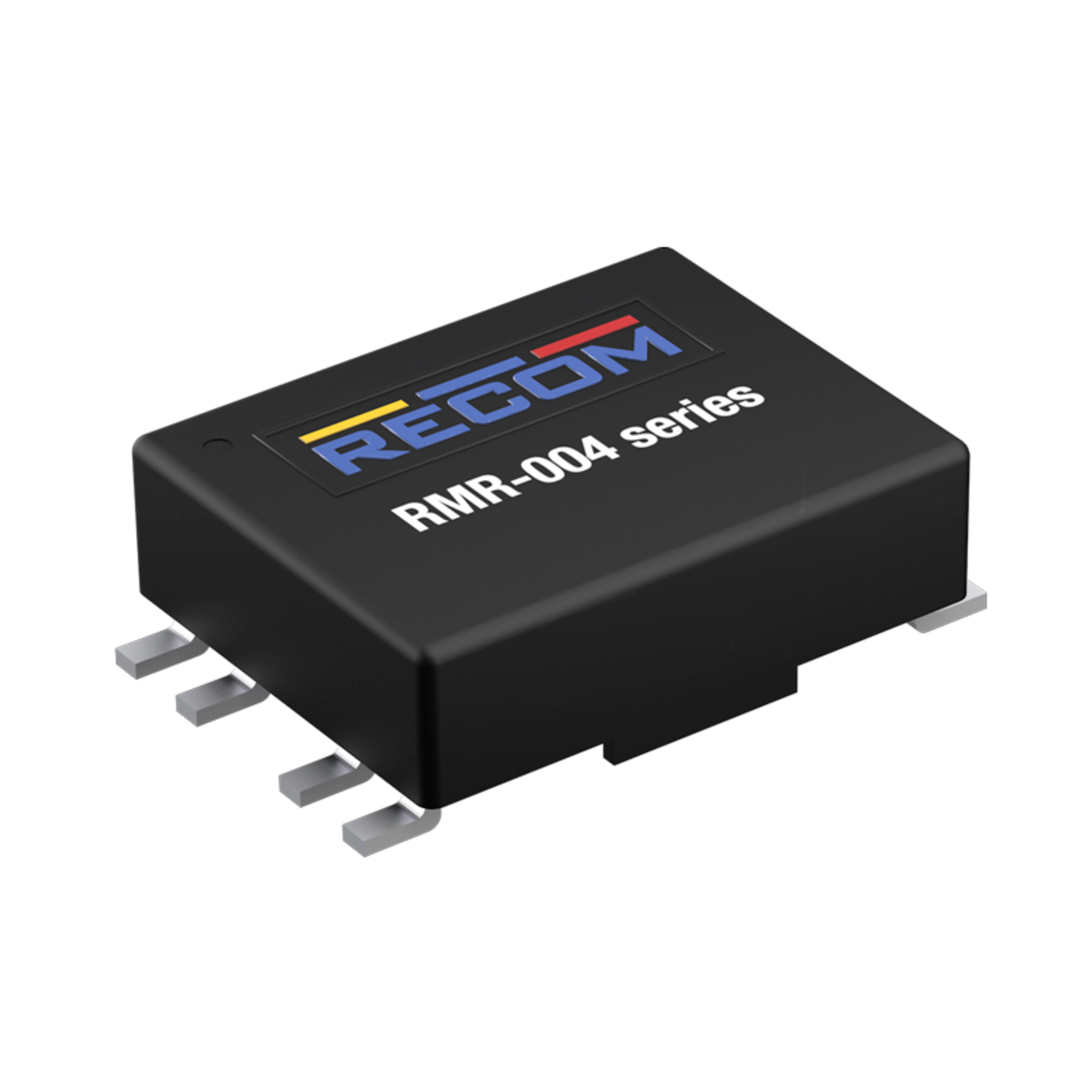

RMR-004-CAAS-R
Recom Switching transformer Full-Bridge 1:1:1.03:1.03 0,519mH
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
Here you will find suitable driver and rectifier controller ICs in the range Special Power Management. - Design
- Full-Bridge
- Transmission ratio
- 1:1:1.03:1.03
- Primary Voltage
- 12 V
- Secondary Voltage
- 12 V
- Insulation voltage
- 3 kV DC
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 12.6 mm
- Dimension: Width
- 8.5 mm
- Dimension: Height
- 3.75 mm
- Weight
- 0.51 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Inductance
- 0,519 mH
- Primary DC resistance
- 0.5 Ohm
- Secondary DC resistance
- 0.54 Ohm
- Number of inputs
- 2
- Primary Voltage
- 12 V
- Number of outputs
- 2
- Secondary Voltage
- 12 V
- Secondary Current
- 83 mA
- ∫Udt
- 34 V/µs
- Insulation voltage
- 3 kV DC
